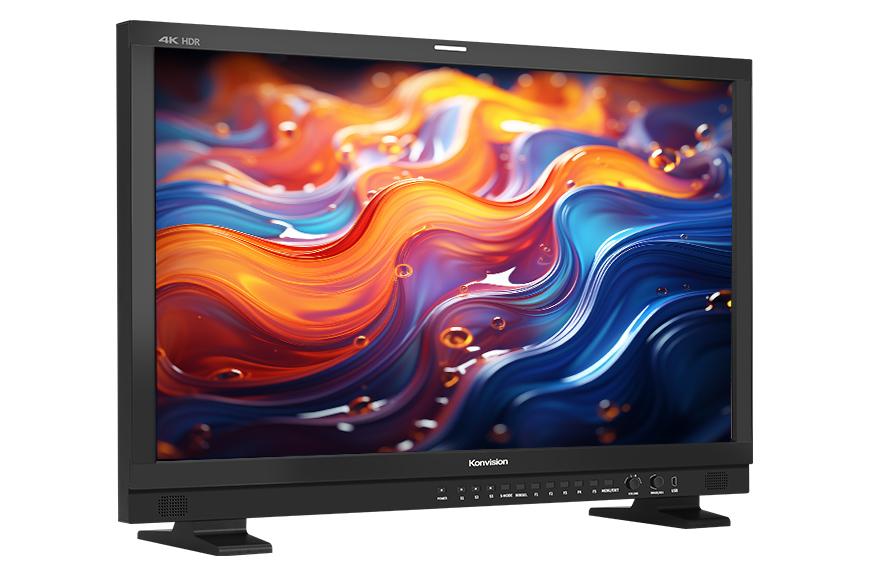

Konvision KUM-2410H-IP25G 24-inch 4K HDR ST2110 IP broadcast monitor with 1200-nit brightness and 12G-SDI connectivity

Konvision 24" 4K HDR ST2110 IP Monitor

by Konvision
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: KUM-2410H-IP25G

  • Overview
  • Features
  • Specifications

The Konvision KUM-2410H-IP25G is a 24-inch 4K HDR professional IP monitor built for broadcast, live production, post, and high-end studio workflows. With native 3840 x 2160 resolution, 1200-nit brightness, wide color reproduction, and advanced HDR monitoring tools, it delivers the precision needed for demanding UHD production environments. Its ST2110 IP support, dual SFP28 fiber interfaces, 12G-SDI connectivity, and HDMI 2.0 input make it a flexible solution for modern hybrid SDI/IP infrastructures. It also includes powerful monitoring and analysis features such as waveform, vectorscope, histogram, HDR area display, false color, zebra, focus assist, quad-view, 3D LUT calibration, and HDR-to-SDR conversion, making it well suited for signal evaluation, shading, production monitoring, and color-critical work.

The Key Features of the Konvision KUM-2410H-IP25G:

  • 24-inch UHD 4K professional HDR monitor with native 3840 x 2160 resolution
  • High-brightness 1200 cd/m² display for demanding broadcast and production environments
  • ST2110 IP workflow support with dual SFP28 fiber input interfaces
  • Supports ST2110-10/20/30/40 transmission for modern IP production systems
  • Optional ST2022-7 hitless failover support for added redundancy
  • 12-bit video processing for accurate image reproduction and signal evaluation
  • 2 x 12G-SDI and 2 x 3G-SDI input/loop-out connections
  • 1 x HDMI 2.0 input and output for 4K workflow integration
  • ST2110 IP to 12G-SDI conversion output for flexible signal routing
  • Supports 4K single-link and quad-link workflows including SQD and 2SI
  • Compatible with Rec.709, EBU, DCI-P3, DCI-P3 D65, and Rec.2020 color spaces
  • HDR support for HLG and ST2084 PQ monitoring
  • 3D LUT calibration support compatible with ColourSpace and Calman

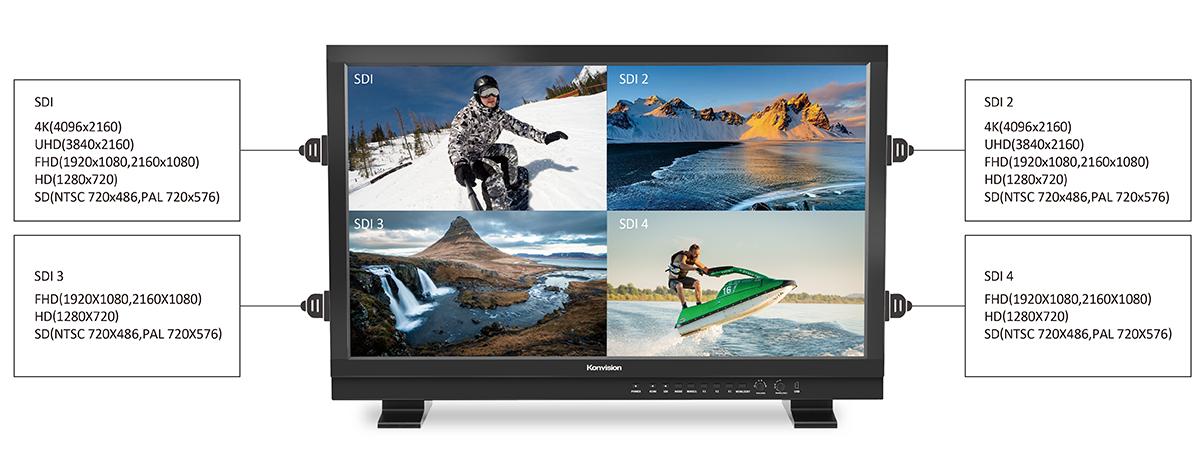

  • Quad-view mode with mixed signal formats, resolutions, and frame rates
  • Independent color space and EOTF settings per window in quad-view mode
  • 4K HDR to 2K SDR down-conversion with custom 3D LUT output
  • Built-in waveform, vectorscope, histogram, CIE chromaticity diagram, and CIE color volume tools
  • Includes HDR area display, HDR/SDR ratio graph, false color, zebra, focus assist, and highlight check
  • VITC/LTC timecode, UMD/IMD display, tri-color tally, and GPI remote control support
  • Dual power inputs, built-in speakers, headphone output, and aluminum alloy housing

The Detailed Specifications for the Konvision KUM-2410H-IP25G:

  • Model: KUM-2410H-IP25G
  • Display Size: 24 inches
  • Resolution: 3840 x 2160
  • Aspect Ratio: 16:9
  • Viewing Angle: 178° horizontal / 178° vertical
  • Color Depth: 1.07 billion colors (8-bit + FRC)
  • Brightness: 1200 cd/m²
  • Backlight: LED
  • Contrast Ratio: 1000:1
  • Video Processing: 12-bit
  • ST2110 IP Inputs: 2 x SFP28 fiber interfaces
  • SDI Inputs: 2 x 12G/6G/3G/HD/SD-SDI, 2 x 3G/HD/SD-SDI
  • Reference Input: 1 x BNC, genlock with black burst or tri-level sync
  • HDMI Input: 1 x HDMI 2.0
  • SDI Outputs: 2 x 12G/6G/3G/HD/SD-SDI, 2 x 3G/HD/SD-SDI
  • IP to SDI Conversion Output: ST2110 IP to 12G-SDI output on SDI1
  • HDMI Output: 1 x HDMI 2.0
  • Supported IP Standards: ST2110-10, ST2110-20, ST2110-30, ST2110-40
  • Optional IP Redundancy: ST2022-7 hitless failover
  • Supported 4K Formats: Up to 4096 x 2160 at 60p via single-link 12G-SDI
  • Quad-Link Support: SQD and 2SI
  • Color Spaces: Rec.709, EBU, DCI-P3, DCI-P3 D65, Rec.2020
  • Gamma Options: 2.0, 2.2, 2.4, 2.6
  • HDR Support: HLG and ST2084 PQ
  • Calibration: 3D LUT calibration via USB/Ethernet
  • Analysis Tools: Waveform, vectorscope, histogram, CIE chromaticity diagram, CIE color volume
  • Monitoring Tools: False color, zebra, focus assist, blue only, mono only, highlight check, darkness check
  • Display Tools: Safe area, center marker, aspect markers, mirror, rotation, zoom, freeze, overscan, H/V delay
  • Audio Input: 16-channel embedded SDI audio, 2-channel HDMI audio
  • Audio Output: 3.5 mm headphone jack
  • Built-in Speakers: 2 x 3.0W speakers
  • Audio Metering: Vertical/horizontal, transparent/opaque display
  • Additional Functions: Payload ID recognition, VPID reading, timecode, UMD/IMD, tally, scene presets, shortcut keys
  • Remote Control: GPI remote control and web-based remote management GUI
  • Operating Temperature: -10°C to 50°C
  • Input Voltage: DC 12V and AC 100-240V, 50/60Hz
  • Power Consumption: 110W
  • VESA Mount: MIS-D 100 x 100 mm
  • Net Weight: Approx. 9.1 kg
  • Included Accessories: Power cord and desktop stand
