Konvision KUM-2410H-NDI 24-inch 4K HDR NDI monitor with 12G-SDI, HDMI 2.0, and high-brightness broadcast display

Konvision 24" 4K HDR NDI Monitor

by Konvision
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: KUM-2410H-NDI

  • Overview
  • Features
  • Specifications

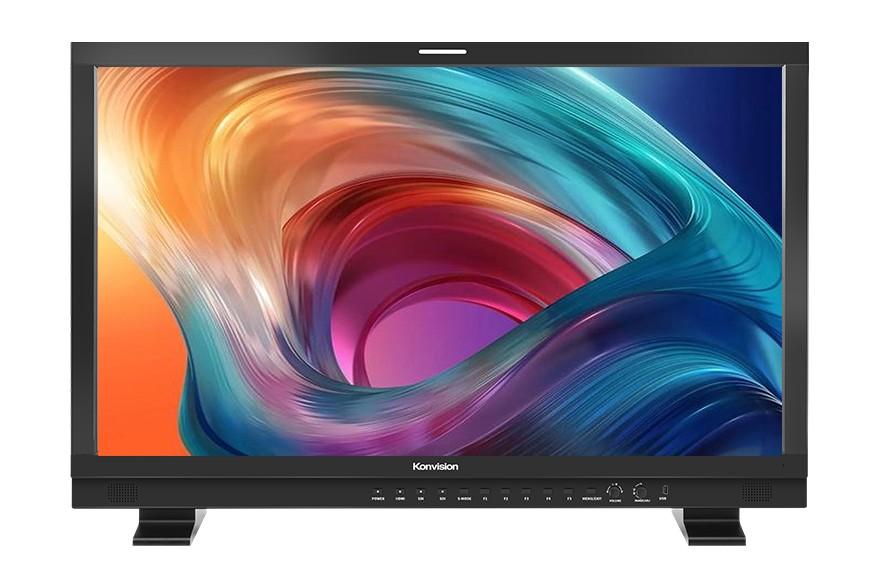

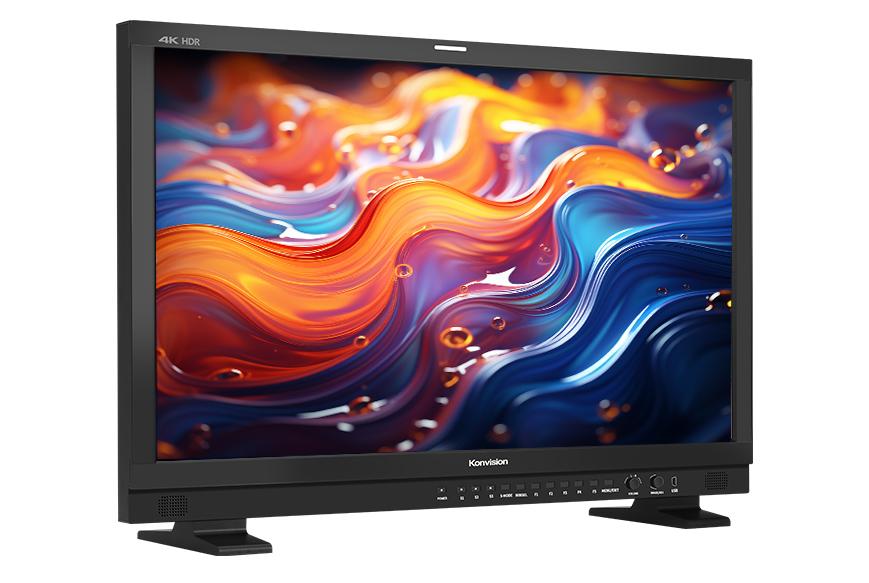

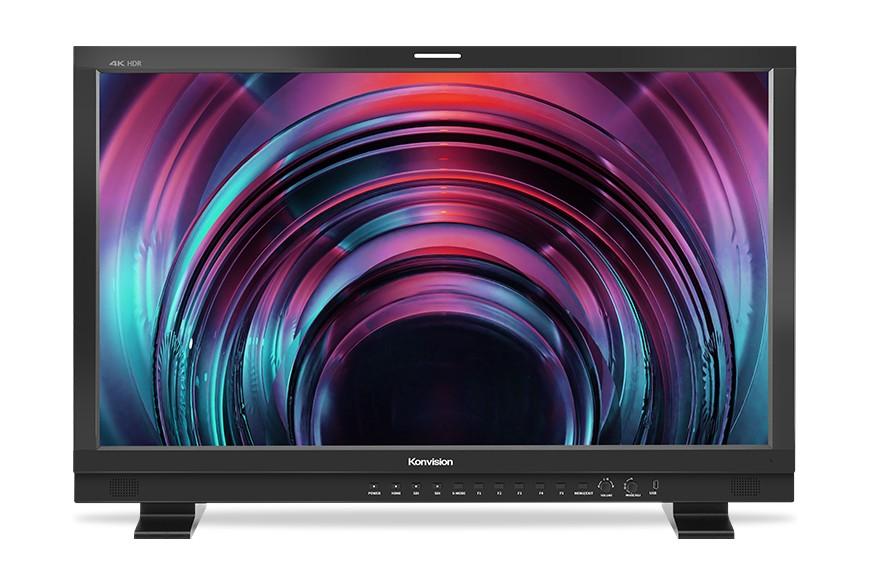

The Konvision KUM-2410H-NDI is a 24-inch 4K HDR professional monitor designed for broadcast, live production, post-production, and IP-based workflows. It combines native 3840 x 2160 resolution, high-brightness HDR monitoring, and support for Full NDI and NDI|HX to give production teams a flexible solution for UHD signal acquisition, conversion, and monitoring. With 12G-SDI, 3G-SDI, HDMI 2.0, and high-bandwidth NDI input, it fits easily into hybrid SDI/IP environments while supporting bidirectional SDI and NDI conversion. Advanced monitoring tools including waveform, vectorscope, histogram, HDR area display, false color, focus assist, quad-view, and 3D LUT import make it well suited for shading, signal evaluation, color-critical monitoring, and live production control.

The Key Features of the Konvision KUM-2410H-NDI:

  • 24-inch UHD 4K HDR professional monitor with native 3840 x 2160 resolution
  • High-brightness display for broadcast, production, and post workflows
  • Supports Full NDI and NDI|HX, including NDI|HX2 and NDI|HX3
  • High-bandwidth 4K NDI IP input via RJ45 network interface
  • Bidirectional SDI to NDI and NDI to SDI conversion support
  • NDI Discovery Service support for fast source selection across networks
  • 2 x 12G-SDI inputs and outputs with auto-detected 6G/3G/HD/SD-SDI compatibility
  • 2 x 3G-SDI inputs and outputs with HD/SD-SDI compatibility
  • 1 x HDMI 2.0 input for 4K monitoring workflows
  • Supports 4K single-link 12G-SDI signals up to 4096 x 2160 at 60p
  • Supports 2SI and SQD 4K signal formats
  • HDR support with PQ and HLG monitoring modes
  • Supports multiple color spaces including Rec.709, EBU, DCI-P3, DCI-P3 D65, and Rec.2020
  • Camera log support including Sony S-Log, Canon C-Log, ARRI LogC, and Panasonic V-Log

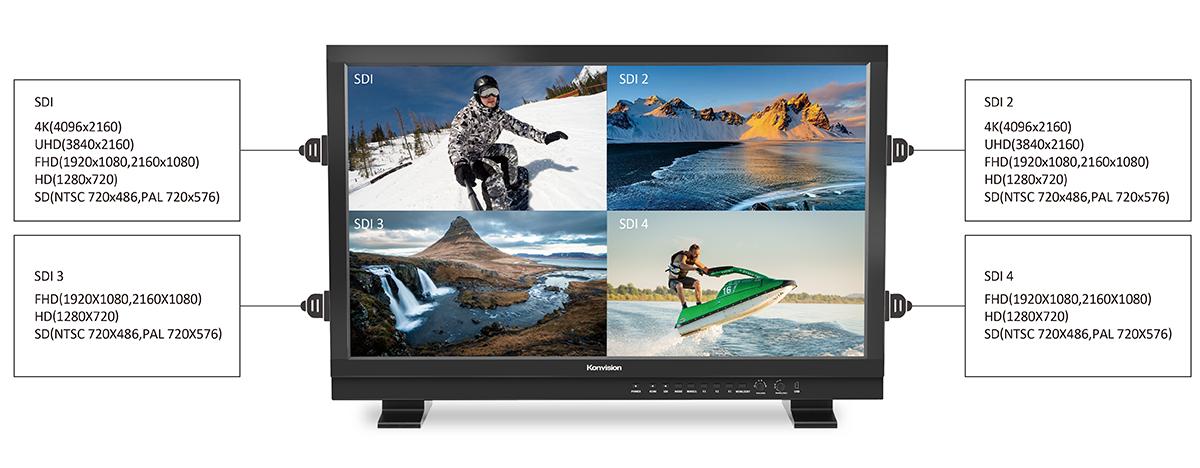

  • Quad-view mode with mixed input formats and frame rates
  • Independent color space and EOTF settings for each quad-view window
  • Built-in waveform, vectorscope, histogram, HDR area display, and marker tools
  • False color, zebra, focus assist, blue only, mono only, and darkness check functions
  • Supports 3D LUT import for custom monitoring and calibration workflows
  • Built-in speakers, headphone output, GPI control, UMD display, and dual power input

The Detailed Specifications for the Konvision KUM-2410H-NDI:

  • Model: KUM-2410H-NDI
  • Display Size: 24 inches
  • Resolution: 3840 x 2160
  • Aspect Ratio: 16:9
  • Viewing Angle: 178° horizontal / 178° vertical
  • Color Depth: 1.07 billion colors
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • NDI Input: 1 x RJ45 high-bitrate 4K NDI IP input
  • NDI Standards Supported: Full NDI, NDI|HX, NDI|HX2, NDI|HX3
  • SDI Inputs: 2 x 12G-SDI, 2 x 3G-SDI
  • HDMI Input: 1 x HDMI 2.0
  • SDI Outputs: 2 x 12G-SDI, 2 x 3G-SDI
  • NDI to SDI Output: 1 x NDI to 12G-SDI output
  • Supported 4K Formats: Up to 4096 x 2160 at 60p via single-link 12G-SDI
  • Supported 4K Structures: 2SI and SQD
  • Color Spaces: Rec.709, EBU, DCI-P3, DCI-P3 D65, Rec.2020, Bypass
  • Gamma Options: 2.0, 2.2, 2.4, 2.6
  • HDR Support: PQ (ST2084) and HLG
  • Camera Log Support: S-Log, S-Log2, S-Log3, C-Log, C-Log2, C-Log3, LogC, V-Log
  • Analysis Tools: Waveform, vectorscope, histogram, HDR area display
  • Monitoring Tools: False color, zebra, focus assist, blue only, mono only, video freeze, darkness check
  • Display Modes: 4K mode, quad-split mode, FHD single-picture mode
  • 3D LUT Support: User-importable 3D LUT files
  • Audio Input: 32-channel embedded SDI audio, 2-channel HDMI embedded audio
  • Audio Metering: Vertical and horizontal audio level meters
  • Headphone Output: 3.5 mm headset jack
  • Built-in Speakers: 2 x 2.5W
  • Control and Utility Features: GPI, UMD display, closed caption support, firmware upgrade via USB/Ethernet
  • Input Voltage: DC 12V and AC 100-240V, 50/60Hz
  • Power Consumption: 117W
  • VESA Mount: MIS-D 100 x 100 mm
  • Included Accessories: Power cord and desktop stand
