Konvision KXM-3210M-IP25G 32-inch 4K HDR ST2110 IP monitor with Mini-LED, 1500-nit brightness and 12G-SDI connectivity

Konvision 32" 4K HDR ST2110 IP Monitor

by Konvision
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: KXM-3210M-IP25G

  • Overview
  • Features
  • Specifications

The Konvision KXM-3210M-IP25G is a 32-inch 4K HDR professional reference monitor designed for high-end broadcast, live production, and color-critical post workflows. Featuring a Mini-LED backlight with advanced local dimming, 1500-nit peak brightness, and ultra-high contrast, it delivers exceptional image accuracy and dynamic range for HDR production environments. Native 3840 x 2160 resolution and wide color gamut support ensure precise color reproduction across Rec.709, DCI-P3, and Rec.2020 workflows.

Built for modern IP-based infrastructures, the monitor supports SMPTE ST2110 standards with dual SFP28 fiber interfaces, enabling seamless integration into IP production systems. It also supports 12G-SDI, 3G-SDI, and HDMI 2.0 connectivity, along with IP-to-SDI conversion, making it ideal for hybrid SDI/IP workflows. Advanced monitoring tools including waveform, vectorscope, HDR analysis, quad-view display, and 3D LUT calibration provide the flexibility required for shading, signal evaluation, and mastering applications.

The Key Features of the Konvision KXM-3210M-IP25G:

  • 32-inch UHD 4K HDR professional reference monitor with native 3840 x 2160 resolution
  • Mini-LED backlight with 2304-zone local dimming for superior contrast and uniformity
  • High brightness up to 1500 cd/m² for accurate HDR monitoring
  • Ultra-high contrast ratio up to 1,000,000:1 for deep blacks and highlight detail
  • Wide color gamut with support for Rec.709, EBU, DCI-P3, DCI-P3 D65, and Rec.2020
  • Full SMPTE ST2110 compliance including ST2110-10/20/30/40
  • Dual SFP28 fiber interfaces for high-bandwidth ST2110 IP signal input
  • Optional ST2022-7 hitless failover support for redundant IP workflows
  • IP to 12G-SDI conversion output for flexible signal routing
  • 2 x 12G-SDI and 2 x 3G-SDI inputs and loop outputs
  • Supports 4K single-link and quad-link workflows including SQD and 2SI
  • HDMI 2.0 input and output for 4K monitoring integration
  • 12-bit video processing for high-precision image reproduction
  • HDR support for HLG and ST2084 PQ with multiple EOTF options
  • 3D LUT calibration compatible with ColourSpace and Calman

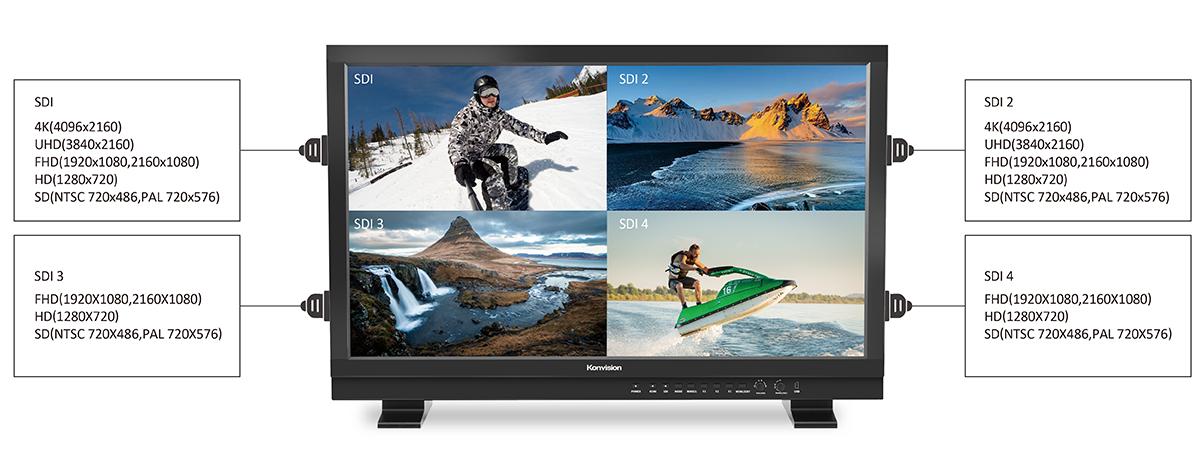

  • Quad-view mode with mixed formats, resolutions, and frame rates
  • Independent color space and HDR settings per quad-view window
  • Built-in waveform, vectorscope, histogram, and HDR analysis tools
  • Includes false color, zebra, focus assist, highlight check, and darkness check tools
  • Supports VPID and payload ID recognition for automatic signal detection
  • Genlock support with black burst or tri-level sync
  • Aluminum alloy housing with dual power inputs and built-in speakers

The Detailed Specifications for the Konvision KXM-3210M-IP25G:

  • Model: KXM-3210M-IP25G
  • Display Size: 31.5 inches (32" class)
  • Resolution: 3840 x 2160
  • Aspect Ratio: 16:9
  • Viewing Angle: 178° horizontal / 178° vertical
  • Panel Type: IPS LCD with Mini-LED backlight
  • Local Dimming: 2304 zones
  • Brightness: Up to 1500 cd/m²
  • Contrast Ratio: Up to 1,000,000:1
  • Color Gamut: ≥80% BT.2020, up to 98% DCI-P3
  • Video Processing: 12-bit
  • ST2110 IP Inputs: 2 x SFP28 fiber interfaces
  • Supported IP Standards: ST2110-10, ST2110-20, ST2110-30, ST2110-40
  • Optional IP Redundancy: ST2022-7 hitless failover
  • SDI Inputs: 2 x 12G/6G/3G/HD/SD-SDI, 2 x 3G/HD/SD-SDI
  • SDI Outputs: 2 x 12G/6G/3G/HD/SD-SDI, 2 x 3G/HD/SD-SDI
  • IP to SDI Output: ST2110 IP to 12G-SDI output
  • HDMI Input: 1 x HDMI 2.0
  • HDMI Output: 1 x HDMI 2.0
  • Supported 4K Formats: Up to 4096 x 2160 at 60p
  • Quad-Link Support: SQD and 2SI
  • Color Spaces: Rec.709, EBU, DCI-P3, DCI-P3 D65, Rec.2020
  • Gamma Options: 2.0, 2.2, 2.4, 2.6
  • HDR Support: HLG and ST2084 PQ
  • Calibration: 3D LUT via USB/Ethernet
  • Analysis Tools: Waveform, vectorscope, histogram, CIE chromaticity diagram, HDR tools
  • Monitoring Tools: False color, zebra, focus assist, highlight check, darkness check
  • Display Functions: Quad-view, markers, safe area, zoom, freeze, overscan, H/V delay
  • Audio Input: 16-channel SDI embedded audio, HDMI audio
  • Audio Output: 3.5 mm headphone jack
  • Built-in Speakers: 2 x 3W
  • Control: GPI, RS422, Ethernet control interface
  • Power Supply: AC 100-240V, 50/60Hz and DC input
  • Power Consumption: ≤200W
  • Mounting: VESA MIS-D (100 x 100 mm / 200 x 200 mm)
  • Net Weight: Approx. 12.1 kg
  • Operating Temperature: -10°C to 50°C
  • Included Accessories: Power cord and desktop stand

No video available for this product.
