Lectrosonics - M2C-L Active Antenna Combiner (470 to 692 MHz) (M2C-L)
Original price
$6,125.00
-
Original price
$6,125.00
Original price
$6,125.00
$6,125.00
-
$6,125.00
Current price
$6,125.00
| /

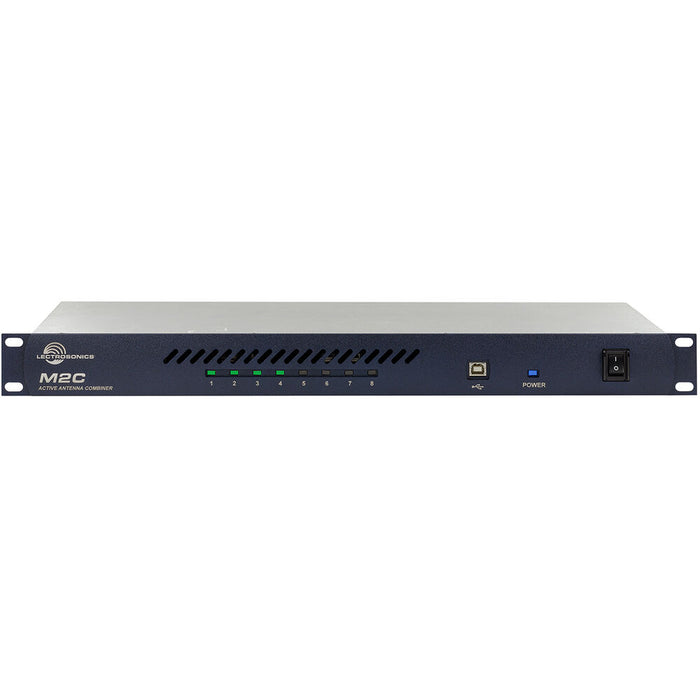

The Lectrosonics M2C-L Active Antenna Combiner is engineered for seamless integration into professional wireless in-ear monitor (IEM) systems. Designed for the 470 to 692 MHz frequency range, it combines up to eight IEM transmitter signals into a single antenna output, significantly reducing RF clutter and intermodulation issues. With its high isolation between channels and low noise amplification, the M2C-L enhances signal reliability and system performance. Compact and rugged, it’s ideal for touring, broadcast, and installed applications requiring consistent RF management.
The Key Features of the Lectrosonics M2C-L Active Antenna Combiner:
- Combines up to 8 IEM transmitter outputs into one antenna
- Wideband operation from 470 to 692 MHz
- Low-noise amplifier maintains signal integrity
- High isolation minimizes intermodulation distortion
- Front panel power switch with LED indicators
- Front-to-back airflow for rack cooling compatibility
- Standard 1RU rackmount chassis
- Durable, professional-grade construction
The Detailed Specifications for the Lectrosonics M2C-L Active Antenna Combiner:
- Frequency Range: 470 to 692 MHz
- Number of Input Channels: 8
- RF Input Connector Type: BNC (female)
- RF Output Connector Type: BNC (female)
- Input Impedance: 50 Ohms
- Output Impedance: 50 Ohms
- Isolation Between Channels: ≥ 35 dB
- Noise Figure: < 2 dB
- Power Requirements: 100–240 VAC, 50/60 Hz
- Cooling: Forced-air, front-to-back
- Chassis: 1RU rackmount, steel construction
- Dimensions: 19 x 1.75 x 12 inches (W x H x D)
- Weight: Approximately 7 lbs
