Lectrosonics - SMDWB Wideband Beltpack Transmitter (B1: 537 to 614 MHz) (SMDWB-B1)
Original price
$2,866.00
-
Original price
$2,866.00
Original price
$2,866.00
$2,866.00
-
$2,866.00
Current price
$2,866.00
| /

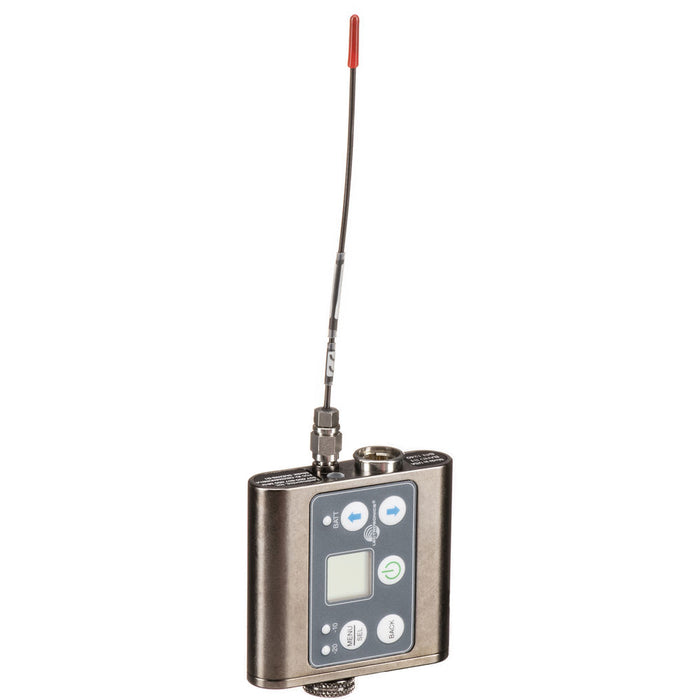

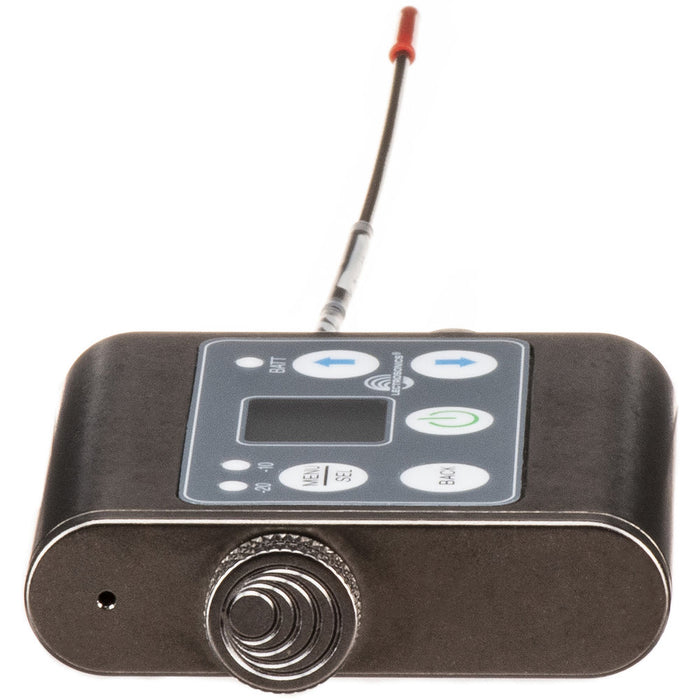

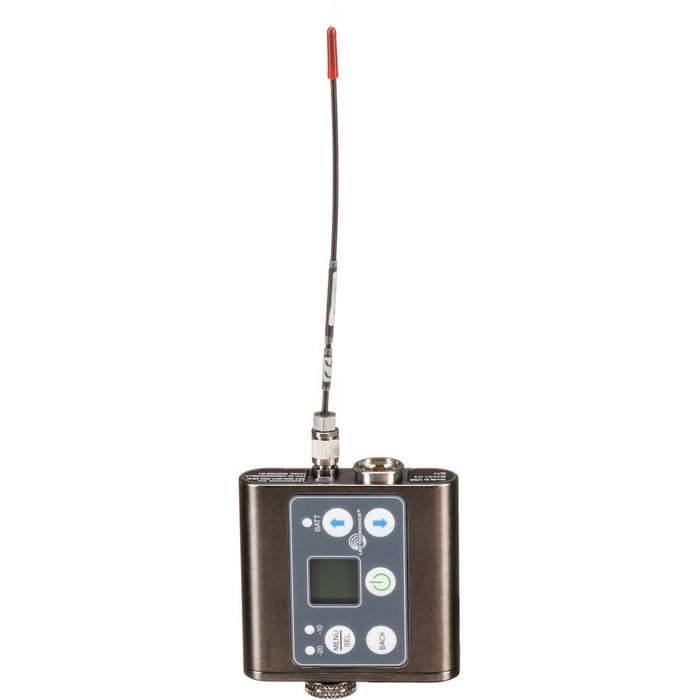

The Lectrosonics SMDWB-B1 is a professional-grade wideband beltpack transmitter designed for demanding wireless audio applications. Operating in the B1 frequency band (537 to 614 MHz), it delivers robust and flexible transmission for broadcast, film, and stage use. Its compact form factor houses advanced digital hybrid wireless technology, offering pristine audio quality and minimal latency. With support for dual battery operation and a backlit LCD, the SMDWB-B1 ensures ease of use and extended performance time in challenging environments. Engineered for durability and optimized for real-world workflows, this transmitter is a reliable choice for audio professionals who demand performance and dependability.
The Key Features of the Lectrosonics SMDWB-B1:
- 75 MHz tuning range (537 to 614 MHz)
- Digital Hybrid Wireless® technology for superior audio clarity

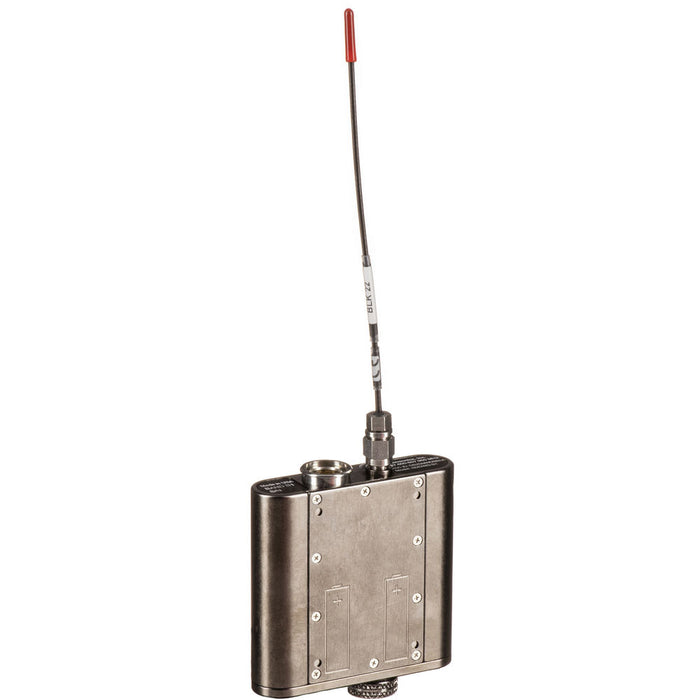

- Dual battery compartments for extended operating time
- Durable, lightweight metal housing
- Backlit LCD interface for easy configuration in low light
- Selectable output power: 25, 50, or 100 mW
- DSP-controlled audio limiting and low-frequency roll-off
- IR sync port for fast frequency pairing with receivers
- Microphone input with servo bias for wide mic compatibility
The Detailed Specifications for the Lectrosonics SMDWB-B1:
- Frequency Range: 537 to 614 MHz (B1 band)
- Tuning Bandwidth: 75 MHz
- RF Output Power: Selectable 25, 50, or 100 mW

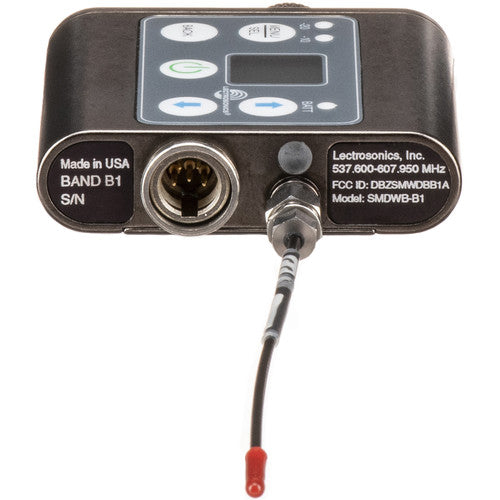

- Audio Input: Servo bias mic input with locking 5-pin connector
- Audio Frequency Response: 40 Hz to 20 kHz ±1 dB
- Input Dynamic Range: 110 dB, A-weighted
- Modulation: Digital Hybrid Wireless®
- Display: Backlit LCD for menu navigation and status
- Battery Life: Up to 8 hours with dual AA lithium batteries
- Housing: Machined aluminum with durable finish
- Dimensions: 2.4 x 2.1 x 0.75 inches (H x W x D)
- Weight: 5.5 oz (with batteries)
- Operating Temperature: -20°C to +50°C
