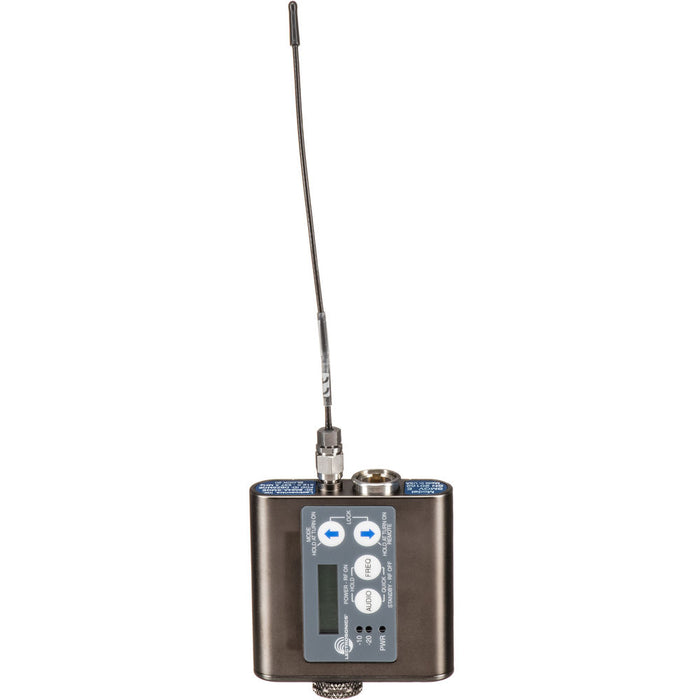

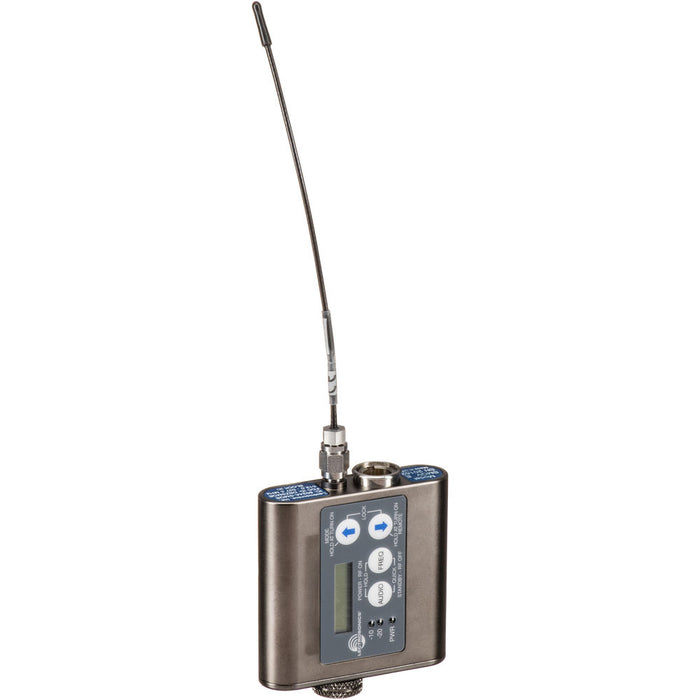

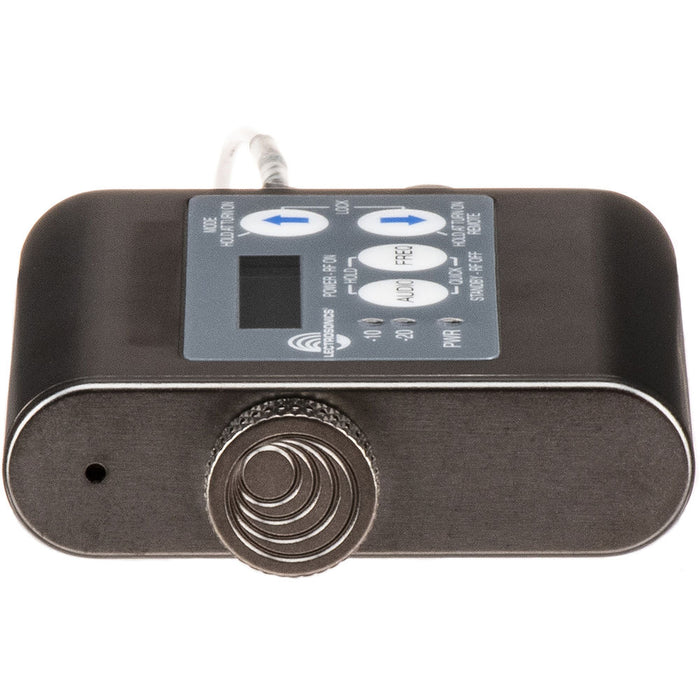

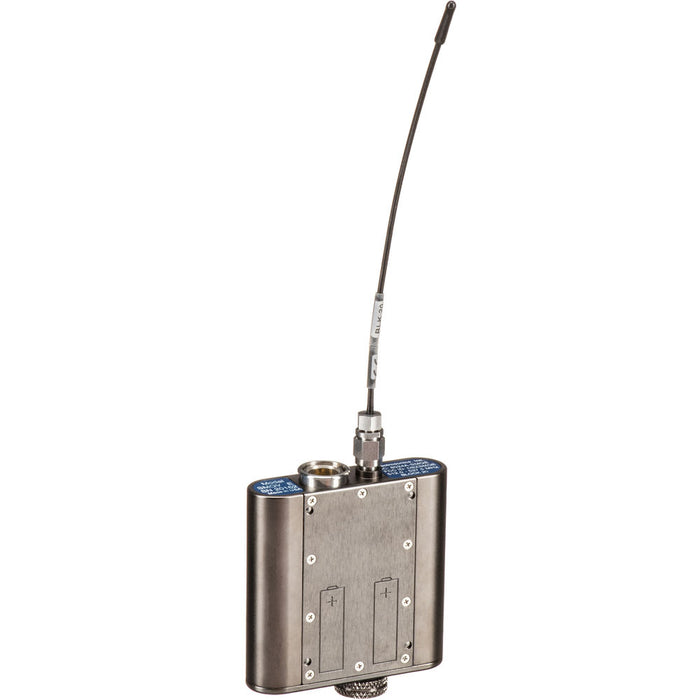

Lectrosonics - SMQV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz) (SMQV-19)
Original price
$2,665.00
-
Original price
$2,665.00
Original price
$2,665.00
$2,665.00
-
$2,665.00
Current price
$2,665.00
| /
The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz) is a professional-grade UHF transmitter designed for applications demanding both discretion and durability. Engineered for film, television, and stage production, the SMQV offers exceptional RF performance in a compact, rugged housing. It features a dual battery design for extended operational time, a wide tuning range within Block 19, and compatibility with a broad selection of lavalier microphones. With its backlit LCD interface and full audio gain control, the SMQV provides reliable and precise audio transmission in the most demanding environments.
The Key Features of the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz):
- Operates in Block 19 (486 to 511 MHz) UHF frequency range
- Super miniature, rugged aluminum housing for low-profile use
- Dual AA battery power for extended run time (up to 14 hours)
- 256 synthesized UHF frequencies with 100 mW RF output power
- Wide input dynamic range with DSP-controlled audio limiting
- Backlit LCD screen with intuitive menu navigation
- Servo bias input for compatibility with a wide variety of microphones
- Firmware updateable via USB
- Ideal for broadcast, film, and theatrical applications
The Detailed Specifications for the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz):
- Frequency Range: 486.400 – 511.900 MHz (Block 19)
- RF Output Power: 50 or 100 mW (selectable)
- Audio Frequency Response: 35 Hz to 20 kHz ±1 dB
- Input Dynamic Range: 44 dB (with DSP-controlled limiter)
- Input Impedance: 2k ohms, servo-balanced
- Power Requirements: Two AA batteries (alkaline, lithium, or NiMH)
- Battery Life: Up to 14 hours (with lithium batteries at 50 mW)
- Display: Backlit LCD with menu-driven interface
- Dimensions: 2.3 x 2.3 x 0.75 inches (without batteries)
- Weight: 5.5 oz (with batteries)
- Housing: Machined aluminum with hard-anodized finish
- Microphone Input: LEMO 3-pin connector with servo bias
- Modulation Type: Digital Hybrid Wireless®
- Temperature Range: -20°C to +50°C
