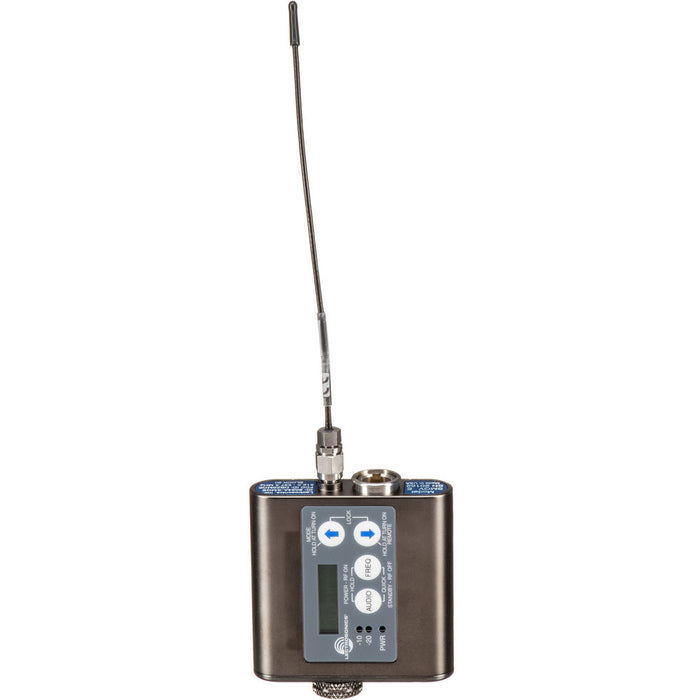

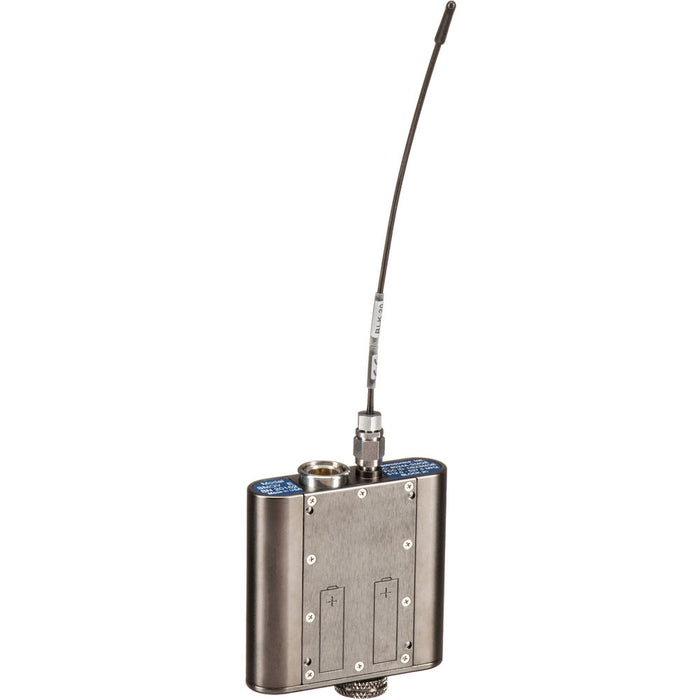

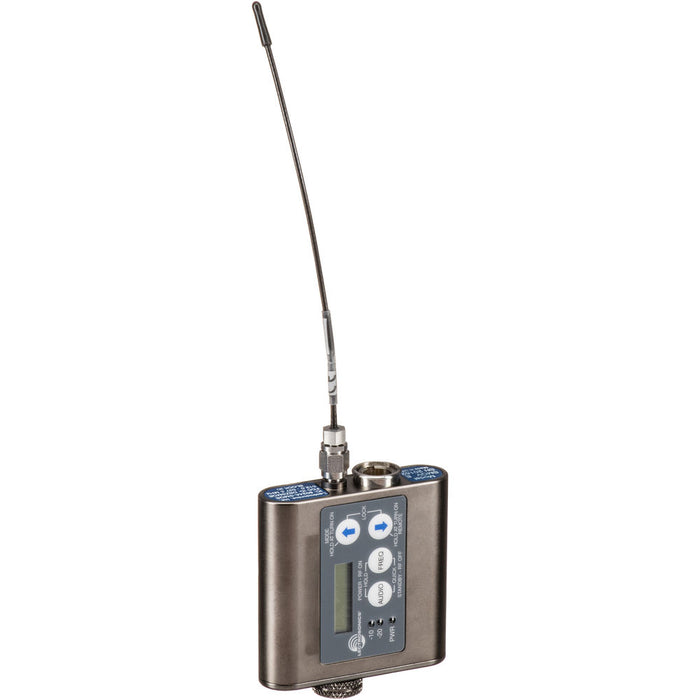

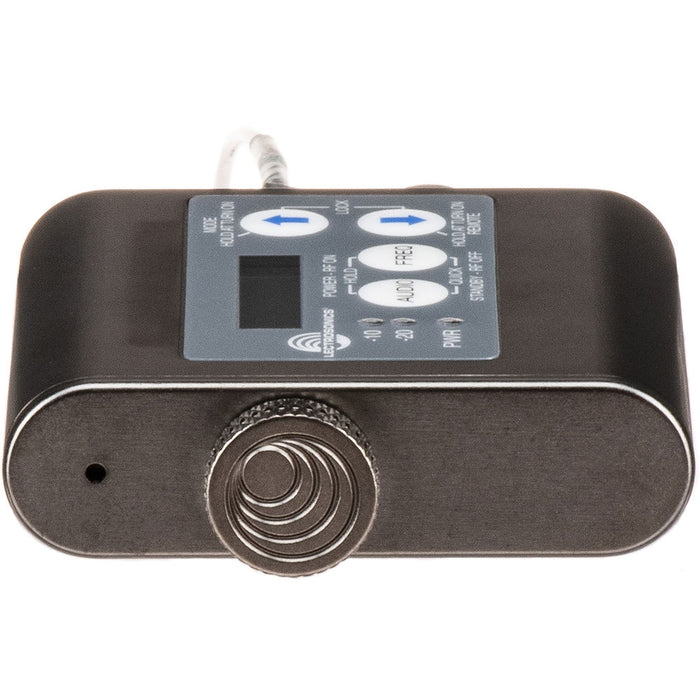

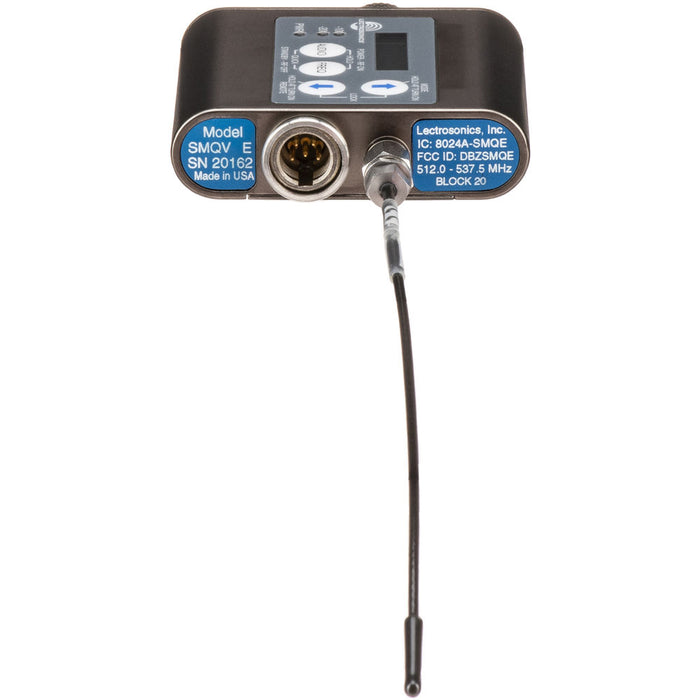

Lectrosonics - SMQV Super Miniature Wireless Microphone Transmitter (Block 20: 512 to 537 MHz) (SMQV-20)
Original price
$2,665.00
-
Original price
$2,665.00
Original price
$2,665.00
$2,665.00
-
$2,665.00
Current price
$2,665.00
| /
The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 20: 512 to 537 MHz) is engineered for professional broadcast, film, and live performance applications requiring ultra-reliable wireless audio transmission in a compact form. This rugged, lightweight transmitter is built with a machined aluminum housing and is water-resistant, making it ideal for use in demanding environments. The SMQV offers adjustable RF power output, a wide frequency tuning range within Block 20, and features dual battery slots for extended operation. Its compatibility with Lectrosonics Digital Hybrid Wireless® receivers ensures studio-grade sound and versatility in the field.
The Key Features of the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 20: 512 to 537 MHz):
- Ultra-compact and rugged aluminum housing
- Operates in Block 20 (512 to 537 MHz)
- Digital Hybrid Wireless® for superior audio quality
- Selectable RF output power: 50, 100, or 250 mW
- Dual AA battery slots for extended run time
- Water-resistant design for challenging environments
- Wide input gain range with adjustable settings
- Backlit LCD interface for easy configuration
- Locking TA5M audio input connector
- Compatible with a variety of lavalier microphones
The Detailed Specifications for the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 20: 512 to 537 MHz):
- Frequency Range: Block 20 (512 to 537 MHz)
- RF Output Power: 50, 100, or 250 mW (selectable)
- Audio Input: TA5M connector, mic or line level
- Input Impedance: 2.67 kOhms (mic), 1 MOhm (line)
- Gain Range: Adjustable in 1 dB steps, 44 dB total range
- Audio Performance: 20 Hz to 20 kHz frequency response
- Battery Type: Two AA lithium, alkaline, or NiMH
- Battery Life: Up to 14 hours (depending on power and battery type)
- Dimensions: 2.3 x 2.8 x 0.75 inches (58 x 71 x 19 mm)
- Weight: 5.5 oz (156 g) with lithium batteries
- Housing: Machined aluminum with weather-resistant seals
- Display: Backlit LCD with menu navigation
