Lectrosonics - SMQV Super Miniature Wireless Microphone Transmitter (Block 21: 537 to 5637 MHz) (SMQV-21)
Original price
$2,665.00
-
Original price
$2,665.00
Original price
$2,665.00
$2,665.00
-
$2,665.00
Current price
$2,665.00
| /
The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 21: 537 to 563 MHz) delivers professional-grade wireless audio in an incredibly compact and rugged package. Designed for film, television, and live production environments, the SMQV offers selectable RF power up to 250mW for exceptional signal reliability and extended range. Its tough machined aluminum housing resists moisture, dust, and impact, making it ideal for harsh conditions. With wide audio dynamic range, DSP-controlled input limiting, and compatibility with a broad range of lavalier mics, the SMQV is a top-tier solution for demanding wireless microphone applications.
The Key Features of the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 21: 537 to 563 MHz):
- Wide frequency range: 537 to 563 MHz (Block 21)
- Selectable RF power output: 50, 100, or 250 mW
- Machined aluminum housing for maximum durability

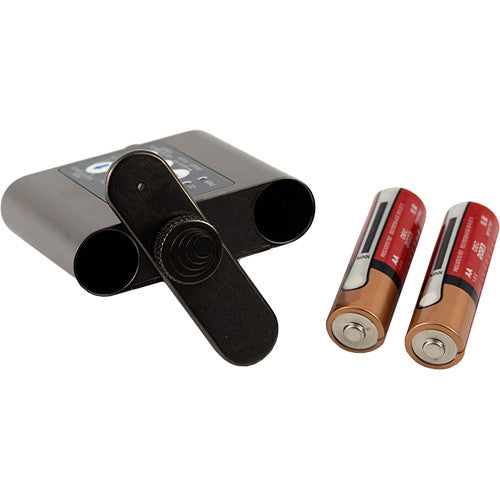

- Dual battery operation for extended runtime (2 AA batteries)
- DSP-controlled input limiter to prevent distortion
- LCD interface with intuitive menu navigation
- Compatibility with a wide range of lavalier microphones
- IR sync for fast setup with compatible receivers
- Advanced pilot tone for interference rejection
- Ideal for professional film, broadcast, and live production
The Detailed Specifications for the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 21: 537 to 563 MHz):
- Frequency Range: 537 to 563 MHz (Block 21)
- RF Power Output: Selectable 50 mW, 100 mW, or 250 mW
- Battery Type: Two AA batteries (alkaline, lithium, or NiMH)
- Battery Life: Up to 7.5 hours (depending on battery type and RF output)
- Audio Input: TA5M connector, mic or line level
- Input Impedance: 2.7 kOhm
- Signal-to-Noise Ratio: 110 dB (A-weighted)
- THD: < 0.2% (typical)
- Audio Frequency Response: 32 Hz to 20 kHz (+/- 1 dB)
- Dimensions: 2.3 x 2.2 x 0.8 inches (H x W x D)
- Weight: 5.4 oz (with batteries)
- Housing: Machined aluminum with protective finish
- Display: Backlit LCD
- Controls: Menu-driven interface with membrane switches
