Lectrosonics - SMQV Super Miniature Wireless Microphone Transmitter (Block 22: 563 to 588 MHz) (SMQV-22)
Original price
$2,665.00
-
Original price
$2,665.00
Original price
$2,665.00
$2,665.00
-
$2,665.00
Current price
$2,665.00
| /

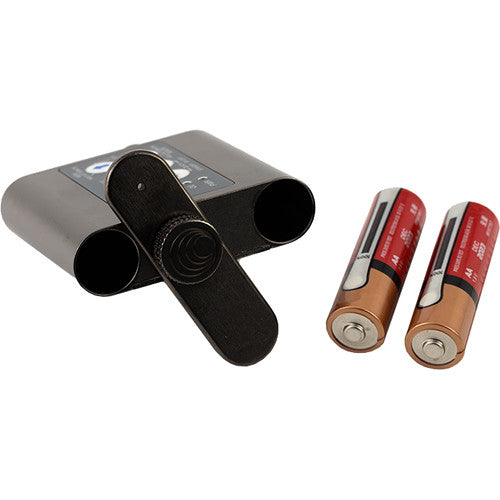

The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 22: 563 to 588 MHz) (SMQV-22 is a super miniature wireless microphone transmitter engineered for professional audio applications where compact size, durability, and reliable performance are critical. Designed for use in film, broadcast, and stage environments, the SMQV operates on Block 22 (563 to 588 MHz) and delivers pristine audio with 100 mW RF output for extended range and minimal dropouts. The aluminum housing and water-resistant design ensure exceptional durability even in challenging conditions. With dual battery capacity, programmable compatibility modes, and easy menu navigation, this transmitter is a powerful solution for demanding wireless audio needs.
The Key Features of the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 22: 563 to 588 MHz) (SMQV-22):
- Ultra-compact and rugged design for discreet placement and durability
- Operates in Block 22 frequency range: 563 to 588 MHz
- Selectable RF output power: 50 or 100 mW
- Dual AA battery power for extended run time
- Digital hybrid wireless compatibility for crystal-clear audio
- Water-resistant, machined aluminum housing
- Multi-function backlit LCD for easy setup and status monitoring
- Wide input gain adjustment range for versatile mic compatibility
- Adjustable low-frequency roll-off for optimal audio control
The Detailed Specifications for the Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block 22: 563 to 588 MHz) (SMQV-22):
- Frequency Range: Block 22 (563 to 588 MHz)
- RF Power Output: Selectable 50 mW or 100 mW
- Compatibility Modes: Digital Hybrid Wireless, along with other legacy modes
- Input Connector: TA5M for mic or line-level input
- Input Impedance: Approximately 1 kΩ
- Audio Frequency Response: 35 Hz to 20 kHz (+/-1 dB)
- Input Dynamic Range: 110 dB with DSP-controlled limiting
- Battery Type: Two AA batteries (alkaline, lithium, or NiMH)
- Battery Life: Up to 14 hours (dependent on battery type and RF power setting)
- Display: Backlit LCD with menu-driven interface
- Housing: Machined aluminum, water-resistant
- Dimensions: 2.3 x 2.8 x 0.75 inches (excluding mic connector)
- Weight: Approximately 6.5 oz with batteries
