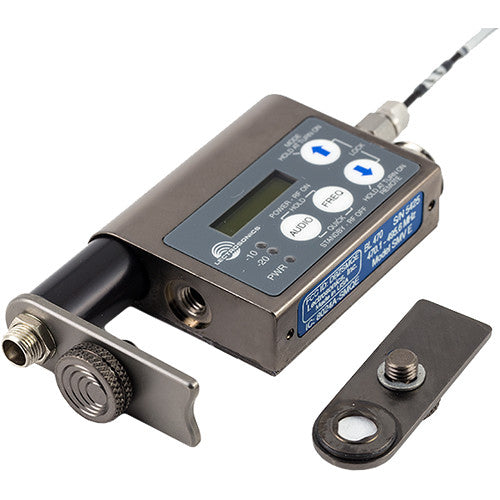

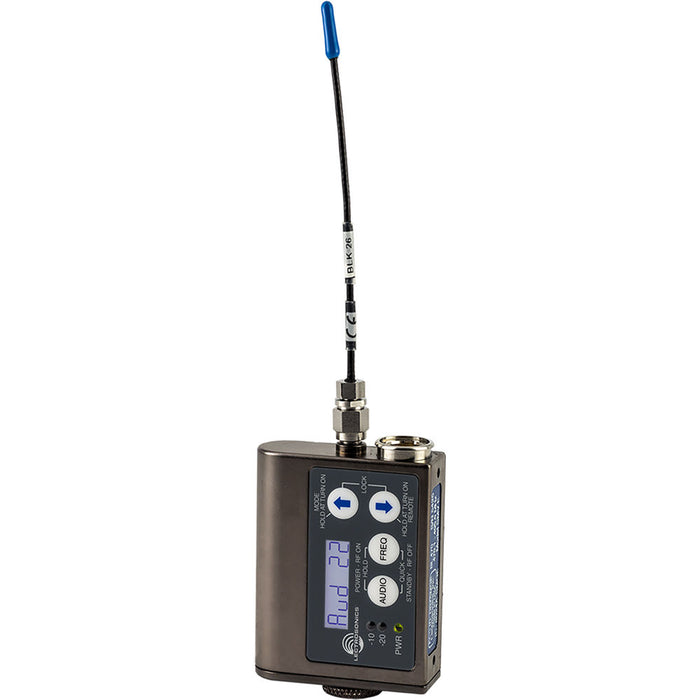

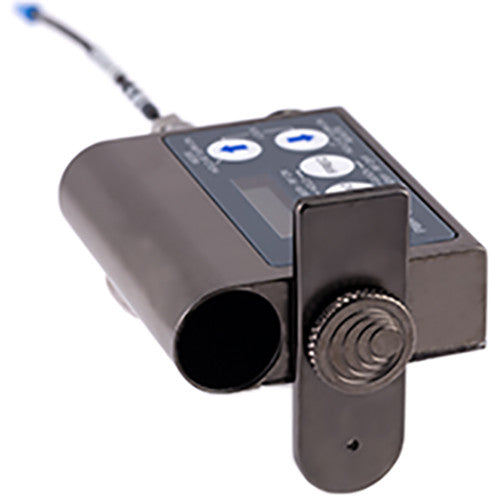

The Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz) (SMV-19) is a high-performance, ultra-compact solution for professional audio applications in film, broadcast, and live production. Operating within Block 19 (486–511 MHz), this rugged transmitter delivers a robust 100mW RF output and features Digital Hybrid Wireless® technology for crystal-clear audio transmission. Its compact aluminum housing, wide frequency tuning range, and user-friendly controls make it ideal for talent mic'ing when space and concealment are key. The SMV-19 offers selectable output power, intuitive LCD interface, and a 5-pin input for compatibility with various lavalier microphones.
The Key Features of the Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz) (SMV-19):
- Digital Hybrid Wireless® technology for superior audio clarity
- Ultra-compact, rugged machined aluminum housing
- Selectable RF output power: 50, 100 mW
- Tuning range: Block 19 (486 to 511 MHz)
- Wide input gain range for flexible microphone compatibility
- 5-pin TA5M input connector
- Backlit LCD for easy setup and monitoring
- Water-resistant membrane switches and sealed battery compartment
- Runs on a single AA lithium or rechargeable battery
- Ideal for film, TV, and stage applications
The Detailed Specifications for the Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Block 19: 486 to 511 MHz) (SMV-19):
- Operating Frequency Range: Block 19 (486.400 – 511.900 MHz)
- RF Power Output: 50 mW, 100 mW (selectable)
- Modulation Type: Digital Hybrid Wireless®
- Input Connector: TA5M (5-pin)
- Input Impedance: 2.7k Ohms
- Mic Level Input: –25 dBu to +5 dBu
- Audio Frequency Response: 35 Hz to 20 kHz (+/–1 dB)
- Signal-to-Noise Ratio: 95 dB (A-weighted)
- Controls: LCD interface with membrane buttons
- Battery Type: 1 x AA (lithium, NiMH, or alkaline)
- Battery Life: Up to 5.5 hours (lithium at 50 mW)
- Dimensions: 2.3 x 2.2 x 0.64 in (58 x 55.9 x 16.3 mm)
- Weight: 2.4 oz (68 g) with lithium battery
- Enclosure: Machined aluminum with electroless nickel plating
