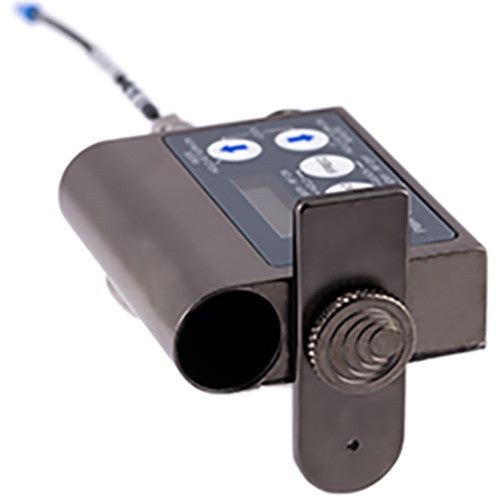

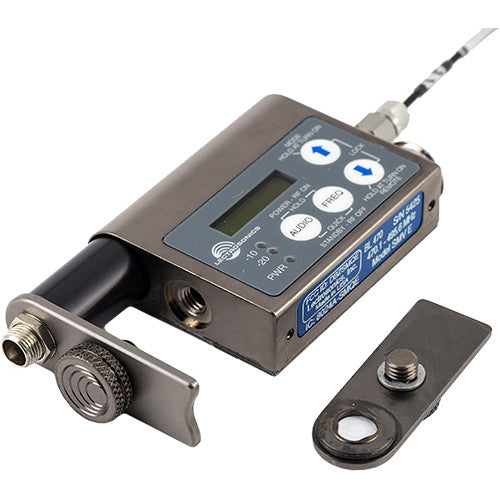

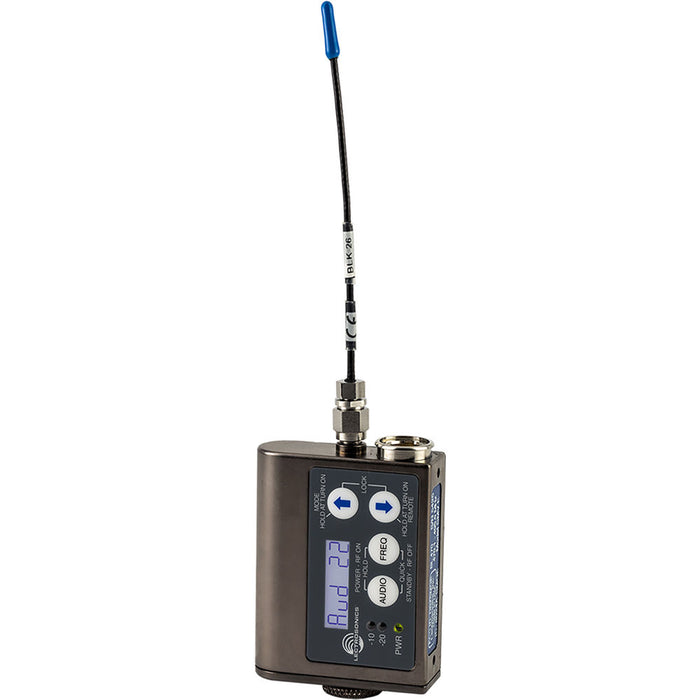

Lectrosonics - SMV Super Miniature Wireless Microphone Transmitter (Block 20: 512 to 537 MHz) (SMV-20)
Original price
$2,532.00
-
Original price
$2,532.00
Original price
$2,532.00
$2,532.00
-
$2,532.00
Current price
$2,532.00
| /
The Lectrosonics SMV-20 Super Miniature Wireless Microphone Transmitter offers professional-grade wireless audio transmission in a compact and rugged package. Operating in Block 20 (512 to 537 MHz), it’s ideal for film, broadcast, and theater applications where space and performance are critical. With a wide range of selectable output power, robust build, and DSP-controlled audio performance, the SMV-20 ensures reliable, interference-resistant transmission. Its minimal size makes it perfect for concealment in wardrobe or tight locations without sacrificing quality or durability.
The Key Features of the Lectrosonics SMV-20 Super Miniature Wireless Microphone Transmitter:
- Operates in Block 20 (512–537 MHz) frequency range
- Compact and lightweight design ideal for body-worn use
- Selectable RF power outputs: 50, 100, or 250 mW
- Digital Hybrid Wireless® for compander-free audio
- Durable aluminum housing with sealed membrane buttons
- 256 synthesized UHF frequencies for flexibility
- Backlit LCD display for easy menu navigation
- Wide compatibility with Lectrosonics receivers
- Uses AA lithium, NiMH, or alkaline batteries
- Water-resistant design for demanding environments
The Detailed Specifications for the Lectrosonics SMV-20 Super Miniature Wireless Microphone Transmitter:
- Frequency Range: Block 20 (512.0 – 537.5 MHz)
- RF Power Output: 50 mW, 100 mW, or 250 mW selectable
- Audio Input: Servo Bias TA5M connector for mic or line-level input
- Frequency Stability: ±0.002%
- Modulation Type: Digital Hybrid Wireless®
- Battery Type: 1 AA (lithium, NiMH, or alkaline)
- Battery Life: Up to 6.5 hours with lithium at 50 mW
- Dimensions: 2.3 x 1.8 x 0.64 inches (excluding antenna and connector)
- Weight: 2.5 oz (with lithium battery)
- Display: Backlit LCD with menu navigation
- Housing: Machined aluminum, hard-anodized finish
- Environmental: Water-resistant for field use
