Lectrosonics - SMWB Wideband Beltpack Transmitter/Recorder (A1: 470 to 537 MHz) (SMWB-A1)
Original price
$2,614.00
-
Original price
$2,614.00
Original price
$2,614.00
$2,614.00
-
$2,614.00
Current price
$2,614.00
| /

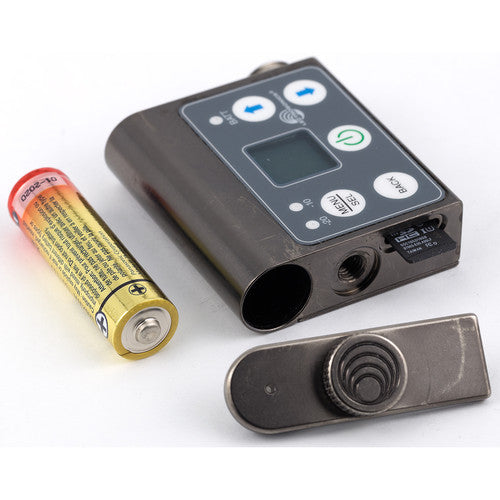

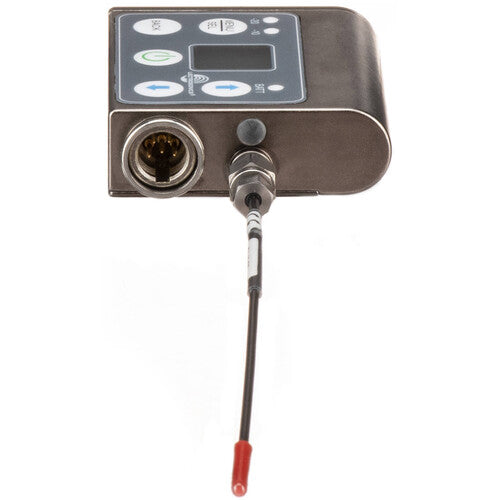

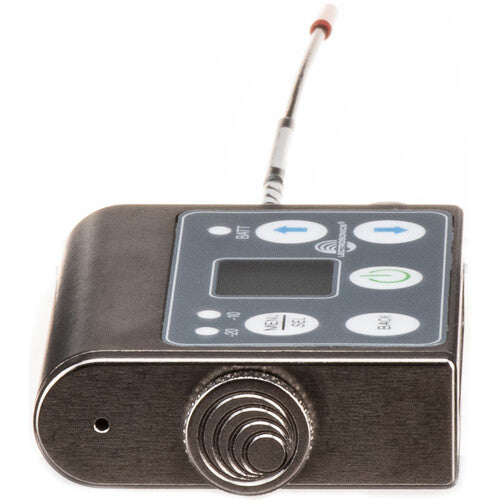

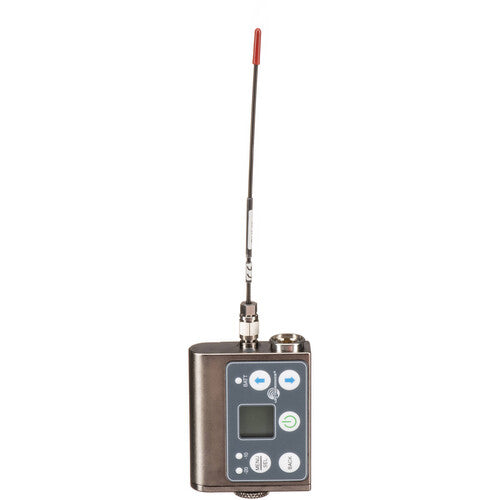

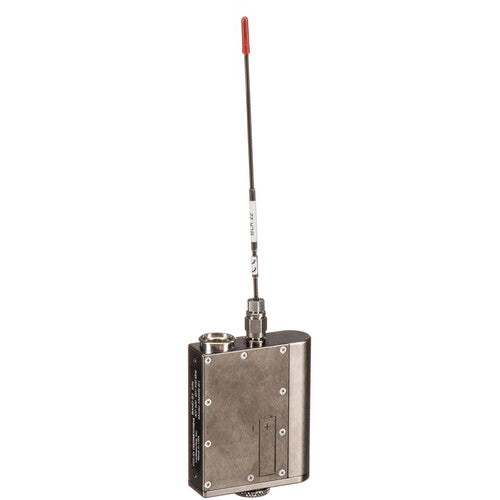

The Lectrosonics SMWB-A1 is a compact and rugged wideband beltpack transmitter and audio recorder designed for professional field production. Operating within the A1 block (470 to 537 MHz), it offers a 75 MHz tuning range to provide maximum frequency flexibility in crowded RF environments. This single-battery unit supports digital hybrid wireless transmission, making it compatible with a wide range of Lectrosonics receivers. The integrated microSD card recorder ensures high-quality backup audio capture, even in situations where wireless transmission is compromised. Engineered for reliability and durability, the SMWB-A1 is ideal for film, broadcast, and location sound professionals demanding premium performance in a compact form factor.
The Key Features of the Lectrosonics SMWB-A1:
- Wide 75 MHz tuning range in A1 block (470–537 MHz)
- Digital Hybrid Wireless® technology for studio-grade audio
- Internal microSD recorder for backup audio capture
- Rugged, water-resistant aluminum housing
- Compact design with minimal RF footprint
- Menu-driven interface with high-visibility OLED screen
- Selectable RF power levels: 25, 50, and 100 mW
- Timecode jam-sync capability for post-production syncing
- Wide input dynamic range without need for pads
- Powered by a single AA battery (alkaline, lithium, or NiMH)
The Detailed Specifications for the Lectrosonics SMWB-A1:
- Operating Frequency Range: 470 – 537 MHz (A1 Block)
- RF Transmission Type: Digital Hybrid Wireless®
- Modulation Type: FM, 50 kHz deviation
- RF Output Power: Selectable 25, 50, 100 mW
- Audio Frequency Response: 20 Hz – 20 kHz ±1 dB
- Signal-to-Noise Ratio: 115 dB (A-weighted)
- Input Type: TA5M connector for lavalier mic or line input
- Input Dynamic Range: 110 dB without limiter
- Recording Format: WAV (24-bit/48 kHz), BWF-compliant
- Storage Media: microSD/microSDHC card
- Display: OLED for easy navigation and status monitoring
- Battery Type: One AA battery (alkaline, lithium, or NiMH)
- Battery Life: Up to 6.5 hours (lithium at 100 mW)
- Housing: Machined aluminum, weather-resistant
- Dimensions: 2.3 x 2.4 x 0.73 in. (58 x 61 x 19 mm)
- Weight: 2.7 oz (76 g) without battery
