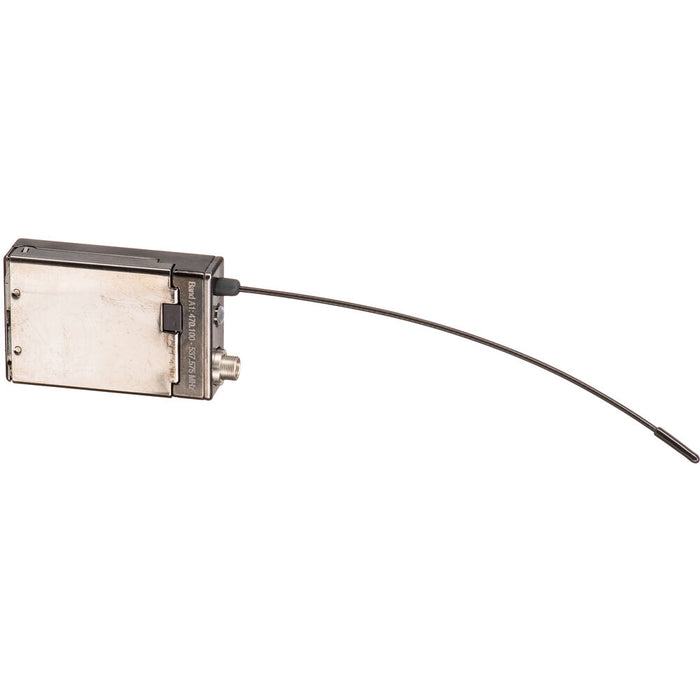

Lectrosonics - SSM Digital Hybrid Wireless Miniature Transmitter (A1: 470.100 to 537.575 MHz) (SSM-A1)
Original price
$2,614.00
-
Original price
$2,614.00
Original price
$2,614.00
$2,614.00
-
$2,614.00
Current price
$2,614.00
| /

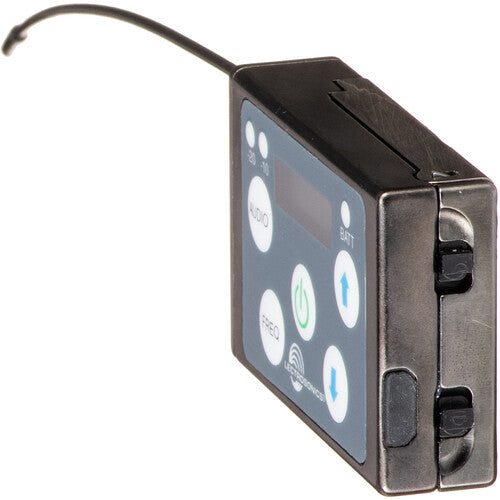

The Lectrosonics SSM-A1 Digital Hybrid Wireless Miniature Transmitter is engineered for discreet placement and reliable audio transmission in professional film, TV, and stage environments. Designed to provide exceptional audio clarity in a compact form, the SSM-A1 operates across a frequency range of 470.100 to 537.575 MHz, making it ideal for crowded RF environments. The transmitter supports Digital Hybrid Wireless® technology for optimal audio performance without the need for companders, and its robust build ensures durability in demanding production settings. With a user-friendly interface, variable RF power output, and compatibility with a wide range of microphones, the SSM-A1 is a top-tier solution for sound professionals seeking minimal size without sacrificing performance.
The Key Features of the Lectrosonics SSM-A1 Digital Hybrid Wireless Miniature Transmitter:
- Digital Hybrid Wireless® technology for superior audio quality
- Ultra-compact and lightweight design for discreet use
- Selectable RF output power: 25 or 50 mW
- Wide tuning range: 470.100 to 537.575 MHz (A1 band)
- Programmable via IR port and intuitive menu navigation
- Locking 3-pin Micro Lemo input connector
- Durable aluminum housing with weather-resistant seals
- Compatible with lavalier microphones and other accessories

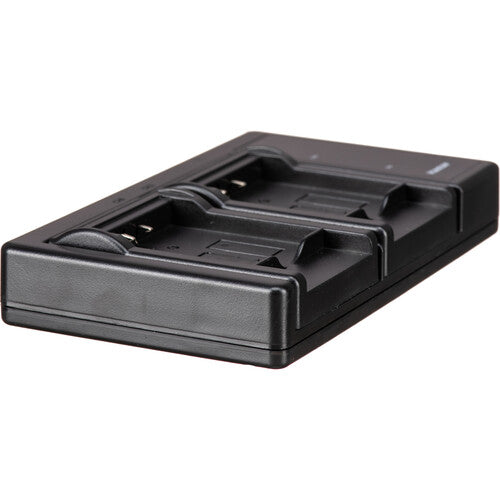

- Rechargeable battery operation with optional dock charger
- Ideal for broadcast, film, and theatrical production
The Detailed Specifications for the Lectrosonics SSM-A1 Digital Hybrid Wireless Miniature Transmitter:
- RF Frequency Range: 470.100 to 537.575 MHz (A1 block)
- RF Output Power: Selectable 25 mW or 50 mW
- Modulation Type: Digital Hybrid Wireless®
- Audio Frequency Response: 25 Hz to 20 kHz (+/- 1 dB)
- Dynamic Range: 110 dB A-weighted
- Input Connector: Locking 3-pin Micro Lemo
- Input Impedance: 2.7 kOhm (adjustable)

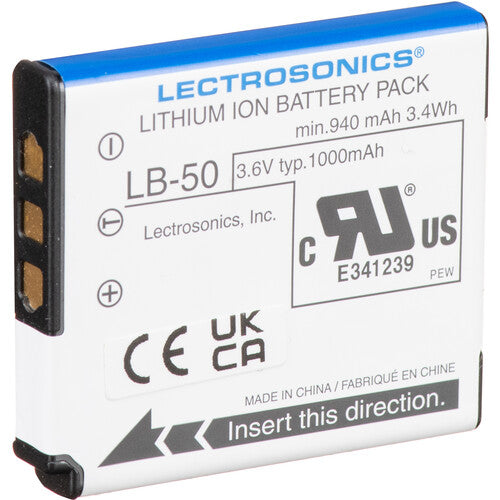

- Battery Type: Rechargeable lithium-ion (LB-50)
- Battery Life: Up to 6.5 hours (depending on power and usage)
- Dimensions: 2.3 x 1.8 x 0.63 inches (58.4 x 45.7 x 16 mm)
- Weight: 2.3 oz (65 g) with battery
- Display: OLED for clear visibility in various lighting

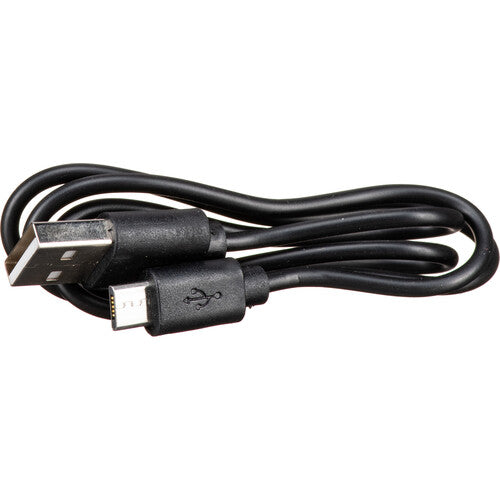

- Firmware Updates: Via USB port (with adapter)
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
