Lectrosonics - SSM Digital Hybrid Wireless Miniature Transmitter (B1: 537.600 to 614.375 MHz) (SSM-B1)
Original price
$2,614.00
-
Original price
$2,614.00
Original price
$2,614.00
$2,614.00
-
$2,614.00
Current price
$2,614.00
| /
The Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (SSM-B1) is a compact and lightweight bodypack transmitter designed for professional audio, broadcast, and film production applications. Operating in the B1 frequency band (537.600 to 614.375 MHz), it combines the size efficiency needed for talent-worn setups with the performance required in critical audio environments.
Utilizing Lectrosonics' signature Digital Hybrid Wireless® technology, the SSM-B1 ensures pristine audio quality while maintaining compatibility with a wide range of receivers. Its rugged construction, multiple power settings, and adaptable input connector make it a versatile choice for discreet, high-quality wireless audio transmission in demanding production environments.
The Key Features of the Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (SSM-B1):
- Operates in B1 frequency band: 537.600 to 614.375 MHz
- Ultra-compact, lightweight design ideal for talent and concealed use
- Digital Hybrid Wireless® technology for superior audio fidelity
- Compatibility with a wide range of Lectrosonics receivers
- Selectable RF output power (10, 25, 50 mW)

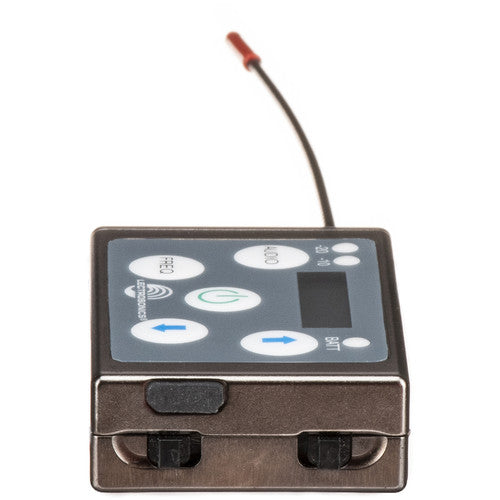

- Multi-function button and OLED display for intuitive setup

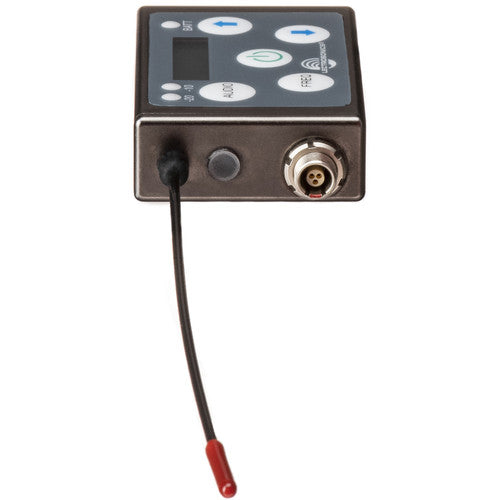

- Standard LEMO 3-pin connector for mic and line-level input
- IR sync for fast pairing with compatible receivers
- Rechargeable battery with external USB charging dock option
- Solid machined aluminum housing for durability
The Detailed Specifications for the Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (SSM-B1):
- Frequency Range: 537.600 – 614.375 MHz (B1 band)
- Modulation Type: Digital Hybrid Wireless®
- RF Power Output: Selectable 10 mW, 25 mW, 50 mW
- Audio Input: LEMO 3-pin connector
- Audio Frequency Response: 25 Hz to 20 kHz ±1 dB
- Dynamic Range: 110 dB A-weighted
- Input Gain Range: Adjustable from 0 to +44 dB
- Battery Type: Rechargeable lithium-ion
- Battery Life: Up to 8 hours (depending on power setting)
- Display: OLED with menu navigation
- Dimensions: 2.3 x 1.6 x 0.6 inches (58 x 40 x 14 mm)
- Weight: 2.3 oz (65 g) with battery
- Housing: Machined aluminum, hard-anodized finish
