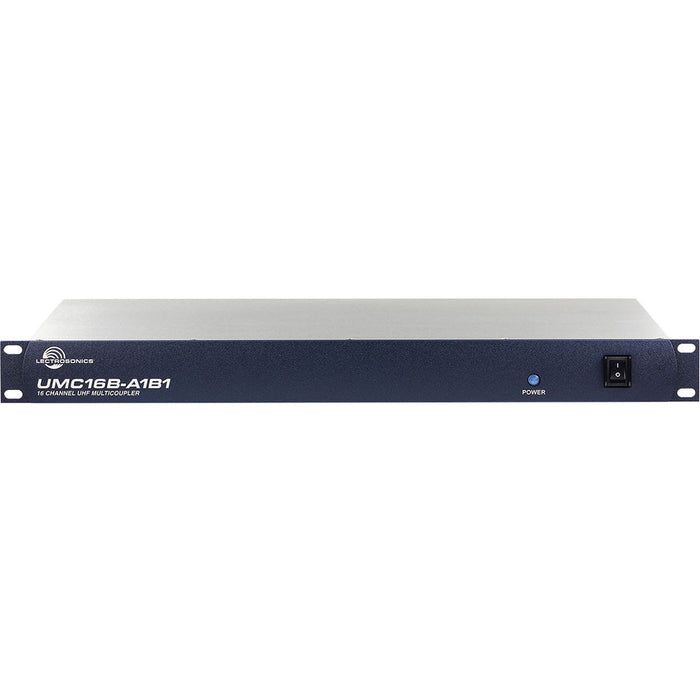

Lectrosonics - UMC16B-A1B1 16-Channel UHF Antenna Multicoupler (470 to 614 MHz)
Original price
$2,440.00
-
Original price
$2,440.00
Original price
$2,440.00
$2,440.00
-
$2,440.00
Current price
$2,440.00
| /
The Lectrosonics UMC16B-A1B1 is a professional-grade 16-channel UHF antenna multicoupler designed for high-performance wireless microphone systems. Operating in the 470 to 614 MHz frequency range, this unit consolidates antenna signals and distributes them cleanly to up to eight dual-channel receivers. Engineered with precision filtering and ultra-low noise amplifiers, the UMC16B-A1B1 ensures exceptional signal integrity, RF isolation, and low intermodulation. It's ideal for demanding broadcast, production, and live sound environments where consistent RF performance is critical.
The Key Features of the Lectrosonics UMC16B-A1B1:
- 16-channel RF distribution in a compact 1RU chassis
- Supports UHF frequencies from 470 to 614 MHz
- Dual high-isolation antenna inputs with active gain
- High-quality bandpass filtering for RF cleanliness
- Eight pairs of isolated outputs for receiver connections
- Low-noise RF amplifiers to maintain signal integrity
- Built-in cascading outputs for daisy-chaining units
- LED signal presence indicators for each output
- Robust aluminum construction for professional use
- Universal AC power input with internal power supply
The Detailed Specifications for the Lectrosonics UMC16B-A1B1:
- Frequency Range: 470 to 614 MHz (A1B1 block)
- Number of Channels: 16 (8 dual-channel outputs)
- Input Connectors: 2 x BNC (antenna inputs)
- Output Connectors: 16 x BNC (receiver outputs)
- RF Amplifier Gain: +12 dB nominal
- Isolation Between Outputs: Greater than 60 dB
- Third Order Intercept Point: +36 dBm typical
- Power Requirements: 100–240 VAC, 50/60 Hz
- Power Consumption: Approximately 12 watts
- Dimensions: 19" x 1.75" x 10" (1RU rackmount)
- Weight: 6.5 lbs (2.95 kg)
- Operating Temperature: -20°C to +50°C
