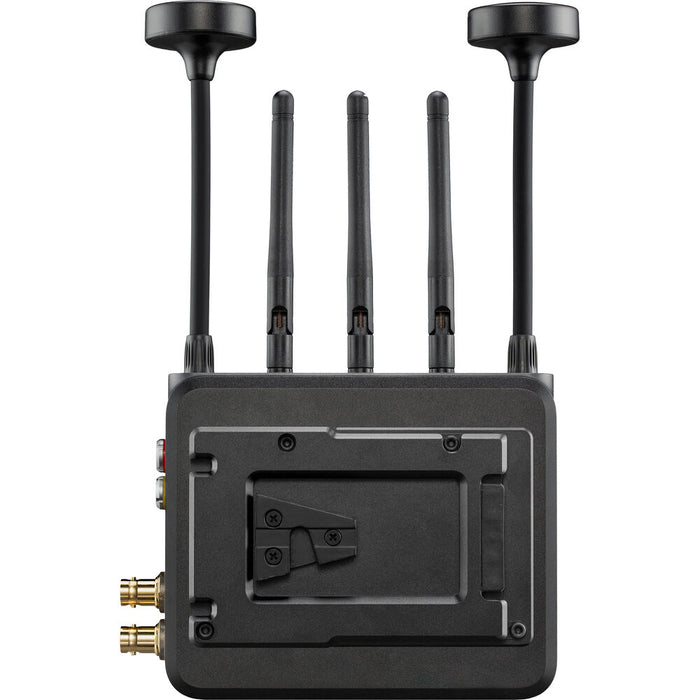

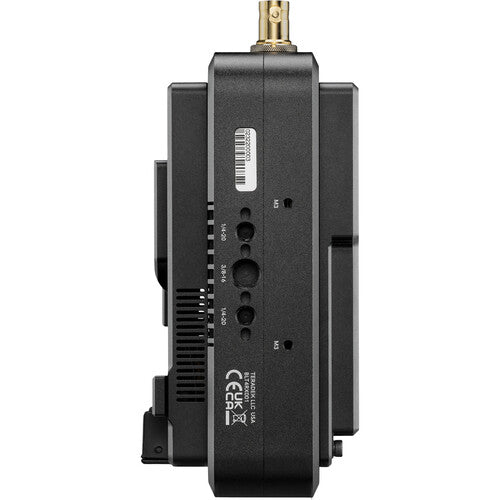

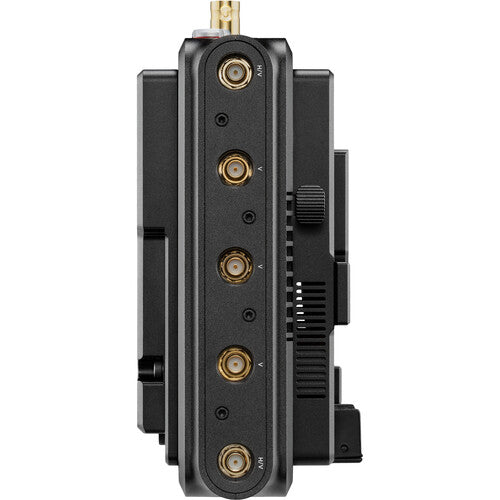

Teradek Ranger 4K 5000ft (6GHz) Zero-Delay Wireless Video System [Rental]

by Teradek
Original price $975.00 - Original price $975.00
Original price
$975.00
$975.00 - $975.00
Current price $975.00
 Rate/Day  |  3-Day Weekly Rates Available

The Teradek Ranger 4K delivers truly zero-delay (<1 ms) wireless video for mission-critical live production.

SKU: RANGER-4K-VMOUNT-RENTAL

The Teradek Ranger 4K delivers truly zero-delay (<1 ms) wireless video for mission-critical live production. Transmit visually lossless, uncompressed 4K60 10-bit 4:2:2 over line-of-sight distances up to 5,000 ft (1,524 m). With newly opened 6GHz (U-NII-5) support alongside 4.9–6.4 GHz operation, Ranger gives you more clean spectrum and 12 additional RF channels to cut through congestion on stages, in arenas, and at OB compounds. Professional 12G-SDI and HDMI I/O, robust AES-256 encryption, and multicast to up to six receivers make Ranger 4K a rock-solid choice for broadcast, sports, events, drones, and ENG—where “close enough” latency just isn’t good enough.

The Key Features of the Teradek Ranger 4K:

  • True zero-delay wireless video (<1 ms) for perfectly synced IMAG and live control
  • Uncompressed 4K60 HDR, 10-bit 4:2:2 image quality
  • Up to 5,000 ft (1,524 m) line-of-sight range
  • Expanded 6GHz (U-NII-5) support plus 4.9–6.4 GHz operation for cleaner spectrum
  • 12G-SDI and HDMI 2.0 inputs/outputs for end-to-end 4K workflows
  • Multicast to up to 6 receivers; Broadcast Mode available on compatible models
  • AES-256 encrypted link for protected contribution
  • Designed for demanding RF environments: stages, stadiums, fly-packs, drones, and gimbals

The Detailed Specifications for the Teradek Ranger 4K:

  • Wireless Latency: <1 millisecond end-to-end
  • Maximum Range: Up to 5,000 ft / 1,524 m (line-of-sight)
  • Video Formats: Up to DCI/UHD 4K at 60p; HDR support
  • Color / Sampling: 10-bit, 4:2:2 (visually lossless, uncompressed)
  • RF Frequencies: 4.9–6.4 GHz, including 6GHz (U-NII-5); 20/40 MHz channel bandwidths
  • Additional Channels: 12 new RF channels enabled in 6GHz band
  • I/O Connectivity: 12G-SDI and HDMI 2.0 (TX/RX, model-dependent), SDI loop for local monitoring
  • Security: AES-256 video encryption
  • Topology: Point-to-point, Multicast to up to 6 receivers; Broadcast Mode on compatible models
  • Use Cases: Broadcast, live events/IMAG, sports, ENG, drones, gimbals, studio and field production
  • Power: 2-pin DC input; V-Mount/Gold-Mount options (model-dependent)
  • Regulatory Note: Frequency availability/licensing may vary by region
