16x16 12G-SDI video router in a compact 1RU design

Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI

Ideal for 4K/UltraHD and HD routing workflows

Simple network-based control via built-in web interface

Supports third-party router control protocols

Redundant power supply options for enhanced reliability

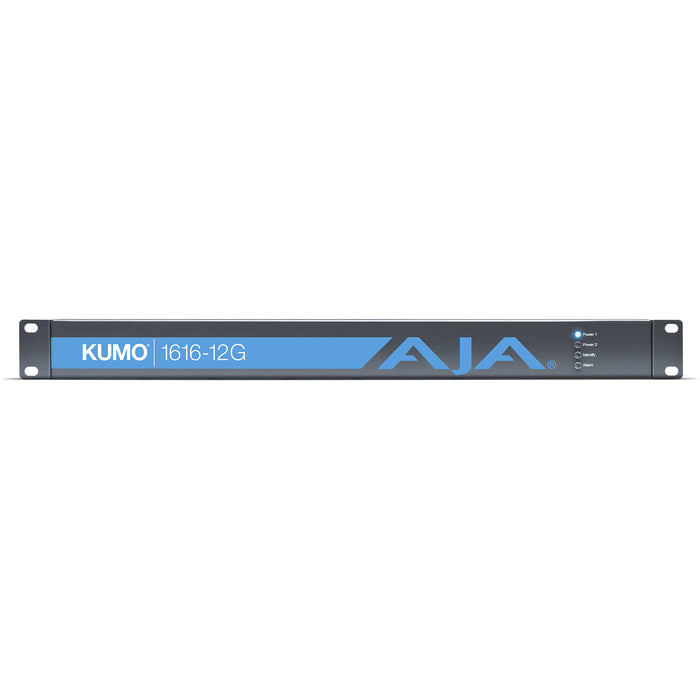

Front-panel buttons for direct control

Compact design for space-saving installation

Compatible with KUMO CP and KUMO CP2 control panels

Robust build for professional broadcast and production environments

16x16 12G-SDI video router in a compact 1RU design

Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI

Ideal for 4K/UltraHD and HD routing workflows

Simple network-based control via built-in web interface

Supports third-party router control protocols

Redundant power supply options for enhanced reliability

Front-panel buttons for direct control

Compact design for space-saving installation

Compatible with KUMO CP and KUMO CP2 control panels

Robust build for professional broadcast and production environments

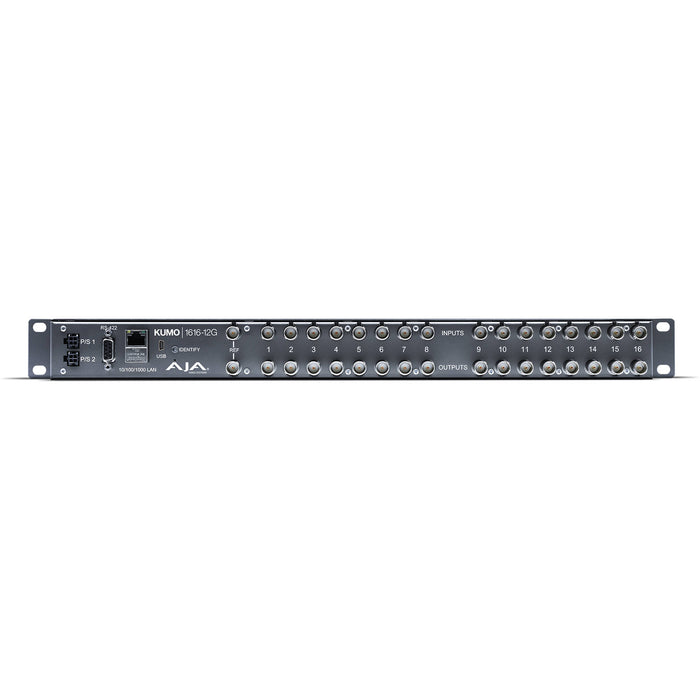

Video Inputs: 16x 12G-SDI inputs​
AJA Video Systems

Video Outputs: 16x 12G-SDI outputs​

Supported Formats: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI​

Control Interface: 10/100/1000 Ethernet port for network control​

USB Interface: Mini-USB port for IP configuration via AJA eMini-Setup software​

Embedded Web Server: Yes, for browser-based control​

Dimensions (W x D x H): Approximately 19" x 1.75" x 1.6" (482.6 x 44.45 x 40.64 mm)​

Weight: Approximately 4.4 lb (2.0 kg)​

Operating Temperature: 32 to 104°F (0 to 40°C)​

Storage Temperature: -40 to 140°F (-40 to 60°C)​

Operating Relative Humidity: 10-90% non-condensing​

Operating Altitude: Less than 10,000 feet (3,000 meters)
