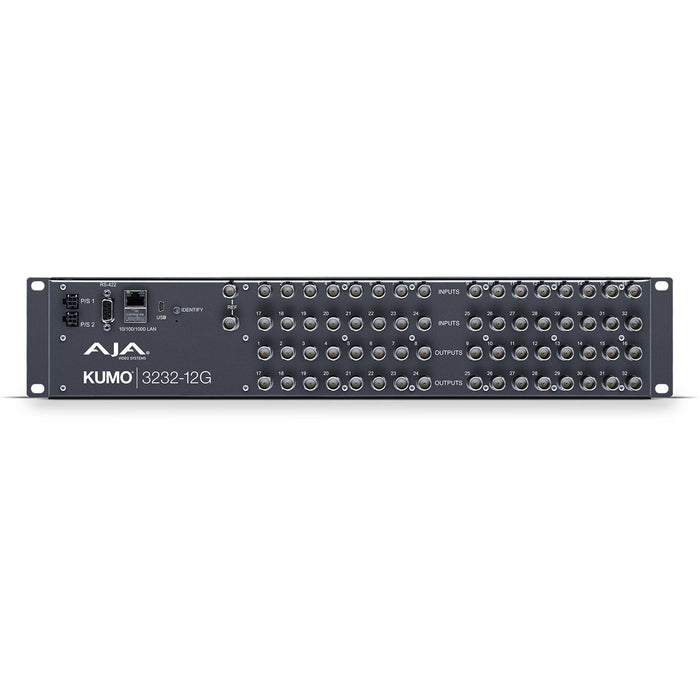

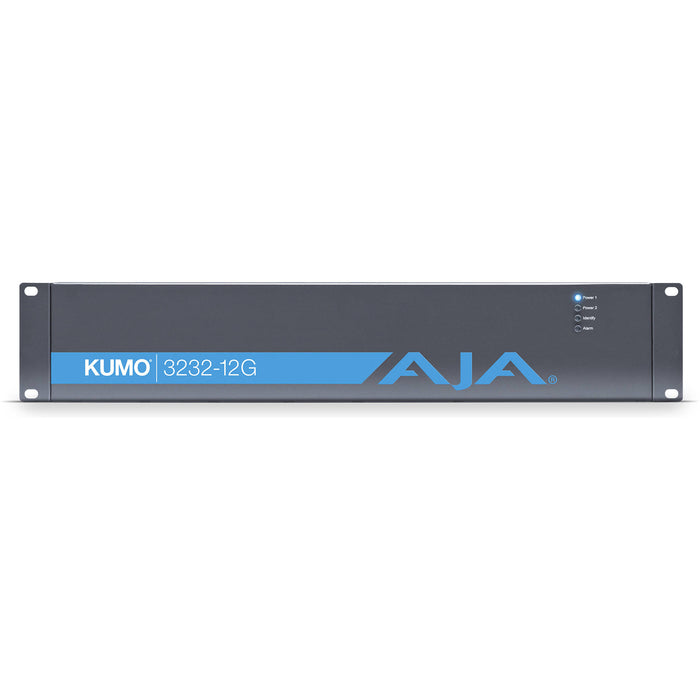

32x32 12G-SDI video router in a compact 2RU design

Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI

Ideal for 4K/UltraHD and HD routing workflows

Simple network-based control via built-in web interface

Supports third-party router control protocols

Redundant power supply options for increased reliability

Front-panel buttons for direct control and monitoring

Compact design for efficient rack space usage

Compatible with KUMO CP and KUMO CP2 control panels

Robust construction for professional broadcast and production environments

32x32 12G-SDI video router in a compact 2RU design

Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI

Ideal for 4K/UltraHD and HD routing workflows

Simple network-based control via built-in web interface

Supports third-party router control protocols

Redundant power supply options for increased reliability

Front-panel buttons for direct control and monitoring

Compact design for efficient rack space usage

Compatible with KUMO CP and KUMO CP2 control panels

Robust construction for professional broadcast and production environments

Video Inputs: 32x 12G-SDI inputs

Video Outputs: 32x 12G-SDI outputs

Supported Formats: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI

Control Interface: 10/100/1000 Ethernet port for network control

USB Interface: Mini-USB port for IP configuration using AJA eMini-Setup software (PC and Mac compatible)

Embedded Web Server: Yes, for browser-based control

Redundant Power Supply: Optional for enhanced reliability

Dimensions (W x D x H): 19" x 1.75" x 3.5" (482.6 x 44.45 x 88.9 mm)

Weight: Approximately 6.7 lb (3.04 kg)

Operating Temperature: 32 to 104°F (0 to 40°C)

Storage Temperature: -40 to 140°F (-40 to 60°C)

Operating Relative Humidity: 10-90% non-condensing

Operating Altitude: Less than 10,000 feet (3,000 meters)
