AJA Kumo CP2 Control Panel
MODEL: KUMO CP2
SKU: KUMO-CP2-R0
2RU control panel for AJA KUMO routers
Supports remote and direct control of routing
80 illuminated buttons for clear visibility and ease of use
Ethernet connectivity for simple configuration
No additional power supply needed with PoE (Power over Ethernet)
Controls up to four KUMO routers from a single panel
Compatible with all KUMO routers
Easy installation and intuitive operation
2RU control panel for AJA KUMO routers
Supports remote and direct control of routing
80 illuminated buttons for clear visibility and ease of use
Ethernet connectivity for simple configuration
No additional power supply needed with PoE (Power over Ethernet)
Controls up to four KUMO routers from a single panel
Compatible with all KUMO routers
Easy installation and intuitive operation

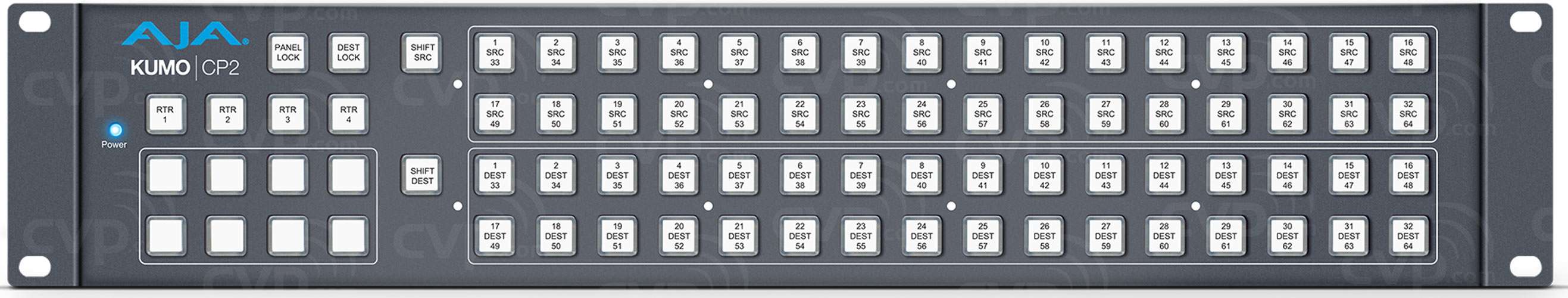

User Interface:
80 buttons with removable overcaps for lens chips
Includes factory-installed lens chip set
High and low button tally indication with configurable brightness
Panel Lock and Destination Lock features
Router Support:
Compatible with KUMO 1604, KUMO 1616, KUMO 3232, and KUMO 6464 routers
Controls up to four KUMO routers from a single panel
Supports ganged dual and quad-port routing for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows

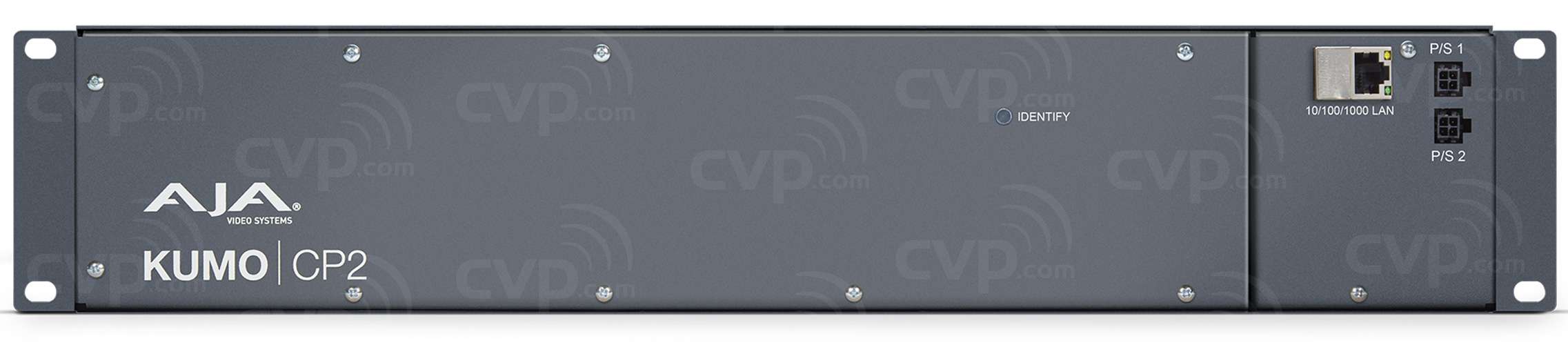

Network Interface:
One RJ-45 port supporting 10/100/1000 Ethernet
Embedded web server for remote control
USB Interface:
One Mini-USB port for IP configuration using AJA eMini-Setup software (compatible with PC and Mac)
Dimensions (W x D x H):
17.4" x 1.3" x 3.5" (441.96 x 33.02 x 88.9 mm)
Weight:
Approximately 2.1 lb (1.0 kg)
Power Requirements:
External power supply required
Dual, redundant, 10-14 VDC regulated, 4W typical, 9.6W max
AC adapter included: 100-240VAC, 50/60 Hz, universal input, 60W
Optional redundant AC adapter available (KUMO-PWR)
Environmental Conditions:
Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature (Power OFF): -40 to 140°F (-40 to 60°C)
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: Less than 10,000 feet (3,000 meters)
