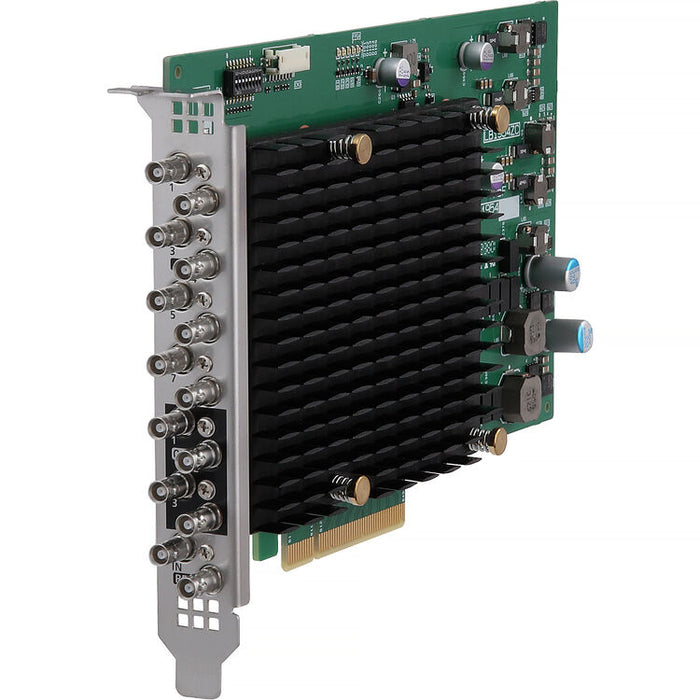

The Panasonic AT-KC20M1G Kairos Core SDI Board is a professional expansion module designed to extend the SDI connectivity of Panasonic Kairos Core live production systems. Engineered for broadcast, live events, and large-scale IP production environments, this board enables seamless integration of SDI-based video sources into the Kairos IT/IP platform.
Installed in the rear slot of a Kairos Core 2000 or 200 mainframe, each board provides a powerful combination of SDI input and output capabilities, allowing operators to easily incorporate traditional baseband video sources into modern IP workflows. Its scalable architecture supports multiple board installations, enabling systems to grow with production requirements and handle increasingly complex signal routing demands.
With support for reference input and output, the AT-KC20M1G ensures precise synchronization across all connected devices, maintaining broadcast-grade timing and signal integrity. The compact design and modular integration make it an essential component for hybrid SDI/IP production environments, bridging legacy infrastructure with next-generation live production systems.
The Key Features of the Panasonic AT-KC20M1G Kairos Core SDI Board:

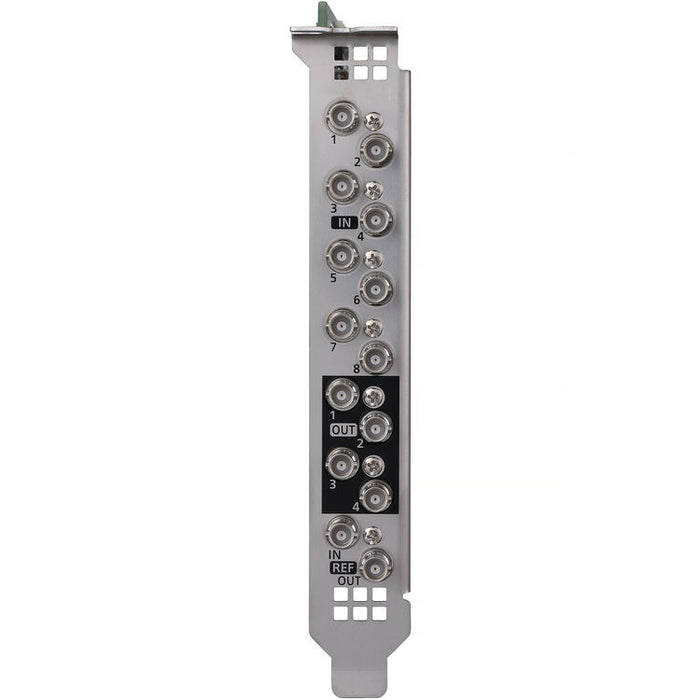

- Adds SDI (micro BNC) input and output capabilities to Kairos Core systems
- Provides 8 SDI inputs and 4 SDI outputs per board
- Includes reference input and output for system synchronization
- Supports installation of up to four boards per Kairos Core mainframe
- Expandable up to 32 SDI inputs and 16 outputs in HD/FHD workflows
- Supports up to 16 inputs and 8 outputs in 4K configurations
- Seamless integration with Panasonic Kairos IT/IP production platform
- Enables hybrid SDI and IP production workflows
- Installs into rear slots of Kairos Core 2000 and 200 mainframes
- Scalable architecture for growing broadcast and live production environments
The Detailed Specifications for the Panasonic AT-KC20M1G Kairos Core SDI Board:
- Model: AT-KC20M1G
- Type: SDI I/O Expansion Board for Kairos Core
- Compatibility: Kairos Core 2000 (AT-KC2000/2000S1) and Kairos Core 200
- Video Inputs: 8 x SDI (micro BNC) per board
- Video Outputs: 4 x SDI (micro BNC) per board
- Reference: Ref In / Ref Out supported
- Maximum Boards per System: Up to 4 (model dependent)
- Maximum I/O (HD/FHD): Up to 32 inputs / 16 outputs
- Maximum I/O (4K): Up to 16 inputs / 8 outputs
- Signal Type: SDI (HD/3G-SDI depending on system configuration)
- Installation: Rear slot installation in Kairos Core mainframe
- System Integration: Works within Kairos IT/IP video processing architecture
- Synchronization: Supports genlock/reference timing
- Scalability: Modular expansion for large-scale production systems
- Applications: Broadcast studios, live production, esports, OB trucks, corporate AV
