Quicklink StudioEdge-2110
Availability:
In stock 3-5 days
Original price
$33,995.00
-
Original price
$33,995.00
Original price
$33,995.00
$33,995.00
-
$33,995.00
Current price
$33,995.00
| /
The QuickLink StudioEdge-2110 is a powerful, rack-mounted broadcast solution designed for seamless live video contribution and professional remote production. Featuring robust IP workflows, ultra-low latency encoding/decoding, and full compatibility with SMPTE 2110 standards, the StudioEdge-2110 ensures reliable, broadcast-grade video and audio transmission. Ideal for studios, production houses, and broadcasters, this system offers flexible integration with existing infrastructures while supporting remote guests and contributors with exceptional quality and minimal delay.
The Key Features of the QuickLink StudioEdge-2110:
- Fully compliant with SMPTE 2110 IP video standards
- Ultra-low latency encoding and decoding for real-time communication
- Support for 1080p60 and 4K UHD broadcast-quality video

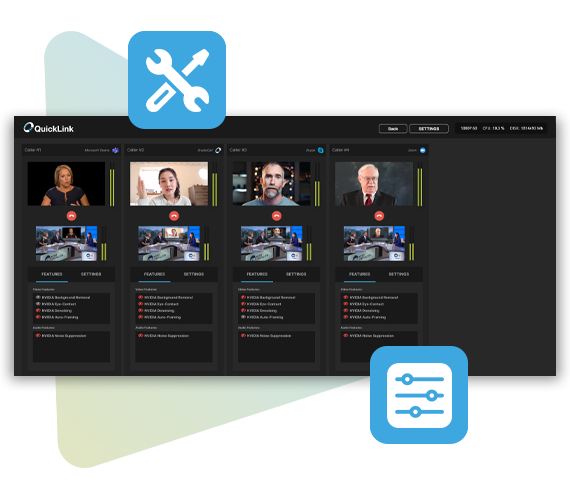

- Remote guest integration via web interface with high reliability
- Seamless integration with NDI, SDI, and other IP video formats
- Dual redundant power supplies for uninterrupted operation
- Comprehensive audio mixing and embedding capabilities
- Web-based management for control and configuration

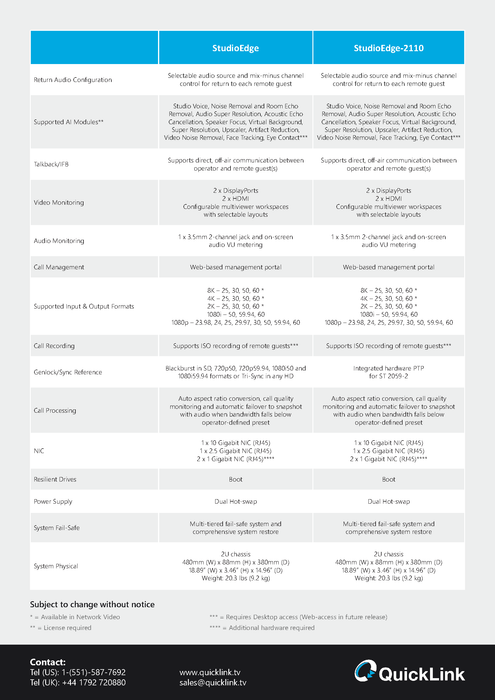

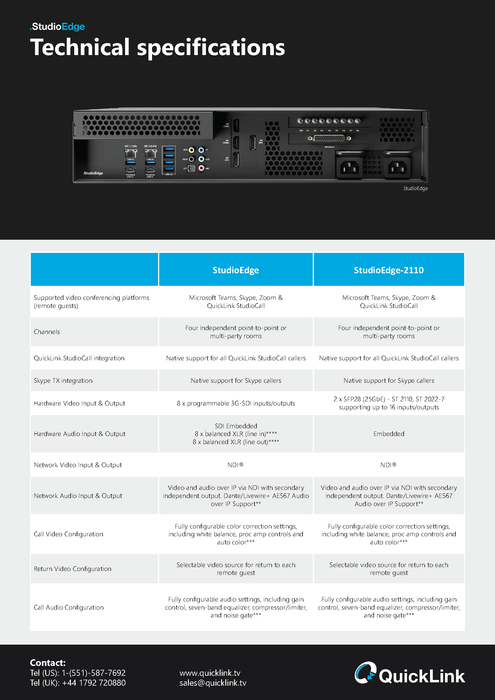

The Detailed Specifications for the QuickLink StudioEdge-2110:
- Video Input/Output: Up to 4x 3G-SDI / NDI / SMPTE 2110 IP video streams
- Video Resolutions Supported: 720p, 1080i, 1080p, 4K UHD
- Encoding/Decoding: H.264, H.265 (HEVC)
- Latency: Sub-100ms end-to-end latency
- Audio Support: Embedded SDI audio, AES/EBU, analog, IP audio (AES67)
- Network Interface: 10GbE SFP+ and 1GbE ports
- Control Interface: Web-based GUI, REST API, physical front panel
- Power Supply: Dual hot-swappable redundant PSU
- Form Factor: 1U rack-mount chassis
- Operating System: Embedded Linux OS with hardened security features
