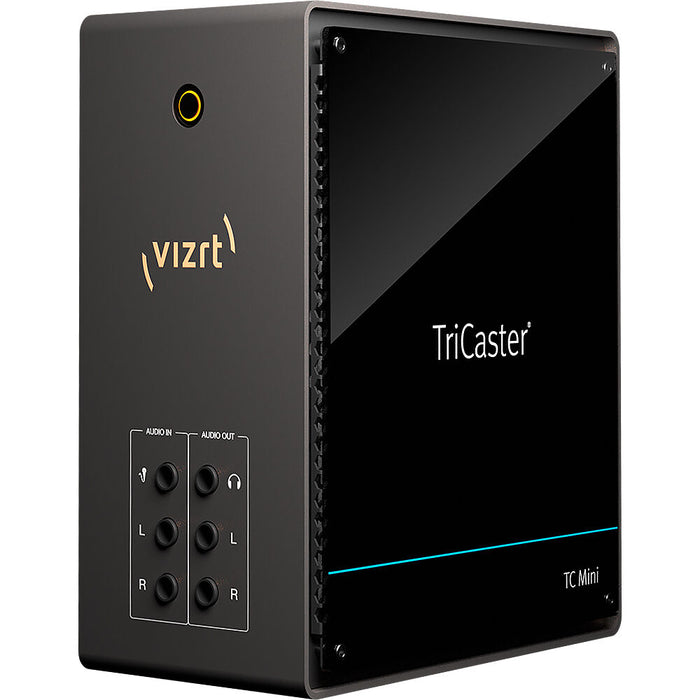

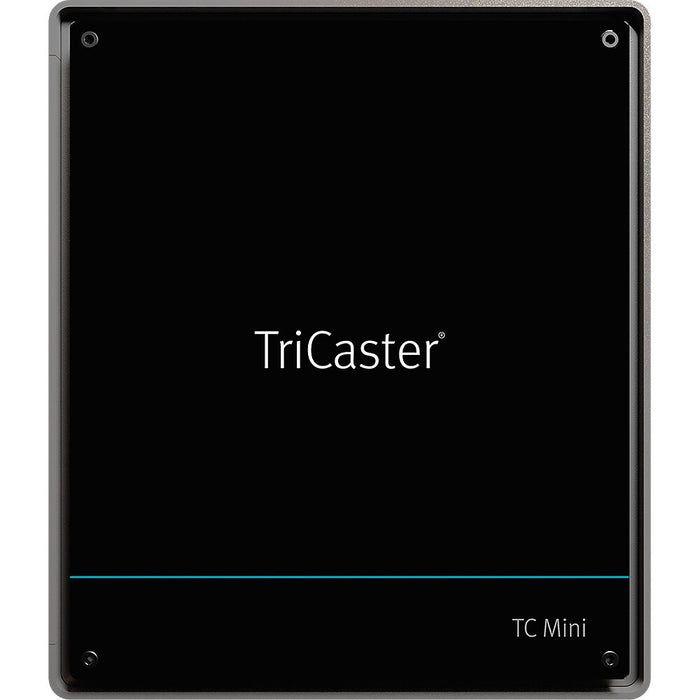

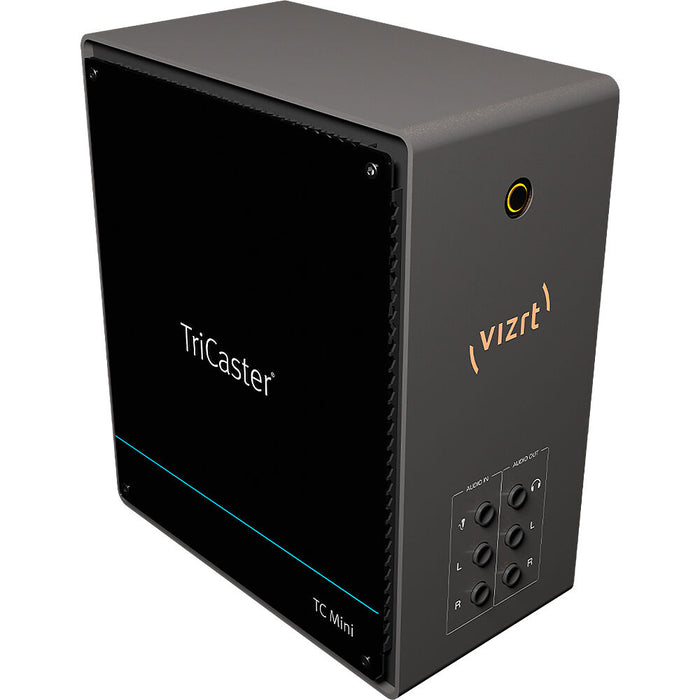

Vizrt TriCaster Mini X HDMI | Compact All-In-One Live Production System
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
The Vizrt TriCaster Mini X HDMI (TCMXHDMI) is a compact yet powerful live production solution designed for professionals and content creators who need high-quality streaming and video production capabilities on the go. Supporting up to 4K UHD resolution and equipped with versatile HDMI inputs, the TriCaster Mini X enables you to switch, stream, record, and publish your content without the need for external hardware. Its user-friendly interface, built-in graphics, remote calling capabilities, and integration with NDI® make it an ideal choice for educational institutions, corporate communications, live events, and more. Note: Control surface and travel case are not included.
The Key Features of the Vizrt TriCaster Mini X HDMI (TCMXHDMI):
- Supports up to 4K UHD resolution via HDMI connections
- Integrated live streaming, switching, recording, and publishing
- Four HDMI video inputs and two HDMI outputs
- Built-in NDI® support for seamless IP video integration
- Live call-in capability with Live Call Connect
- Advanced graphics engine with titles and animations
- Multiview output and customizable workspaces
- User-friendly interface ideal for solo producers or teams
- Lightweight, compact form factor for portable production
- Compatible with a wide range of third-party hardware and software
The Detailed Specifications for the Vizrt TriCaster Mini X HDMI (TCMXHDMI):

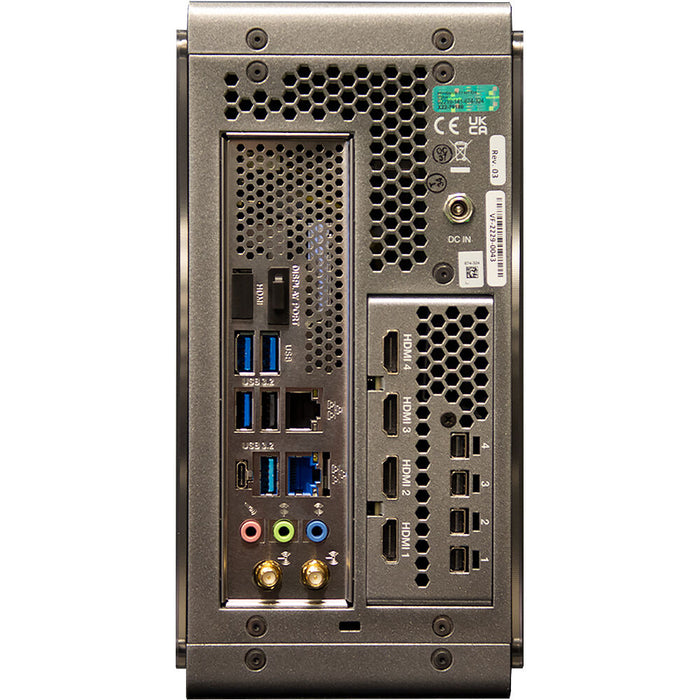

- Video Input: 4 x HDMI 1.4
- Video Output: 2 x HDMI 1.4

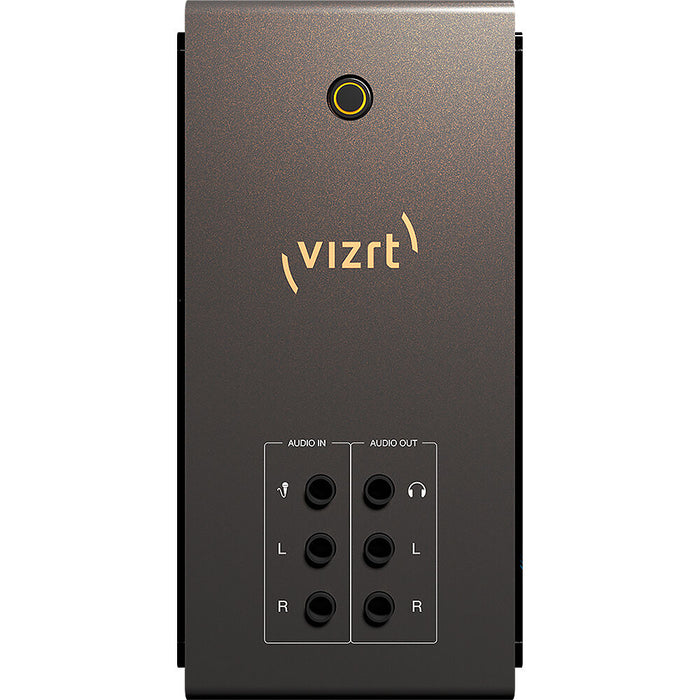

- Audio Input: Embedded HDMI, 1 x 1/8" (3.5mm) stereo
- Audio Output: Embedded HDMI, 1 x 1/8" (3.5mm) stereo
- Network: 1 x 1Gb Ethernet port
- Recording Format: MPEG-2, H.264
- Streaming Protocols: RTMP, NDI®, HTTP Live Streaming (HLS)
- Multiview Output: Configurable via HDMI
- Storage: Internal SSD, USB 3.0/USB-C ports for external drives
- Resolution Support: Up to 3840 x 2160 (4K UHD)
- Control Interface: TriCaster software UI, optional control surface
- Chroma Keying: Real-time keying with virtual set support
- Graphics & Titles: Built-in engine with customizable templates
- Dimensions: Approx. 4.6 x 8.5 x 9.2 inches (H x W x D)
- Weight: Approx. 5.4 lbs (2.45 kg)
- Power: External power supply, 100-240V AC input
