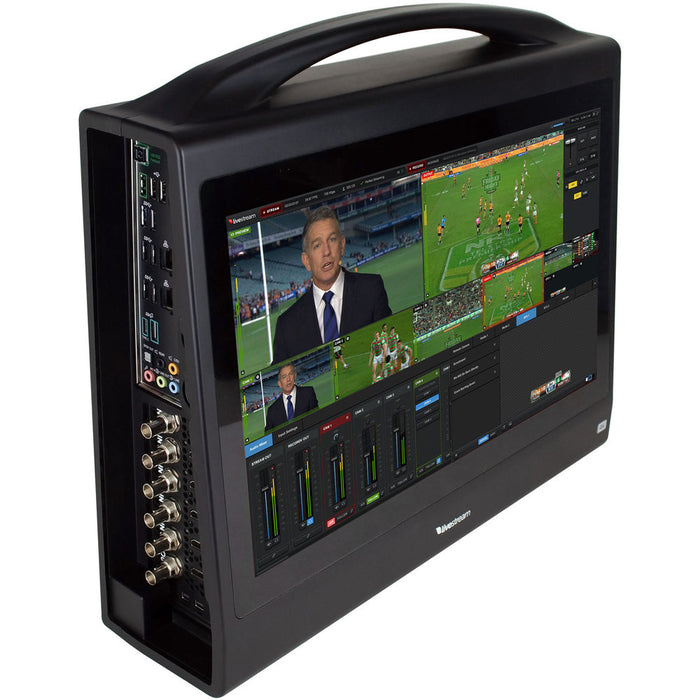

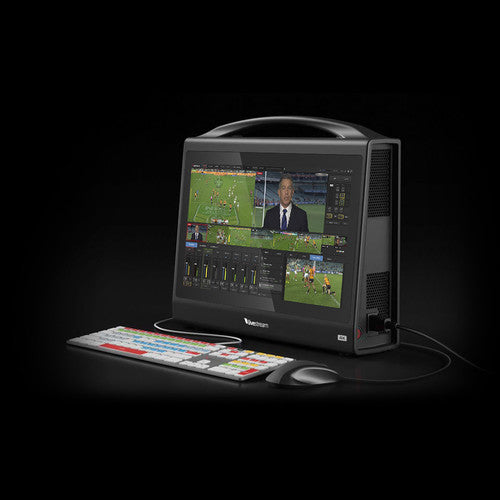

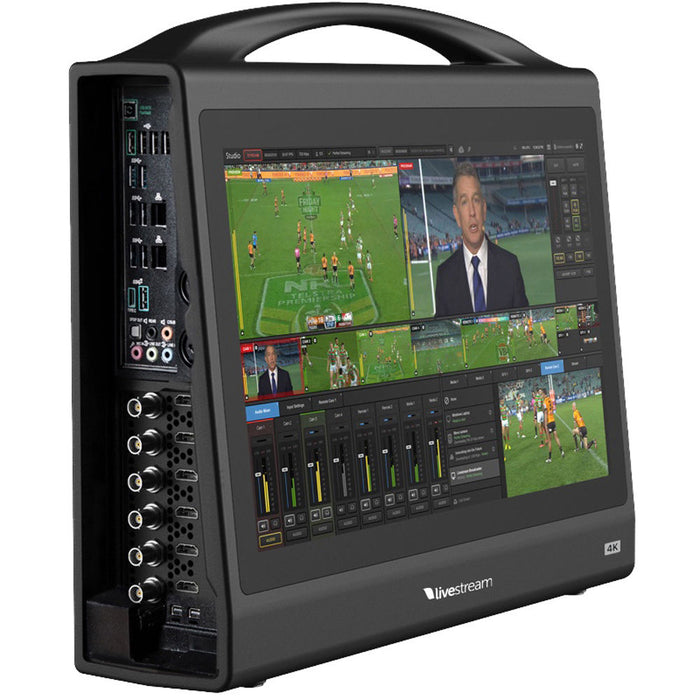

Multi-Camera Switching

• Supports 5 switchable 6G-SDI/4K HDMI inputs for high-resolution video sources.
• 25 NDI Inputs: Allows integration of IP-based video sources, offering flexibility in production workflows.

4K Resolution Support

• Handles video inputs and outputs at 4K UHD resolution, ensuring superior video quality for live productions.

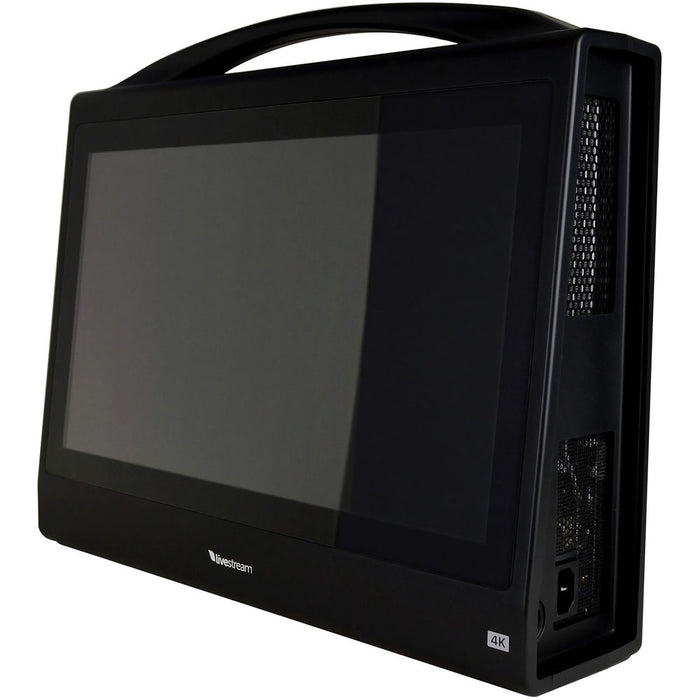

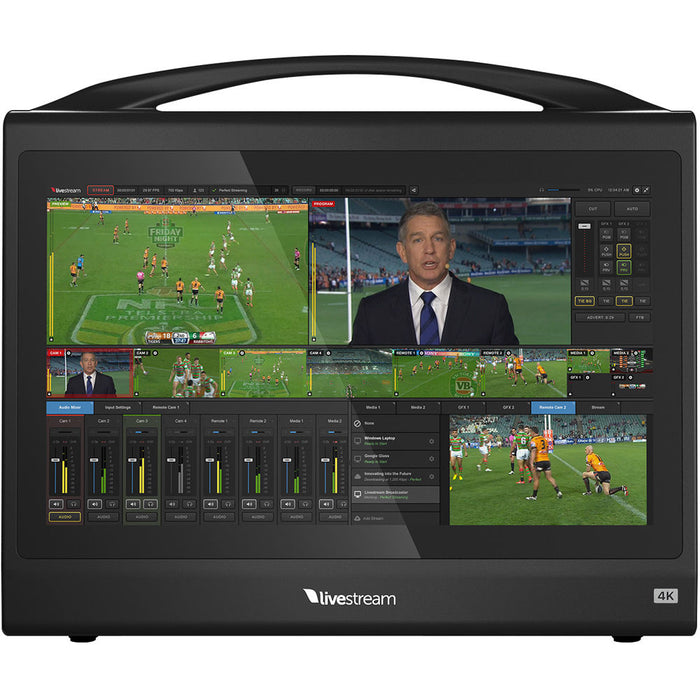

Integrated Display

• Features a 17-inch Full HD LED monitor for real-time multiview monitoring and production control.

Streaming Capabilities

• Built-in live streaming to platforms like YouTube, Vimeo, Facebook Live, and other RTMP-enabled services.
• Multi-bitrate streaming to accommodate varying bandwidth conditions.

ISO Recording

• Records up to 4 isolated inputs simultaneously, enabling post-production flexibility.

Audio Integration

• 2 Balanced XLR Inputs and a 3.5mm mini jack for professional audio sources.
• Embedded audio supported on all SDI and HDMI inputs and outputs.

Graphics and Overlays

• Includes 3 graphics tracks for titles, lower thirds, and custom branding.
• Built-in chroma keying for live background replacement.

Compact and Portable Design

• Lightweight, all-in-one form factor with a built-in handle for easy transport.

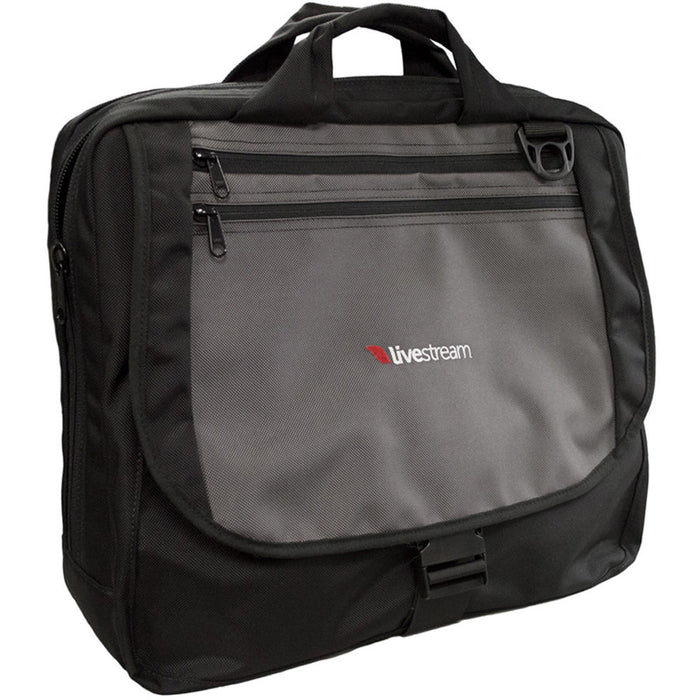

• Includes a custom travel bag, with an optional hard case for additional protection.

Networking

• Equipped with a Gigabit Ethernet port for NDI workflows and high-speed internet connectivity.

Software Features

• Pre-installed with Livestream Studio software, offering tools for multi-camera switching, live graphics, media playback, and advanced audio controls.

Customizable Multiview

• Fully customizable layouts for multiview monitoring.

Output Flexibility

• One 6G-SDI/HDMI output and 5 NDI outputs, providing a wide range of delivery options.

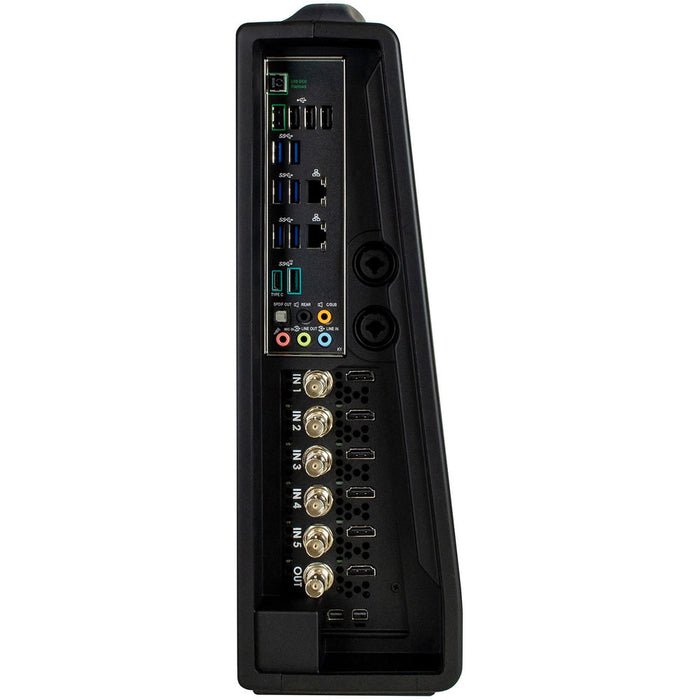

Video Inputs/Outputs:

• Inputs:
• Five switchable 6G-SDI/4K-HDMI inputs, accommodating various video sources.
• NDI Inputs: Supports up to 25 NDI (Network Device Interface) inputs for IP-based video sources.
• Outputs:
• One switchable 6G-SDI/4K-HDMI output for program feed.
• NDI Outputs: Supports up to 5 NDI outputs.

Audio Inputs/Outputs:

• Inputs:
• Two balanced XLR inputs for professional audio sources.
• One 1/8" (3.5mm) analog audio input.
• Embedded audio support for SDI and HDMI inputs.
• Outputs:
• One 1/8" (3.5mm) analog audio monitoring output.
• Embedded audio support for SDI and HDMI outputs.

Display:

• Integrated 17-inch Full HD (1920x1080) LED display for real-time monitoring and control.

Recording and Storage:

• Internal Storage: 2TB SSD, providing approximately 40 hours of recording at 1080i resolution with a recording bitrate of 100Mbps in AVI MJPEG format.
• ISO Recording: Supports up to 4 ISO (isolated) recordings simultaneously, allowing individual recording of inputs or outputs.

Streaming:

• Built-in live streaming capabilities via Gigabit Ethernet, supporting multiple platforms including Livestream, Vimeo, Facebook, YouTube, and other RTMP-enabled services.

Processing and Performance:

• CPU: Intel Core i7 6900K Broadwell-E Eight-Core 3.2 GHz processor with 20MB cache.
• RAM: 64GB DDR4 2133 MHz memory.
• Graphics: NVIDIA GeForce GT 730 GPU.

Software:

• Pre-installed with Livestream Studio software, offering features such as multi-camera switching, graphics overlay, chroma keying, and media playback.

Connectivity:

• Network: Built-in Gigabit Ethernet for streaming and NDI connectivity.
• USB Ports: Multiple USB ports for peripherals and external storage devices.

Physical Dimensions and Weight:

• Dimensions: Approximately 14.8 inches (depth) x 17.3 inches (width) x 3 inches (height).
• Weight: Approximately 19 pounds (8.6 kg).

Additional Features:

• Portability: Designed with a built-in handle and includes a custom carry bag for easy transportation, making it suitable for on-the-go productions.
• Chroma Keying: Built-in chroma key feature for live background replacement.
• Graphics and Media Playback: Supports multiple media sources for video and graphics playback, including two media tracks and three graphics tracks.
