Magewell USB Fusion HDMI & USB Video Capture Device

Availability:
Low stock
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: 35060

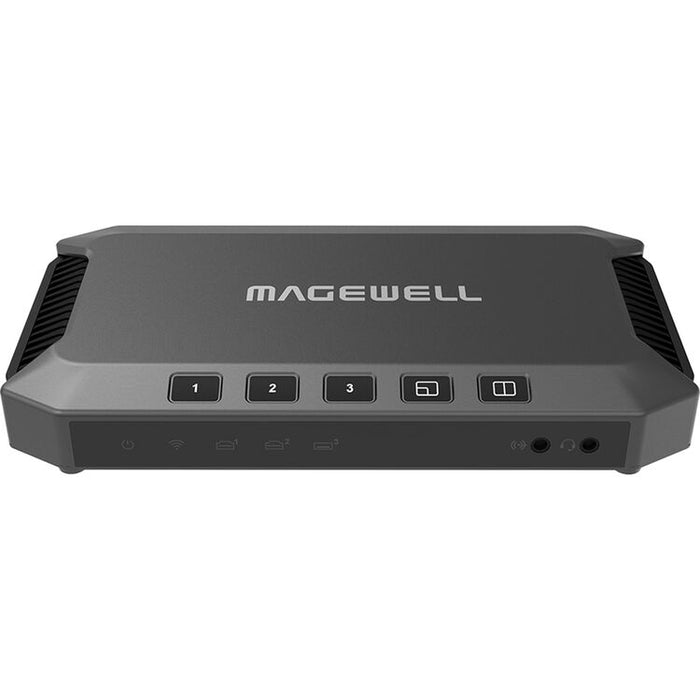

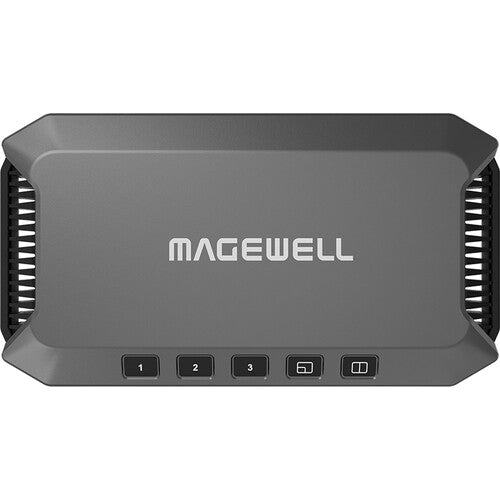

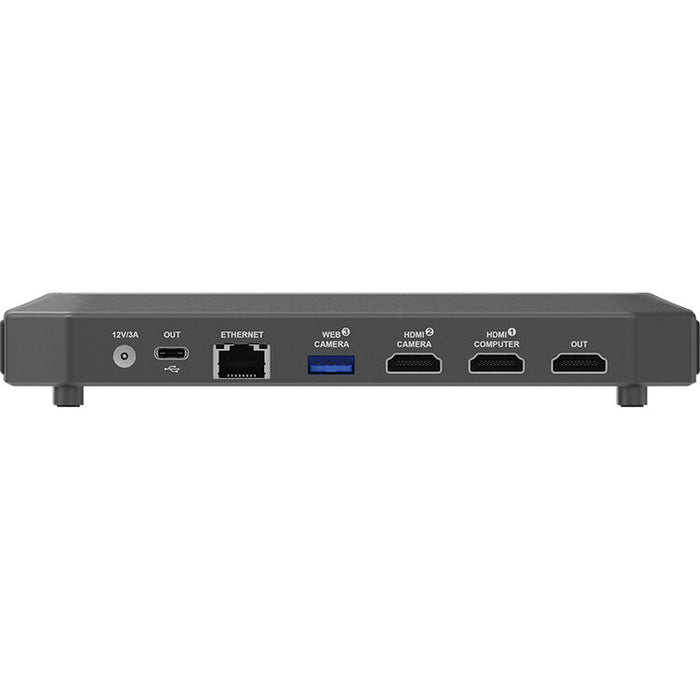

The Magewell USB Fusion HDMI & USB Video Capture Device is a powerful and flexible capture solution designed to combine multiple video sources into a single, easy-to-use USB output. Ideal for live streaming, video conferencing, online education, and content creation, this device enables seamless integration of HDMI and USB camera inputs for enhanced production capabilities.

With the ability to connect both an HDMI video source and a USB webcam simultaneously, the USB Fusion allows users to create dynamic multi-source presentations without the need for complex switching systems. The device supports high-quality video capture with low latency, making it suitable for real-time applications where performance and reliability are critical.

Built-in video composition features enable picture-in-picture, side-by-side layouts, and custom overlays, allowing users to easily create professional-looking content directly from the device. Its USB interface delivers a single combined video feed to the host system, simplifying workflow and reducing setup complexity.

Designed for portability and ease of use, the Magewell USB Fusion is powered via USB and requires no external power supply. With broad compatibility across major operating systems and support for standard capture APIs, it integrates seamlessly into a wide range of software platforms, making it an ideal solution for hybrid production and multi-camera setups.

The Key Features of the Magewell USB Fusion HDMI & USB Video Capture Device:

  • Multi-Source Input: 1 x HDMI input, 1 x USB camera input, simultaneous capture
  • Video Composition: picture-in-picture, side-by-side, customizable layouts, real-time mixing
  • Output: single USB video output, combined video feed to host system
  • Resolution Support: supports up to 1080p60 output, high-quality video performance
  • Interface: USB connection, high-speed data transfer, low latency
  • Plug-and-Play: driver-free installation, USB-powered, no external power required
  • Processing Engine: onboard video processing, reduced CPU utilization, stable performance
  • Audio Support: embedded HDMI audio, USB audio input, synchronized with video
  • Software Compatibility: works with OBS, Zoom, Teams, vMix, Wirecast, and UVC-compatible applications
  • Portability: compact external design, ideal for mobile and hybrid workflows
  • Build Quality: durable construction, designed for professional use
  • Reliability: consistent performance, suitable for continuous operation

The Detailed Specifications for the Magewell USB Fusion HDMI & USB Video Capture Device:

  • Host Interface: USB, UVC compliant, plug-and-play operation
  • Video Inputs: 1 x HDMI input, 1 x USB camera input, simultaneous multi-source capture
  • Supported Input Resolutions: HDMI up to 3840×2160, USB camera up to 1080p
  • Output Resolution: up to 1920×1080, supports 60 fps output
  • Frame Rates: up to 60 fps, supports progressive video formats
  • Video Processing Features: hardware composition, scaling, picture-in-picture, layout customization
  • Audio Input: embedded HDMI audio, USB audio input, synchronized capture
  • Capture Formats: YUY2, NV12, RGB24, UVC standard formats
  • Latency: low-latency processing, suitable for real-time applications
  • Operating Systems: Windows, macOS, Linux, supports UVC standard drivers
  • Power: USB-powered, no external power supply required
  • Form Factor: compact external device, portable design
  • Operating Temperature: 0°C to 50°C, suitable for professional environments
