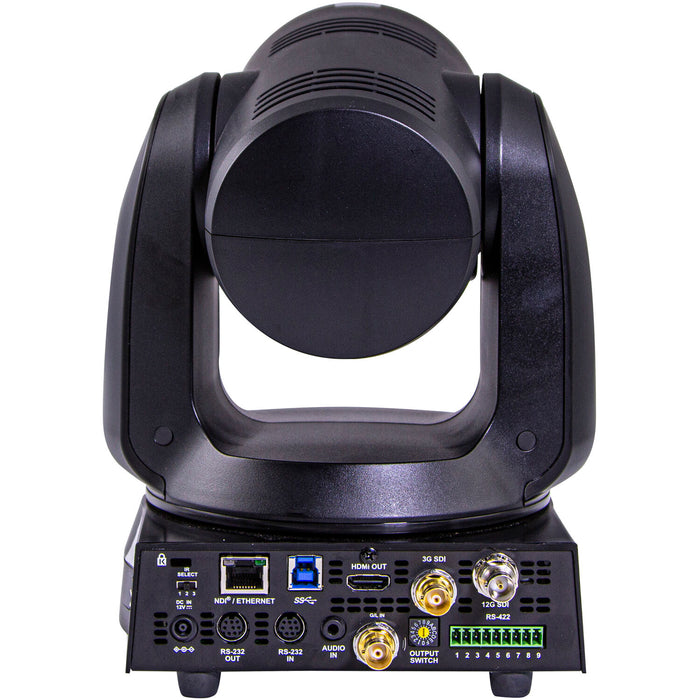

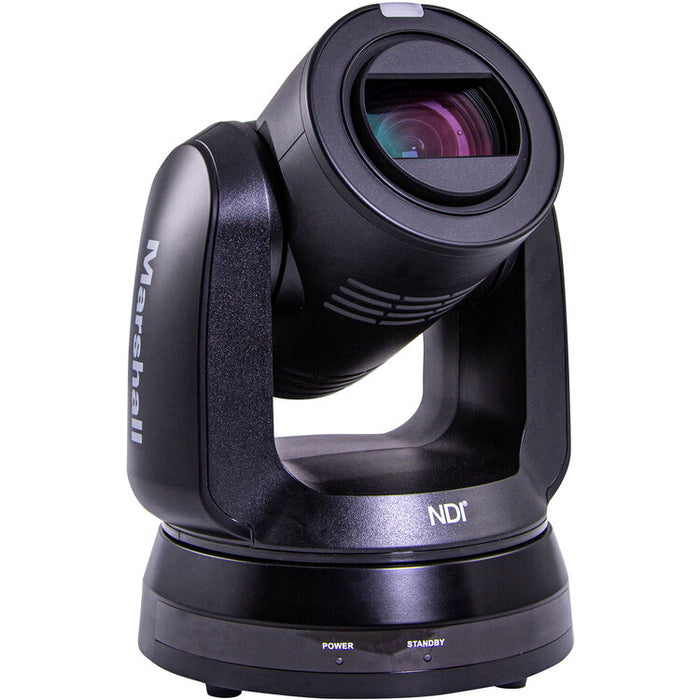

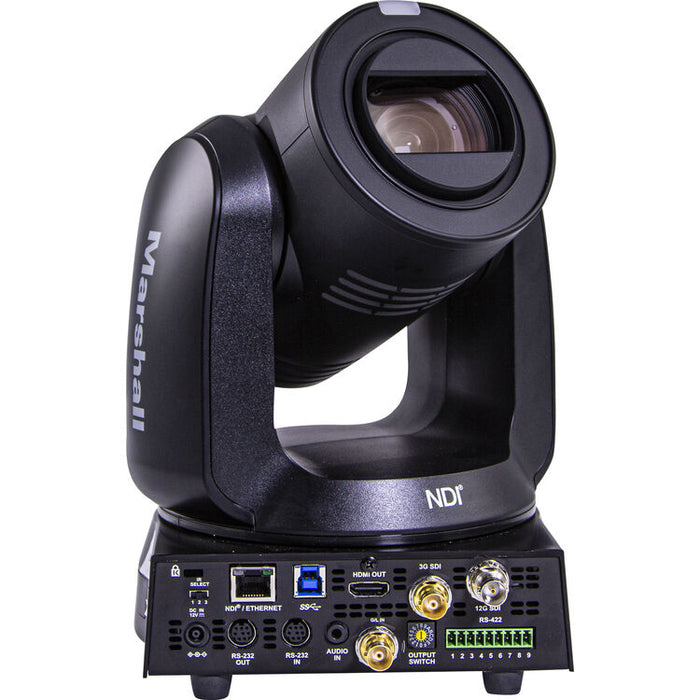

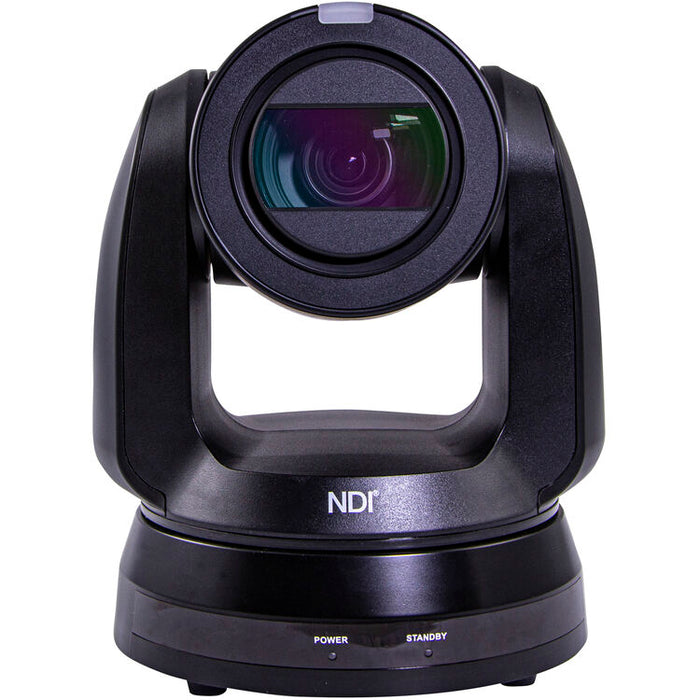

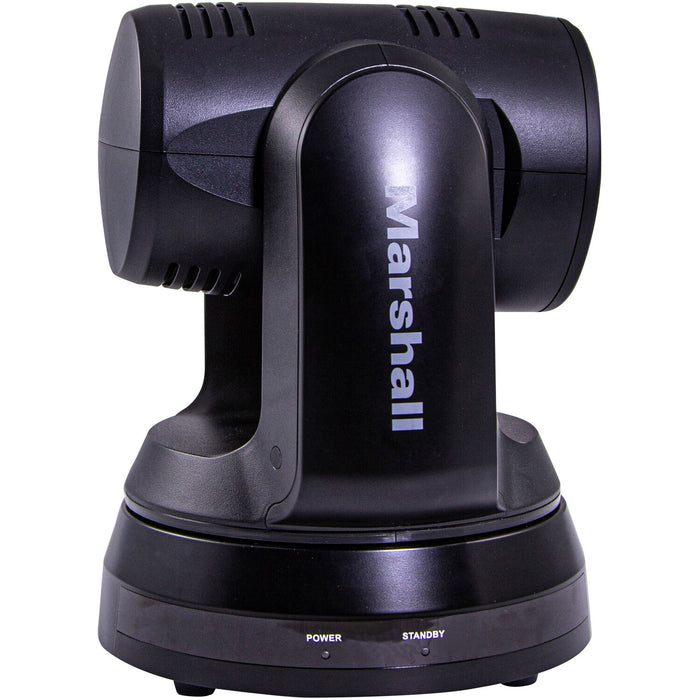

Marshall Electronics CV730-BHN NDI/SDI/HDMI/IP PTZ Camera with 30x Optical Zoom (Black)

Availability:
In stock 3-5 days
Original price $4,117.00 - Original price $4,117.00
Original price
$4,117.00
$4,117.00 - $4,117.00
Current price $4,117.00

SKU: CV730-BHN

The Marshall Electronics CV730-BHN is a professional-grade PTZ camera designed for high-quality live video production, streaming, and broadcast environments. Featuring a powerful 30x optical zoom and a high-performance Sony CMOS sensor, the camera delivers sharp, detailed Full HD video with excellent color accuracy and low-light performance.

Built for flexibility, the CV730-BHN supports simultaneous NDI®, 3G-SDI, HDMI, and IP streaming outputs, allowing seamless integration into modern IP-based workflows as well as traditional broadcast systems. Smooth, precise pan, tilt, and zoom movements make it ideal for houses of worship, corporate events, education, sports, and studio production.

With advanced control options including PoE+, VISCA over IP, RS-232/422, and web-based control, the CV730-BHN provides reliable operation and simplified installation in both permanent and mobile setups. Its durable black finish ensures a professional appearance in any environment.

The Key Features of the Marshall Electronics CV730-BHN:

  • 30x optical zoom lens for close-up detail in large venues
  • Full HD 1080p video output with high-quality Sony CMOS sensor
  • Simultaneous NDI®, 3G-SDI, HDMI, and IP streaming outputs
  • Smooth and quiet PTZ operation for live production
  • Power over Ethernet Plus (PoE+) for simplified installation
  • Supports VISCA over IP, RS-232, and RS-422 control protocols
  • Web-based browser control and configuration
  • Ideal for broadcast, worship, education, corporate, and sports applications

The Detailed Specifications for the Marshall Electronics CV730-BHN:

  • Image Sensor: 1/2.5-inch Sony CMOS sensor
  • Video Resolution: Up to 1920 x 1080 (Full HD)
  • Optical Zoom: 30x
  • Digital Zoom: Supported
  • Video Outputs: NDI®, 3G-SDI, HDMI, IP streaming
  • Frame Rates: Up to 60 fps (output dependent)
  • Pan Range: ±170°
  • Tilt Range: -30° to +90°
  • Control Protocols: VISCA over IP, RS-232, RS-422
  • Network Interface: RJ-45 Ethernet with PoE+
  • Power Requirements: PoE+ or DC power input
  • Mounting Options: Wall, ceiling, or tripod mount compatible
  • Chassis Color: Black
  • Application Use: Broadcast, live streaming, houses of worship, education, corporate AV

The Marshall CV730-BHN produces crystal clear images up to 3840x2160p at 60fps with support for 1080p, 1080i and 720p. Featuring High-Bandwidth NDI (Full-NDI) as well as the new NDI|HX3 & IP (HEVC).
