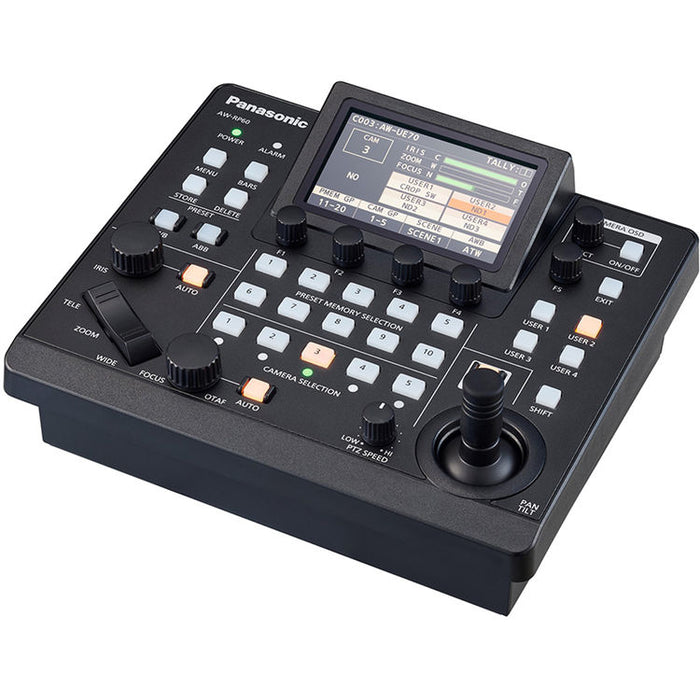

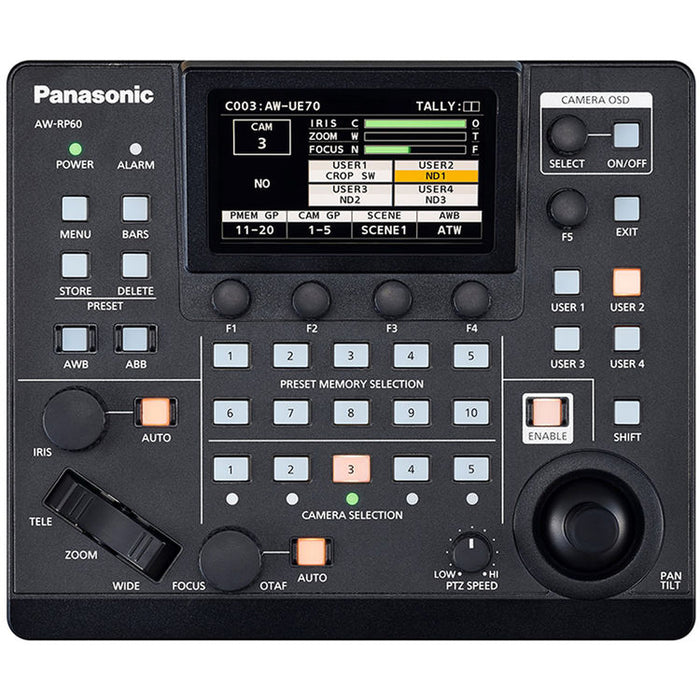

Panasonic AW-RP60GJ5 compact PTZ remote camera controller with joystick and 3.5-inch LCD display

Panasonic AW-RP60GJ5 Remote Camera Controller

by Panasonic
Availability:
Low stock
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU: AW-RP60GJ5

  • Overview
  • Features
  • Specifications

The Panasonic AW-RP60GJ5 Remote Camera Controller is a compact, professional-grade control solution designed for precise operation of Panasonic PTZ and remote cameras in broadcast, live production, and AV environments. Featuring a responsive joystick and an intuitive 3.5-inch LCD touchscreen interface, the AW-RP60GJ5 provides smooth and accurate control over pan, tilt, zoom, and advanced camera parameters.

Built for flexible multi-camera production, the controller supports control of up to 200 cameras over IP, making it ideal for scalable workflows in studios, corporate AV, education, and live event environments. The integrated GUI provides real-time visibility of key camera settings such as iris, focus, and zoom, enabling efficient operation and quick adjustments during production.

With Power over Ethernet (PoE) support, the AW-RP60GJ5 simplifies installation by allowing power and control through a single cable. Its compact footprint, customizable controls, and professional feature set make it a versatile and reliable solution for modern IP-based video production systems.

The Key Features of the Panasonic AW-RP60GJ5 Remote Camera Controller:

  • Compact remote camera controller for Panasonic PTZ systems
  • Control up to 200 PTZ cameras via IP and up to 5 via RS-422
  • 3.5-inch LCD screen with intuitive GUI for real-time camera monitoring
  • Precision joystick for smooth pan, tilt, and zoom control
  • Supports up to 100 camera presets for fast recall
  • Power over Ethernet (PoE) support for single-cable operation
  • Advanced camera control including iris, gain, white balance, and shutter
  • Four user-assignable buttons with up to eight customizable functions
  • Camera grouping for efficient multi-camera management
  • Compatible with Panasonic professional PTZ camera systems

The Detailed Specifications for the Panasonic AW-RP60GJ5 Remote Camera Controller:

  • Model: AW-RP60GJ5
  • Type: Remote PTZ Camera Controller
  • Display: 3.5-inch LCD (960 x 540 resolution)
  • Camera Control Capacity: Up to 200 cameras (IP), 5 cameras (RS-422)
  • Preset Memory: Up to 100 presets
  • Camera Groups: Up to 20 groups
  • Control Interface: Joystick with enhanced stability and precision
  • Control Functions: Pan, tilt, zoom, focus, iris, gain, shutter, white balance, color adjustment
  • User Controls: 4 assignable buttons (up to 8 functions)
  • Network Interface: 1 x RJ45 Ethernet (LAN, PoE supported)
  • Serial Interface: RS-422 (RJ45)

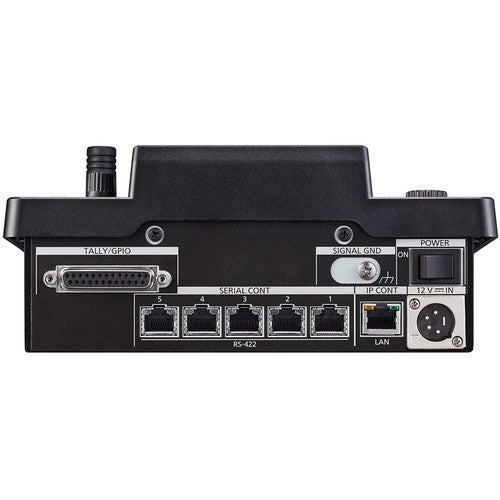

  • Additional I/O: Tally/GPIO (D-sub 25-pin)
  • Power Options: 12V DC (4-pin XLR) or PoE (IEEE 802.3af)
  • Power Consumption: Approx. 0.9 A (DC), 0.3 A (PoE)
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 50°C
  • Dimensions: 210 x 92 x 177 mm (8.3 x 3.6 x 7 in)
  • Weight: Approx. 1.5 kg (3.3 lbs)
  • Applications: Broadcast, live production, corporate AV, education, houses of worship

How to connect your Panasonic AW-RP60 Remote Controller with your computer for updating firmware, configuring your cameras and to name the presets.
