Magewell Pro Convert 12G SDI 4K Plus 1-Channel 12G SDI to NDI Encoder (64090)
Original price
$999.00
-
Original price
$999.00
Original price
$999.00
$999.00
-
$999.00
Current price
$999.00
| /

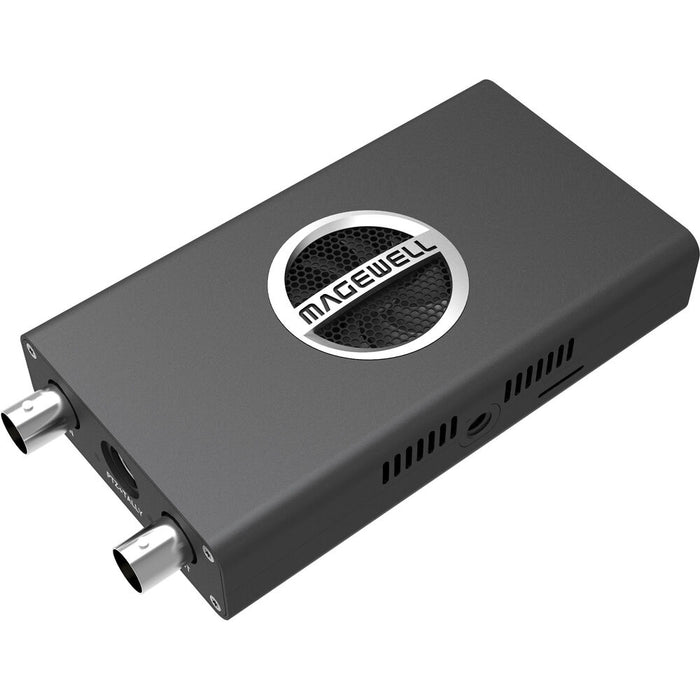

The Magewell Pro Convert 12G SDI 4K Plus is a professional-grade encoder designed to convert a single 12G-SDI input into a high-quality, low-latency NDI® stream. Built for demanding broadcast and AV environments, this compact device supports resolutions up to 4K at 60fps and ensures robust, real-time IP video transmission. The unit includes advanced signal processing, loop-through output, PTZ control, and flexible configuration options via a web-based interface. With its durable metal housing and fanless design, the Pro Convert 12G SDI 4K Plus offers silent operation and dependable performance for live production, streaming, and content delivery workflows.
The Key Features of the Magewell Pro Convert 12G SDI 4K Plus:
- Converts 12G-SDI video signals to high-quality NDI® streams
- Supports resolutions up to 4Kp60 (2160p60)
- 1x 12G-SDI input with active loop-through output
- Low-latency and high-performance NDI® encoding
- Built-in web UI for easy configuration and monitoring
- Supports PoE (Power over Ethernet) or external power supply
- Compact, fanless metal enclosure for quiet operation
- PTZ camera control over IP (via NDI® or serial connection)
- Tally light support for live production environments
- Integrated video processing including up/down conversion and color adjustment
The Detailed Specifications for the Magewell Pro Convert 12G SDI 4K Plus:

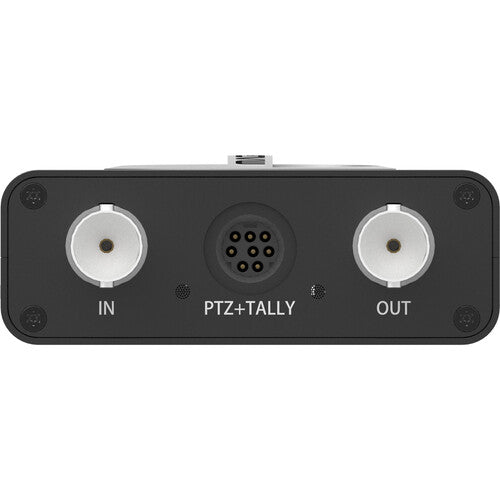

- Input Interface: 1x 12G-SDI (BNC), compliant with SMPTE 2082
- Loop-Through Interface: 1x 12G-SDI (BNC), active passthrough
- Supported Formats: Up to 4K60 (2160p60), including 1080p, 720p
- NDI® Output: Full NDI® with low-latency and high image quality

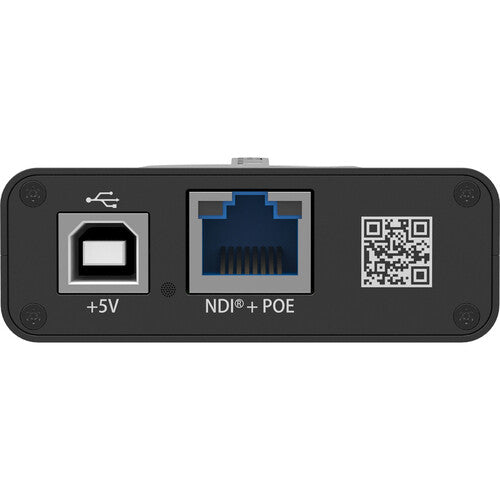

- Network Interface: 1x RJ-45 Gigabit Ethernet, supports PoE
- Video Processing: Hardware-based up/down scaling, color space conversion
- Audio Support: Embedded SDI audio and analog line-in via 3.5mm jack
- Control Interface: Web UI, Telnet, HTTP APIs
- PTZ Control: Supports VISCA over IP and RS-232
- Power Supply: PoE (IEEE 802.3af) or 5V/2.1A DC via USB-C
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions: 117.5mm x 66.7mm x 23.4mm (4.63” x 2.63” x 0.92”)
- Weight: Approx. 175g (6.17 oz)
