Magewell Pro Convert SDI TX 1-Channel 3G SDI to NDI Encoder (64060)
Original price
$425.00
-
Original price
$425.00
Original price
$425.00
$425.00
-
$425.00
Current price
$425.00
| /
The Magewell Pro Convert SDI TX 1-Channel Encoder is a professional-grade device designed to convert 3G-SDI video signals into high-quality NDI streams for IP-based production. With support for full HD video at up to 1080p60, this compact and reliable unit brings plug-and-play simplicity and broadcast-quality encoding to modern NDI workflows. Ideal for studios, live events, and remote production, it offers low-latency performance and seamless integration into existing infrastructures.
The Key Features of the Magewell Pro Convert SDI TX 1-Channel Encoder:
- Converts 3G-SDI video input to NDI streams over IP networks
- Supports resolutions up to 1080p at 60 frames per second
- Low-latency, high-quality NDI encoding
- 3G-SDI loop-through for simultaneous local monitoring
- Flexible audio embedding and support for analog or SDI-embedded audio
- Power over Ethernet (PoE) support for simplified cabling
- Compact and robust metal housing for professional use
- Web-based interface for remote configuration and control
The Detailed Specifications for the Magewell Pro Convert SDI TX 1-Channel Encoder:

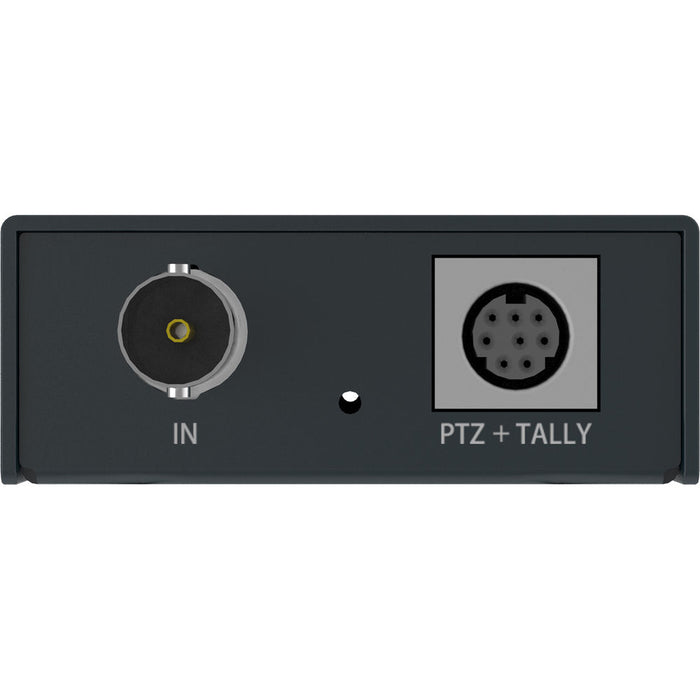

- Input Interface: 3G-SDI (BNC), embedded audio supported
- Loop-through: 3G-SDI for real-time local output
- Video Formats: Up to 1080p60, supports 720p, 1080i
- Network Protocol: NDI|HX and Full NDI support
- Audio: 2-channel analog via 3.5mm jack, embedded SDI audio

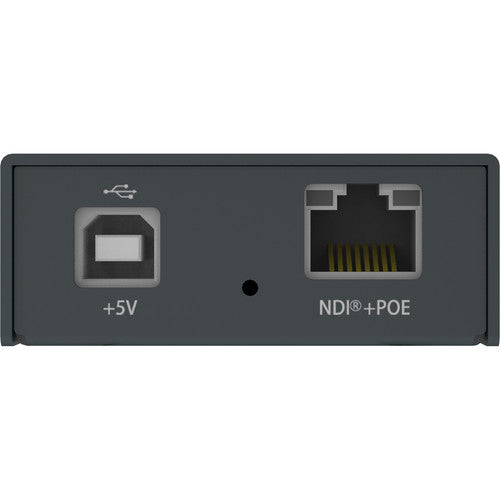

- Ethernet: RJ45 Gigabit Ethernet with PoE support
- Control Interface: Web GUI, Telnet, and HTTP APIs
- Power Supply: PoE or external USB power (5V/2A)
- Dimensions: 117.5mm × 66.7mm × 23.3mm
- Weight: Approximately 165 grams
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
