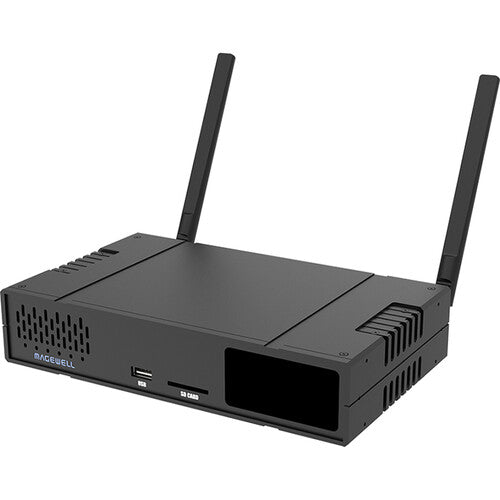

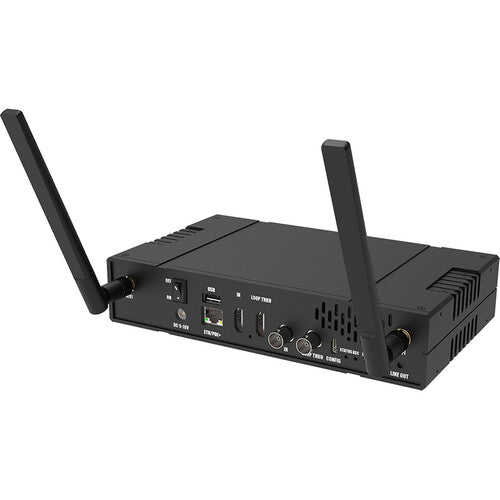

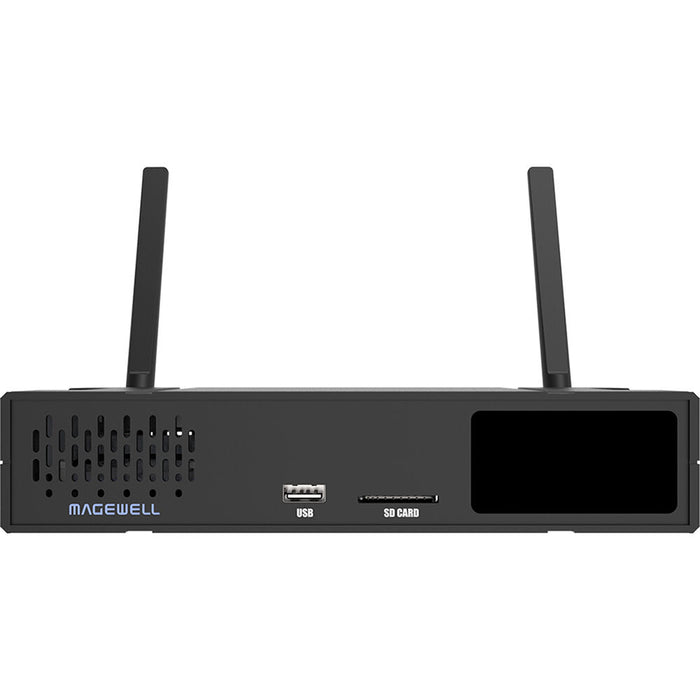

Magewell Ultra Encode AIO
Original price
$799.00
-
Original price
$799.00
Original price
$799.00
$799.00
-
$799.00
Current price
$799.00
| /
The Magewell Ultra Encode AIO 1-Channel Universal Encoder (531300000) is a high-performance, standalone media encoder designed for professional video production, live streaming, and AV over IP workflows. Supporting HDMI, SDI, and IP-based input sources, the Ultra Encode AIO provides unparalleled flexibility in capturing and distributing content. It supports H.264, H.265 (HEVC), and multiple streaming protocols including SRT, RTMP, RTSP, and NDI®|HX for seamless integration with a wide range of platforms. With dual concurrent encoding capabilities and both local recording and network streaming, this encoder is ideal for houses of worship, corporate events, education, sports broadcasting, and more.
The Key Features of the Magewell Ultra Encode AIO 1-Channel Universal Encoder (531300000):
- Supports HDMI, SDI, and IP-based input sources
- H.264 and H.265 (HEVC) encoding for efficient video compression
- Dual concurrent encoding and streaming capabilities
- Multiple streaming protocol support including SRT, RTMP, RTSP, NDI®|HX, and HLS
- Local recording to USB or NAS storage
- Flexible streaming up to 1080p60
- Gigabit Ethernet for high-speed network transmission
- Compact, fanless design for quiet operation
- Web-based interface for easy configuration and monitoring
- Ideal for live events, broadcasting, education, and enterprise AV
The Detailed Specifications for the Magewell Ultra Encode AIO 1-Channel Universal Encoder (531300000):
- Model Number: 531300000
- Video Inputs: 1x HDMI, 1x 3G-SDI, 1x IP (RTSP, SRT, etc.)
- Audio Inputs: Embedded (HDMI/SDI), 1x 3.5mm analog line-in
- Video Resolutions: Up to 1920x1080p60
- Video Encoding: H.264/AVC and H.265/HEVC
- Streaming Protocols: SRT, RTMP/RTMPS, RTSP, HLS, NDI®|HX
- Recording: USB 2.0 storage or network NAS
- Network Interface: 1x Gigabit Ethernet (RJ-45)
- Control Interface: Web UI via Ethernet
- Power Supply: 5V/2A via USB-C power adapter
- Dimensions: 108.9mm × 108.9mm × 23.2mm
- Weight: Approximately 245g
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
