Magewell Ultra Encode HDMI Universal Encoder
Original price
$469.00
-
Original price
$469.00
Original price
$469.00
$469.00
-
$469.00
Current price
$469.00
| /

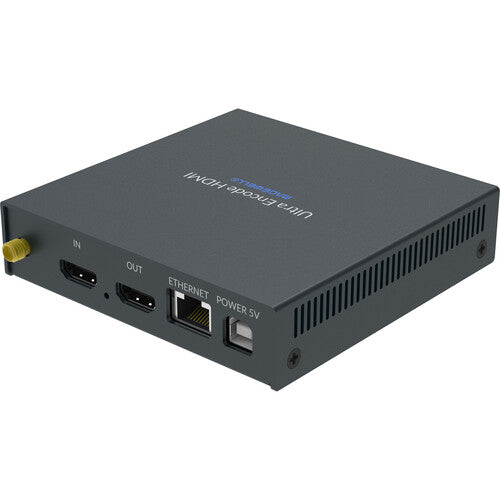

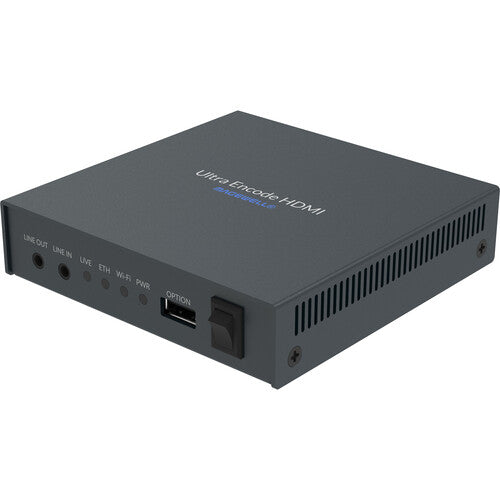

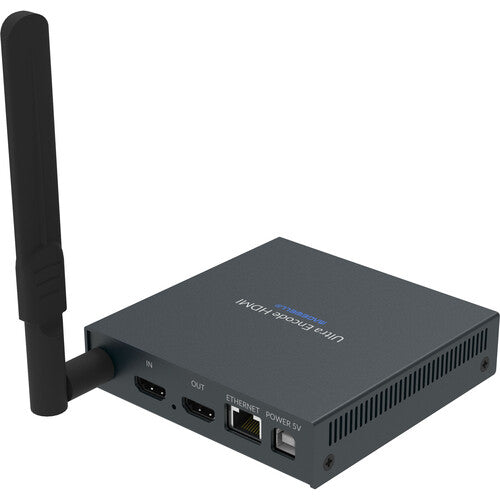

The Magewell Ultra Encode HDMI 1-Channel Universal Encoder (531100000) delivers professional-grade encoding for live streaming, recording, and IP-based workflows. Designed for flexibility and reliability, this compact device supports multiple protocols including RTMP, SRT, HLS, and more—making it perfect for broadcasting, remote production, education, and enterprise applications. With HDMI input, support for up to 1080p60, and both H.264 and H.265 encoding, the Ultra Encode provides powerful functionality in a small, fanless design ideal for any production environment.
The Key Features of the Magewell Ultra Encode HDMI 1-Channel Universal Encoder (531100000):
- HDMI input with support up to 1080p60
- Simultaneous streaming and recording capabilities
- Supports H.264 and H.265 encoding
- Multiple streaming protocols: RTMP, SRT, HLS, TS over UDP, RTP
- Compact, fanless design for silent operation
- On-device buttons and web UI for easy configuration
- Dual network streaming support
- Compatible with a wide range of streaming platforms
The Detailed Specifications for the Magewell Ultra Encode HDMI 1-Channel Universal Encoder (531100000):
- Model Number: 531100000

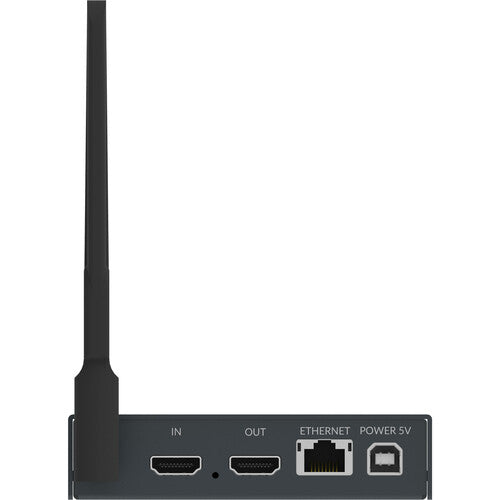

- Video Input: 1x HDMI 1.4a Type A
- Max Input Resolution: 1920x1080 at 60fps
- Video Encoding: H.264 (AVC) and H.265 (HEVC)

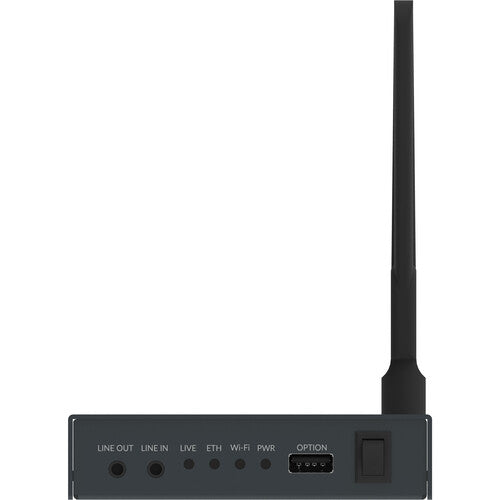

- Audio Input: HDMI embedded and 3.5mm analog
- Audio Encoding: AAC-LC, G.711
- Streaming Protocols: RTMP/RTMPS, SRT, HLS, TS over UDP, RTP, RTSP
- Recording Format: MP4 to USB or network storage
- Control Interface: Web UI, on-device buttons, HTTP APIs
- Network: 1x Gigabit Ethernet
- USB Port: 1x USB 2.0 for recording
- Power: 5V via USB-C (power adapter included)
- Dimensions: 98.2 x 60 x 24.6 mm
- Weight: Approx. 145g
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
