Magewell Ultra Encode SDI Universal Encoder
Original price
$469.00
-
Original price
$469.00
Original price
$469.00
$469.00
-
$469.00
Current price
$469.00
| /
The Magewell Ultra Encode SDI 1-Channel Universal Encoder (531200000) is a high-performance media encoder designed for professionals needing reliable, low-latency encoding for streaming and IP-based workflows. Supporting a range of video formats and protocols, including H.264, H.265 (HEVC), SRT, RTMP, RTSP, and more, this compact yet powerful device is perfect for live streaming, remote production, and AV-over-IP applications. With SDI input support and dual-stream encoding capability, it ensures optimal performance for broadcasters, corporate AV, education, and houses of worship. Its intuitive web UI and flexible configuration options make it easy to deploy in any workflow.
The Key Features of the Magewell Ultra Encode SDI 1-Channel Universal Encoder (531200000):
- Supports H.264 and H.265 (HEVC) encoding for high-quality video compression
- 1-channel 3G-SDI input with loop-through output
- Simultaneous encoding of up to two streams at different bitrates/resolutions
- Compatible with major streaming protocols including RTMP, RTMPS, SRT, HLS, and RTSP
- Compact form factor with low power consumption
- Integrated web UI for easy configuration and monitoring
- Supports NDI|HX2 and NDI|HX3 (with optional license)
- On-board recording to USB storage or network drive
- Dual Ethernet ports for streaming redundancy or separate control network
The Detailed Specifications for the Magewell Ultra Encode SDI 1-Channel Universal Encoder (531200000):

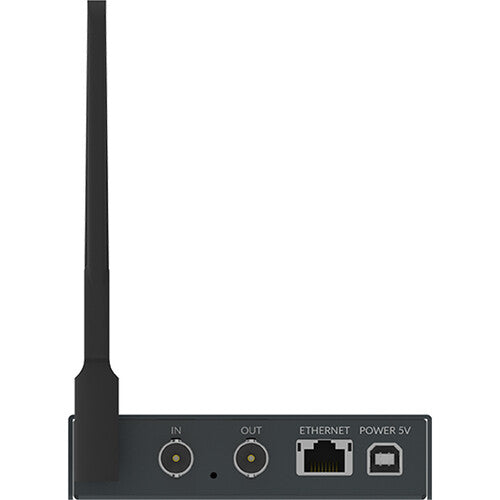

- Video Input: 3G-SDI (BNC), supports up to 1080p60
- Video Output: 3G-SDI loop-through

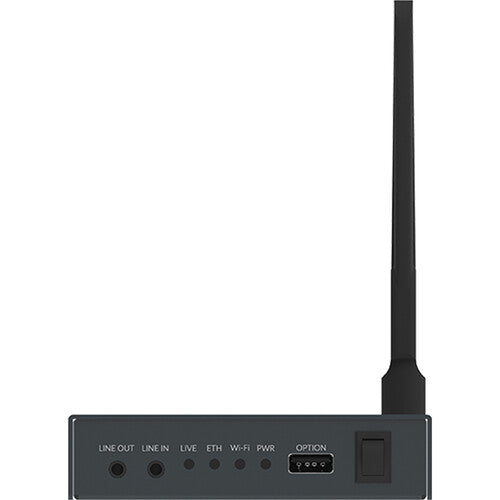

- Audio Input: Embedded SDI audio, 3.5mm analog line-in
- Audio Output: 3.5mm analog line-out
- Encoding Formats: H.264/AVC and H.265/HEVC
- Streaming Protocols: RTMP, RTMPS, SRT, RTSP, HLS, TS over UDP/RTP
- Network Interfaces: Dual Gigabit Ethernet (RJ45)
- Recording Storage: USB 2.0/3.0 external drive, NAS via SMB/CIFS
- Management: Web-based UI, RESTful API, firmware upgradeable
- Dimensions: 117.5mm x 66.7mm x 23.4mm (4.63" x 2.63" x 0.92")
- Power Supply: 5V/2A via USB-C power adapter
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
