Netgear AV Line M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch (XSM4216F)
Availability:
In stock 3-5 days
Original price
$1,855.71
-
Original price
$1,855.71
Original price
$1,855.71
$1,855.71
-
$1,855.71
Current price
$1,855.71
| /
MODEL: M4250-16XF
SKU: XSM4216F-100NAS

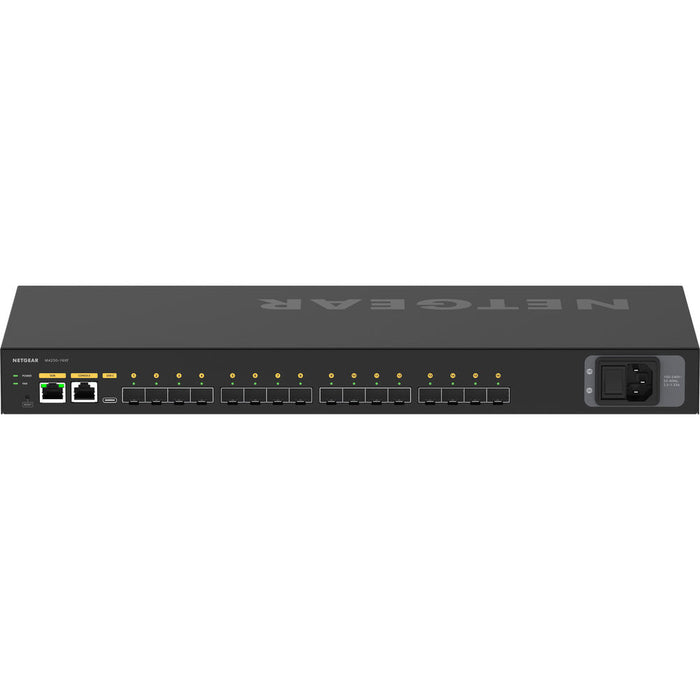

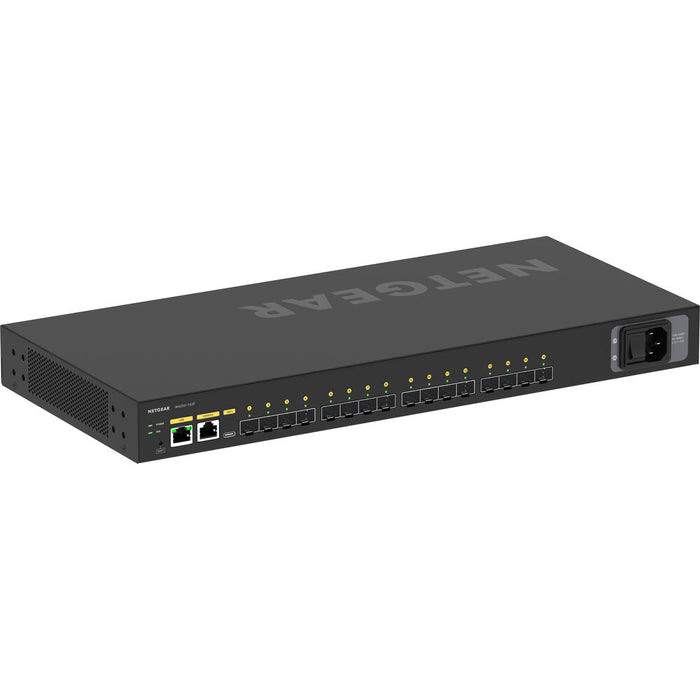

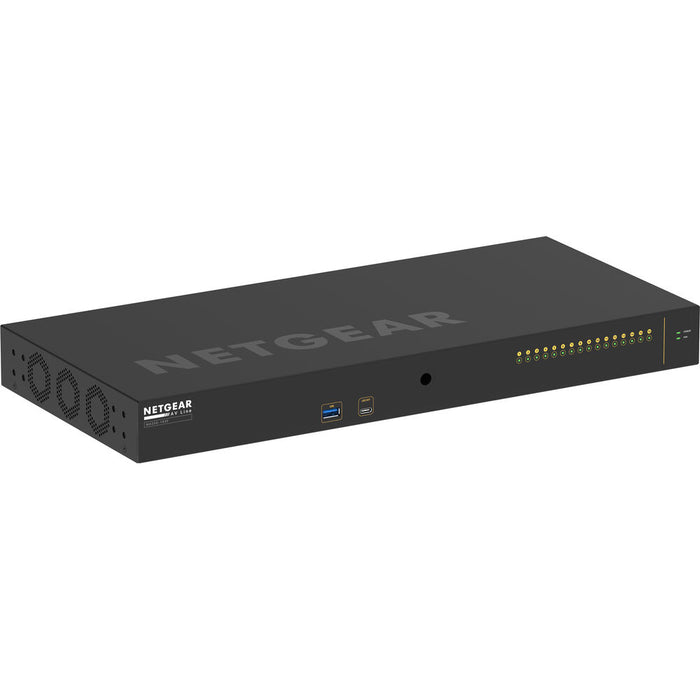

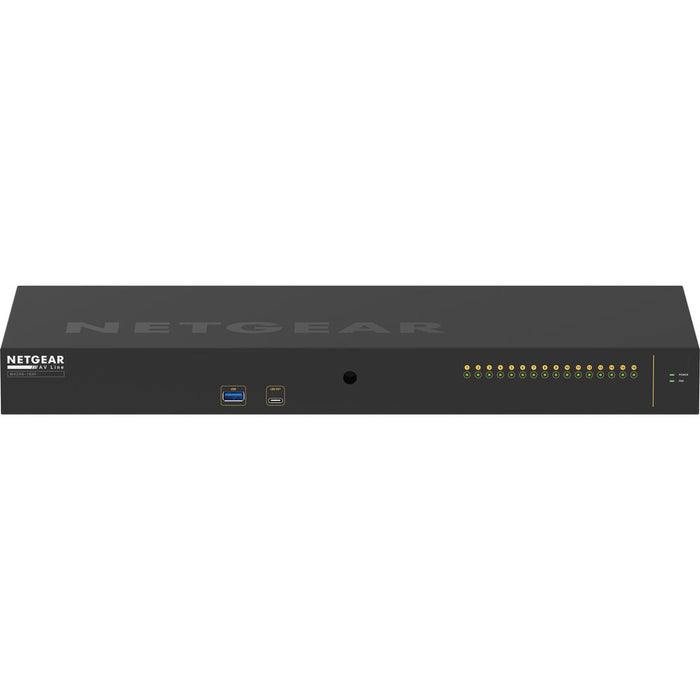

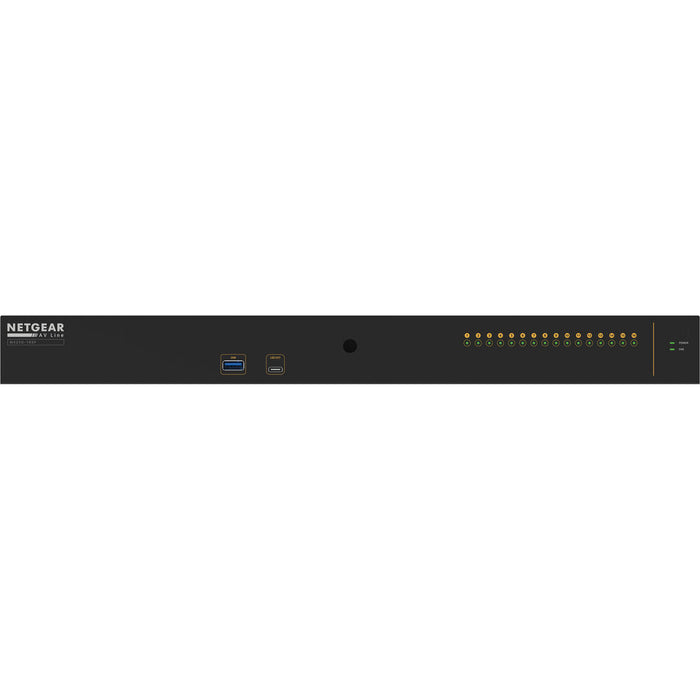

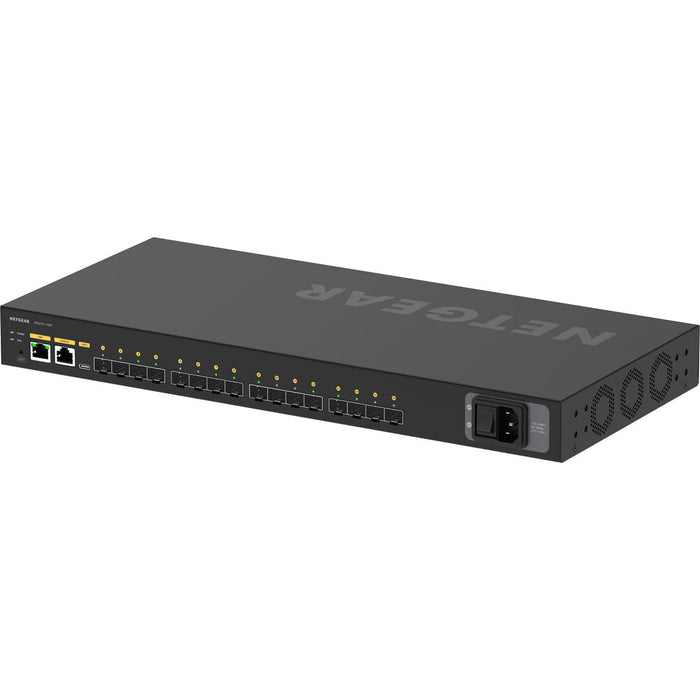

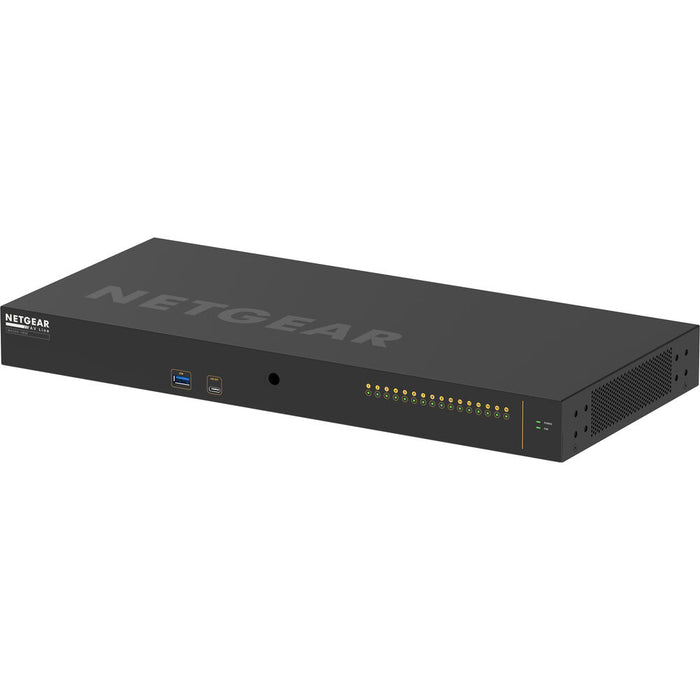

The NETGEAR AV Line M4250-16XF (XSM4216F) is a fully managed switch engineered specifically for audio and video over IP (AV over IP) applications. With 16 dedicated 1G/10G SFP+ fiber ports, this switch ensures high-performance connectivity tailored to the unique demands of AV environments. Its design integrates seamlessly into AV racks, featuring rear-facing ports for clean installations. The M4250 series offers an AV-centric user interface, simplifying configuration and management for AV professionals.
The Key Features of the NETGEAR AV Line M4250-16XF (XSM4216F):
- Dedicated AV Design: Developed with input from AV professionals to meet the specific requirements of AV over IP deployments.
- High-Performance Connectivity: Sixteen 1G/10G SFP+ ports provide robust and flexible networking options for various AV applications.
- User-Friendly AV Interface: An intuitive web-based GUI designed for AV installations simplifies setup and management.
- Flexible Mounting Options: Reversible mounting with included rackmount ears allows for ports to be front-facing if desired.
- Silent Operation: Software-controlled fan adjustments enable quiet or fanless operation, depending on ambient temperature and PoE loads.
The Detailed Specifications for the NETGEAR AV Line M4250-16XF (XSM4216F):
- Model Number: XSM4216F-100NAS

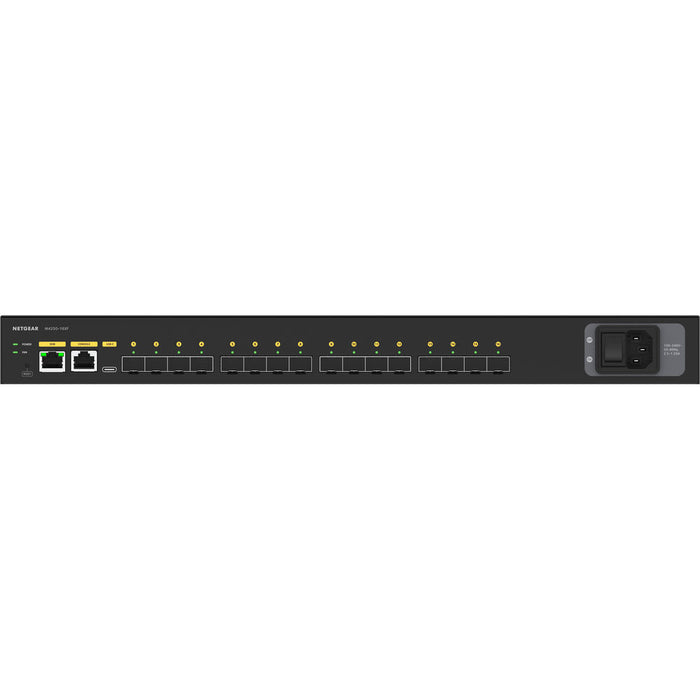

- Port Configuration: 16 x 1G/10G SFP+ ports
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.08 Mpps
- Physical Dimensions: 440 x 200 x 43.2 mm
- Weight: 2.80 kg (6.17 lbs)
- Mounting Options: Rack-mountable with reversible mounting for front-facing ports
- Management Features: Comprehensive Layer 2 and Layer 3 features, including static routing, RIP, PIM-SM, DM, and SSM multicast routing, DHCP server, and PTPv2 Transparent Clock.
- AVB Support: Yes (AVB license sold separately)
- Power Supply: Internal

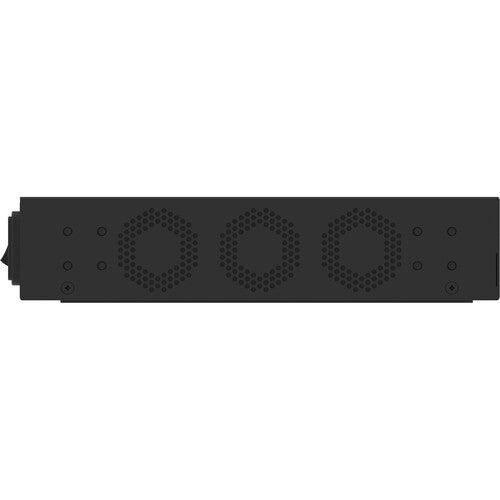

- Cooling: Software-controlled fans with the possibility of fanless operation
