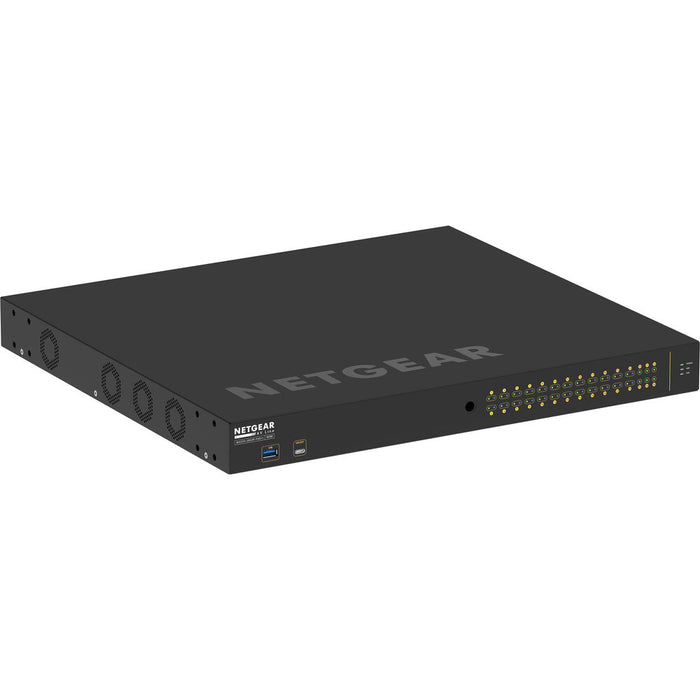

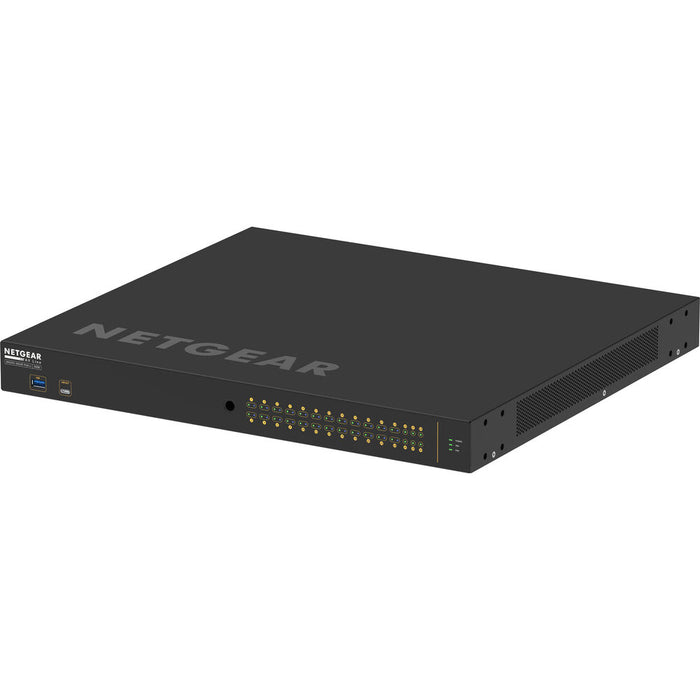

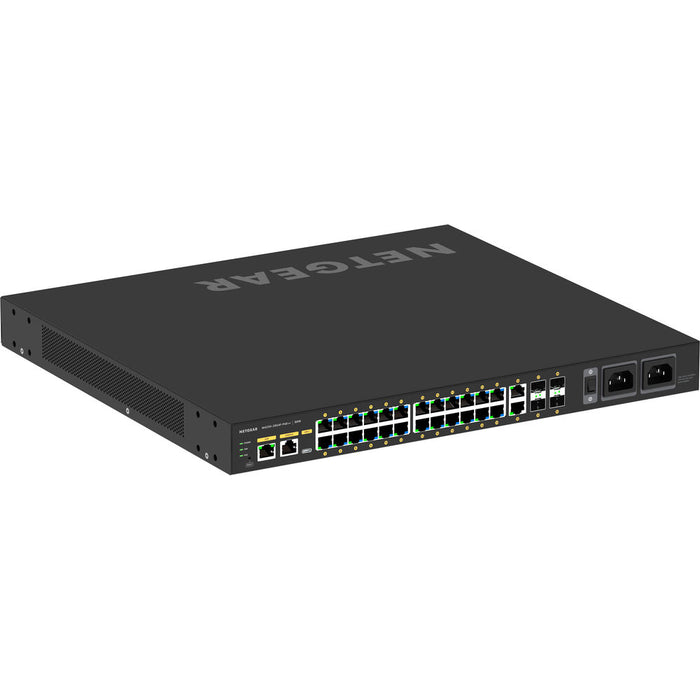

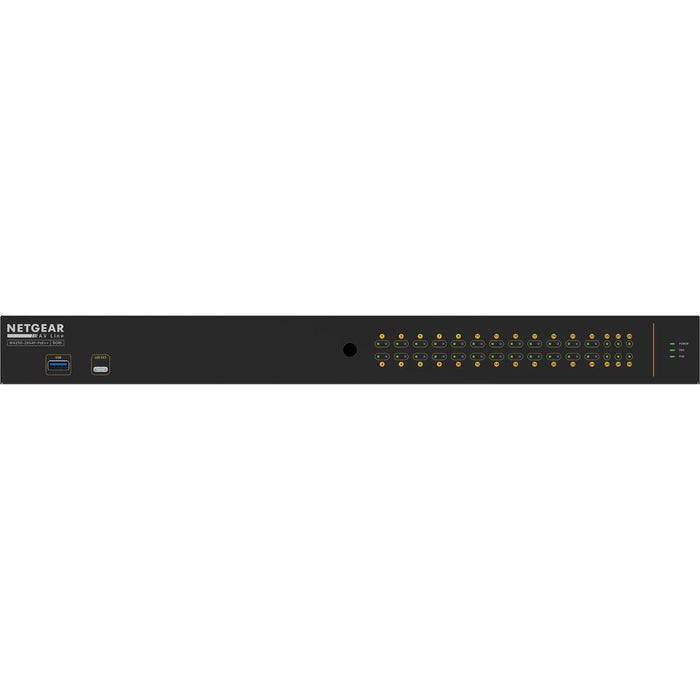

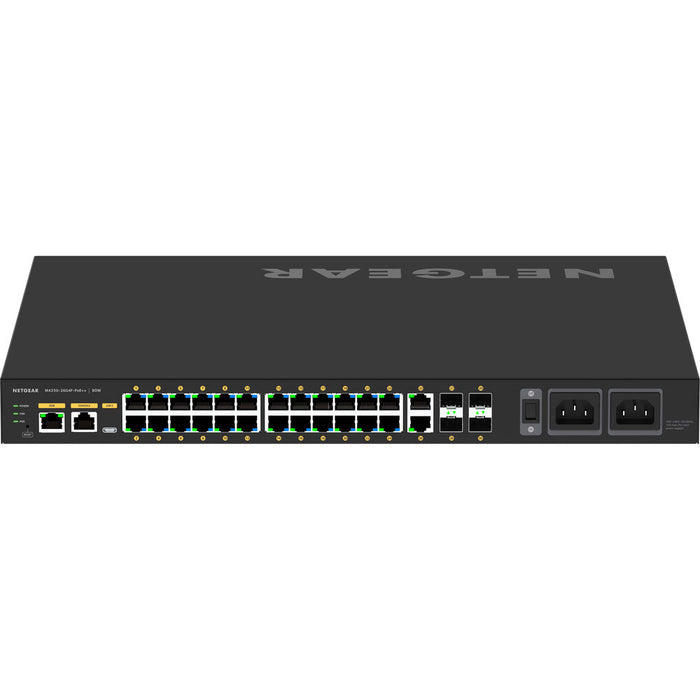

Netgear AV Line M4250-26G4F-PoE++ (GSM4230UP) Managed Switch front and rear view

Netgear AV Line M4250-26G4F-PoE++ (GSM4230UP) Managed Switch

by Netgear
Availability:
In stock 3-5 days
$3,692.86 - $3,692.86
$3,692.86
$3,692.86 - $3,692.86
$3,692.86

MODEL: M4250-26G4F-POE++

SKU: GSM4230UP-100NAS

  • Overview
  • Features
  • Specifications

The NETGEAR AV Line M4250-26G4F-PoE++ (GSM4230UP) is a fully managed switch engineered specifically for audio and video over IP (AV over IP) applications. Featuring 24 Gigabit Ethernet PoE++ ports with a substantial 1440W power budget, it efficiently powers high-demand devices such as PTZ cameras and wireless access points. The switch also includes 2 additional Gigabit Ethernet ports and 4 SFP ports for fiber uplinks, ensuring versatile connectivity options. Designed with rear-facing ports, it integrates seamlessly into AV racks, providing a clean and organized setup. Pre-configured profiles for various AV platforms, including Dante, Q-SYS, and NDI, facilitate out-of-the-box functionality, while an intuitive AV-centric web-based GUI allows for tailored configurations to meet specific installation requirements.

The Key Features of the NETGEAR AV Line M4250-26G4F-PoE++ (GSM4230UP):

  • 24 PoE++ Ports: Each port supports up to 90W, ideal for powering devices like PTZ cameras and high-performance access points.
  • High PoE Budget: Offers a total power budget of 1440W, accommodating multiple high-power devices simultaneously.
  • Additional Connectivity: Includes 2 Gigabit Ethernet ports and 4 SFP ports for fiber uplinks, enhancing network flexibility.
  • AV-Centric Design: Rear-facing ports ensure a clean integration into AV racks, maintaining an organized and professional setup.
  • Pre-Configured AV Profiles: Features built-in profiles for popular AV platforms such as Dante, Q-SYS, AES67, and NDI, simplifying deployment.
  • User-Friendly Interface: The dedicated AV web-based GUI allows for easy customization and management of AV installations.
  • Robust Management Features: Supports Layer 2 and Layer 3 switching, including static routing, RIP, PIM, DHCP Server, and PTPv2, ensuring comprehensive network control.
  • Flexible Mounting Options: Supports both standard and recessed mounting, with the ability to position ports at the front or rear, adapting to various installation scenarios.
  • Silent Operation: Designed for low acoustic levels, making it suitable for noise-sensitive environments.

The Detailed Specifications for the NETGEAR AV Line M4250-26G4F-PoE++ (GSM4230UP):

Primary Port Speed: 1 Gigabit

Total Number of Ports: 30

  • 24 x 1G PoE++ ports
  • 2 x 1G Ethernet ports
  • 4 x SFP ports

PoE Standards Supported: IEEE 802.3af, 802.3at, 802.3bt

PoE Budget: 1440W

Switching Capacity: 60 Gbps

Forwarding Rate: 44.64 Mpps

Jumbo Frame Support: Up to 12 KB

Acoustic Noise Level: Fanless or up to 60 dB at 25°C

Management Features:

  • Dedicated AV web-based GUI
  • Industry-standard CLI, SNMP, sFlow, and RSPAN
  • NETGEAR Auto-Trunk, Auto-LAG, and IGMP Plus

Audio Video Bridging (AVB): Supported with optional license

Mounting Options: Rack-mountable with standard or recessed mounting; ports can face front or rear

Dimensions (W x D x H): 440 x 400 x 43.2 mm

Weight: 6.75 kg (14.87 lbs)

Power Consumption:

  • Without PoE: 48.8W
  • With PoE: Up to 889W (single AC), up to 1734W (dual AC)

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Warranty: NETGEAR ProSAFE Limited Lifetime Hardware Warranty
