The Panasonic AK-HRP1010GJ is a high-performance remote operation panel designed for seamless integration with Panasonic AK series studio cameras. Engineered for broadcast and professional production environments, the AK-HRP1010GJ offers an intuitive interface with a robust selection of control features. Its compact 1/4 rack width and LAN connectivity make it ideal for centralized, IP-based camera control systems. The panel enables precise adjustment of camera settings, including iris, master gain, and color balance, ensuring professional-quality results in demanding studio and live production scenarios. With support for both PoE+ and traditional power options, this remote panel is as versatile as it is reliable.
The Key Features of the Panasonic AK-HRP1010GJ:
- Compatible with Panasonic AK series studio cameras
- 1/4 rack width design for compact installations
- LAN connectivity for IP-based remote camera control
- Support for PoE+ and DC 12V power options
- High-resolution LCD display for detailed status feedback
- Intuitive control knobs and customizable buttons
- Advanced color correction and image parameter adjustments
- Ideal for live broadcast, sports, and studio productions
The Detailed Specifications for the Panasonic AK-HRP1010GJ:
- Model: AK-HRP1010GJ
- Camera Compatibility: Panasonic AK series studio cameras

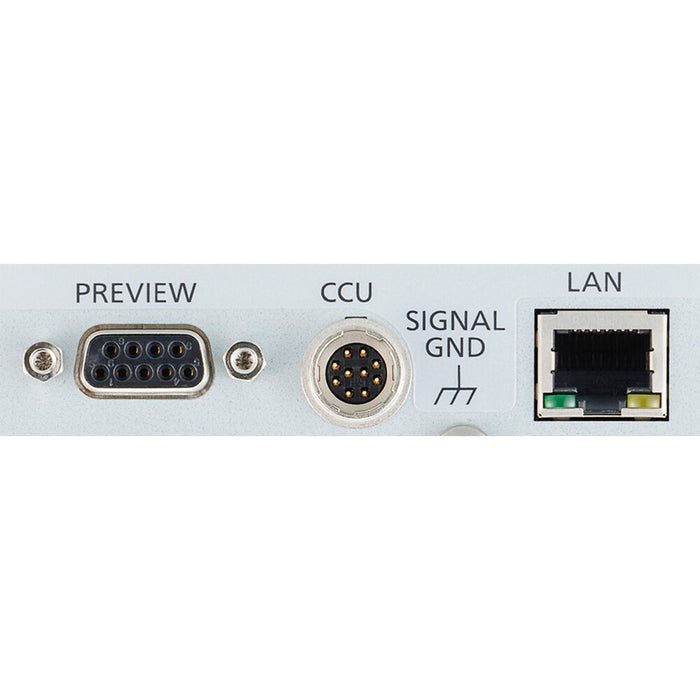

- Control Interface: IP (LAN), Serial
- Display: 3.5-inch high-resolution LCD
- Power Supply: PoE+ (IEEE802.3at), DC 12V (XLR 4-pin)
- Dimensions: Approx. 83 mm (W) × 360 mm (D) × 132 mm (H)
- Weight: Approx. 1.5 kg (3.3 lbs)
- Power Consumption: Approx. 14.0 W
- Assignable Buttons: 10 user-programmable function keys
- Mounting: 1/4 rack size; compatible with standard rack mounts
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Remote Control Functions: Iris, master gain, pedestal, shutter, white balance, detail, gamma, and more
