Panasonic AV-HSW10PJ 3G-SDI/NDI/HDMI 1080p Compact Live Switcher
Original price
$8,633.00
-
Original price
$8,633.00
Original price
$8,633.00
$8,633.00
-
$8,633.00
Current price
$8,633.00
| /
The Panasonic AV-HSW10PJ is a compact, professional-grade live video switcher designed to meet the evolving demands of hybrid and live production environments. Supporting up to 1080p resolution and equipped with 3G-SDI, HDMI, and NDI|HX input compatibility, this versatile unit is ideal for multi-platform broadcasting, streaming, and video production. With intuitive controls, seamless transitions, and a robust feature set, the AV-HSW10PJ is built for users who need high performance in a space-saving design. Whether used in churches, schools, corporate events, or streaming studios, it delivers reliable and high-quality live switching with minimal setup time.
The Key Features of the Panasonic AV-HSW10PJ:
- Supports 3G-SDI, HDMI, and NDI|HX video inputs
- Compatible with full HD 1080/60p resolution
- Six video input channels and three output channels
- Audio mixing with embedded audio support
- Remote control via LAN or USB interface
- Compact and portable design for tight spaces
- Multiview output with customizable layout
- Ideal for hybrid, live, and streaming workflows
The Detailed Specifications for the Panasonic AV-HSW10PJ:

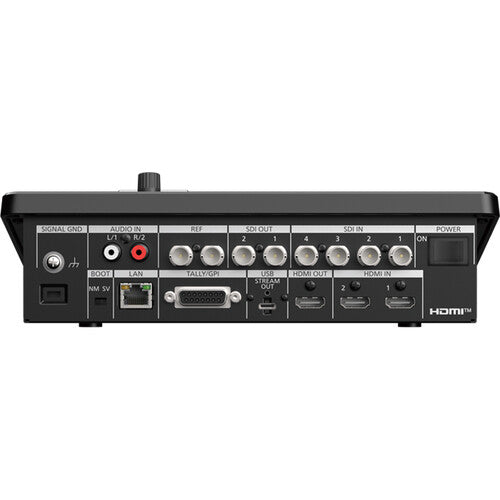

- Video Inputs: 4 x 3G-SDI, 2 x HDMI, NDI|HX over LAN
- Video Outputs: 2 x 3G-SDI, 1 x HDMI
- Video Format: 1080/59.94p, 1080/50p, 1080i, 720p
- Audio Inputs: Embedded SDI/HDMI, 1 x Stereo Mini Jack
- Audio Output: 1 x Stereo Mini Jack, Embedded SDI/HDMI
- LAN Port: RJ45, 1000BASE-T for NDI and remote control
- Control Interface: USB, LAN (Web GUI supported)
- Multiview Output: HDMI with customizable screen layouts
- Power Supply: 12V DC (AC adapter included)
- Dimensions: Approx. 8.3" x 1.8" x 5.4" (W x H x D)
- Weight: Approx. 2.2 lbs (1 kg)
