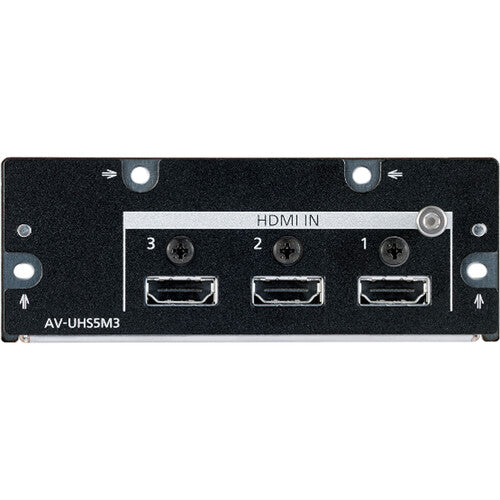

Panasonic AV-UHS5M3G 4K/HD SDI Input Expansion Card

Panasonic AV-UHS5M3G HDMI Input Expansion Card for AV-UHS500 Switcher

by Panasonic
Availability:
Low stock
$5,618.00 - $5,618.00
$5,618.00
$5,618.00 - $5,618.00
$5,618.00

SKU: AV-UHS5M3G

  • Overview
  • Features
  • Specifications

The Panasonic AV-UHS5M3G is an SDI input expansion card designed for the AV-UHS500 4K live video switcher. This high-performance module enables an additional four 3G/HD-SDI video inputs, allowing for greater connectivity and workflow flexibility in both HD and 4K live production environments. Supporting multi-format video signals, this card is ideal for professional broadcast studios, live events, and hybrid production settings. With plug-and-play integration, it seamlessly extends the capabilities of your AV-UHS500 unit without requiring major configuration changes.

The Key Features of the Panasonic AV-UHS5M3G:

  • Adds 4 additional 3G/HD-SDI input channels to AV-UHS500
  • Supports multi-format input: 3G-SDI Level A/B, HD-SDI
  • Plug-and-play installation for seamless integration
  • Compatible with both HD and 4K workflows
  • Ideal for live production, broadcast, and event streaming
  • Compact and robust for professional environments

The Detailed Specifications for the Panasonic AV-UHS5M3G:

  • Model: AV-UHS5M3G
  • Type: SDI Input Expansion Card
  • Compatible Switcher: Panasonic AV-UHS500
  • Inputs: 4 x 3G/HD-SDI (BNC connectors)
  • Supported Formats: 1080/59.94p, 1080/50p, 1080/59.94i, 720/59.94p, and more
  • SDI Signal Type: 3G-SDI (Level A/B), HD-SDI
  • Installation: User-installable via card slot
  • Dimensions: Approx. 120 x 20 x 170 mm (W x H x D)
  • Weight: Approx. 200 g
  • Power Consumption: Supplied via mainframe (AV-UHS500)
