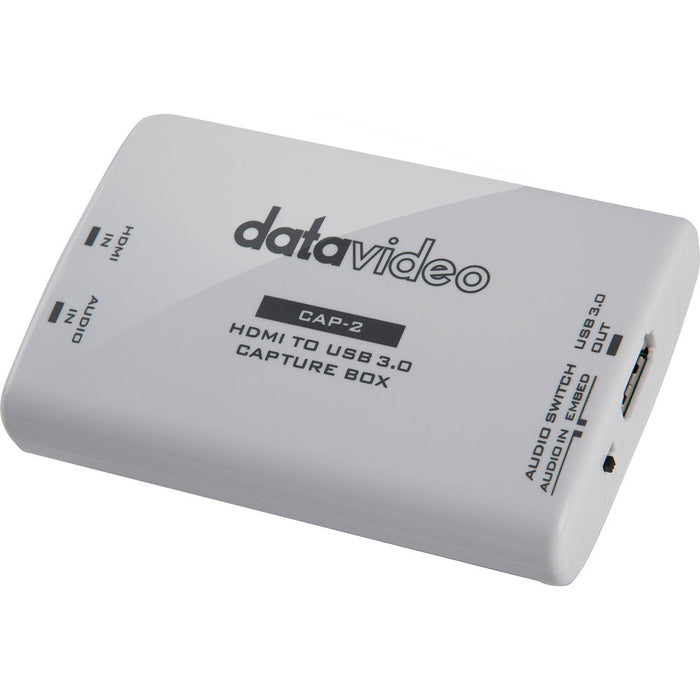

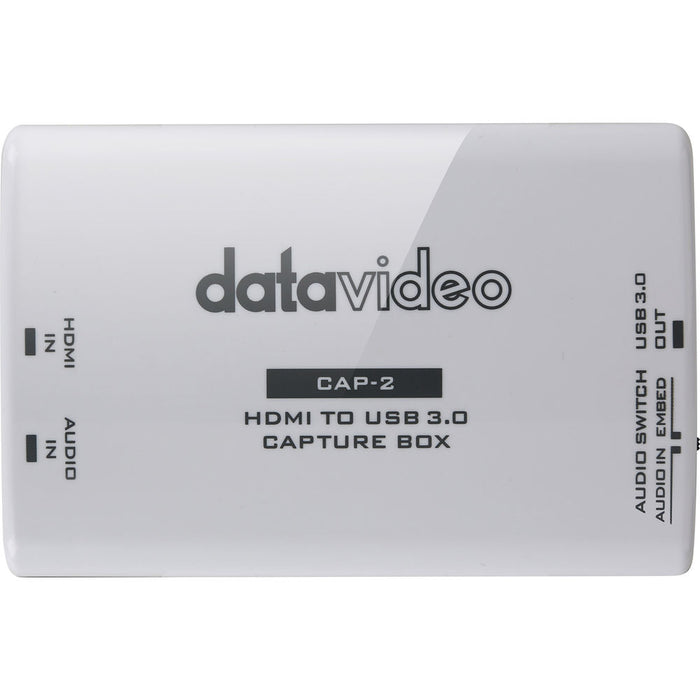

Data Video CAP-2 HD Capture Box with HDMI and SDI Inputs

Data Video CAP-2 HD Capture Box

by Data Video
Availability:
In stock 3-5 days
$279.00 - $279.00
$279.00
$279.00 - $279.00
$279.00

SKU: CAP-2
  • Overview
  • Features
  • Specifications

The Data Video CAP-2 is a versatile HD capture box designed for capturing video and audio from HDMI and SDI sources. It provides an efficient solution for live streaming, video production, and recording by converting video signals into a digital format compatible with various devices and platforms. The CAP-2 supports resolutions up to 1080p and ensures high-quality video capture with minimal latency, making it an ideal choice for professional video applications.

The Key Features of the Data Video CAP-2:

  • Supports HDMI and SDI input signals
  • Captures video up to 1080p resolution
  • Compact and portable design for easy integration
  • Zero-latency video capture for live streaming and recording
  • Plug-and-play installation, no additional software required
  • Ideal for use with video production, live streaming, and recording applications

The Detailed Specifications for the Data Video CAP-2:

  • Input Connections: 1 x HDMI, 1 x SDI
  • Output Connection: USB 3.0
  • Video Format Support: HDMI (1080p) and SDI (1080p)
  • Video Capture Resolution: 1080p (maximum)
  • Audio Support: Embedded audio over HDMI and SDI
  • Latency: Zero-latency capture
  • Dimensions: 4.5 x 2.5 x 1.5 inches
  • Weight: 0.5 lbs
  • Power Source: Powered via USB 3.0
  • Compatibility: Windows, macOS, Linux

The CAP-2 supports video from high quality sources better than your typical webcam. Using this device, you can capture video from a professional DSLR camera, video camera, or even a GoPro to send a video signal to a computer via USB 3.0.
