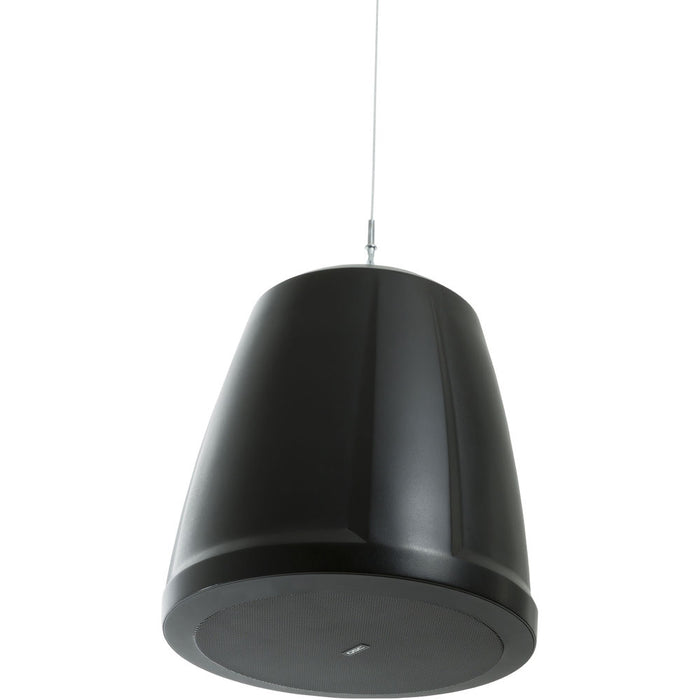

The Q-SYS AD-P4T-B is a high-performance 4-inch two-way pendant mount loudspeaker engineered for superior sound distribution in open-ceiling applications. Designed with both aesthetics and functionality in mind, it delivers clear, full-range audio for background music, paging, and voice reinforcement. With its sleek black enclosure, the AD-P4T-B seamlessly integrates into modern commercial environments, making it ideal for restaurants, retail spaces, airports, and other public venues.

The Key Features of the Q-SYS AD-P4T-B:

• Premium Audio Quality – High-performance 4" woofer and 0.75" compression driver provide clear, balanced sound.
• Pendant Mount Design – Optimized for open-ceiling installations, delivering uniform sound dispersion.
• Easy Integration – Designed for seamless integration with Q-SYS systems for networked audio applications.
• Consistent Coverage – 150° conical coverage pattern ensures even sound distribution across spaces.
• Flexible Impedance Settings – Supports both 70V/100V and low-impedance (8Ω) operation.
• Durable Construction – High-quality black enclosure blends into modern commercial interiors.
• Effortless Installation – Includes suspension hardware for easy and secure mounting.

The Detailed Specifications for the Q-SYS AD-P4T-B:

• Speaker Type: 4" Two-Way Pendant Mount Loudspeaker
• Woofer: 4" (102 mm) polypropylene cone with rubber surround
• Tweeter: 0.75" (19 mm) compression driver
• Frequency Response: 65 Hz – 20 kHz (-10 dB)
• Sensitivity: 87 dB (1W/1m)
• Coverage Pattern: 150° conical
• Impedance: 8Ω (bypass mode)
• Transformer Taps: 70V: 30W, 15W, 7.5W, 3.8W | 100V: 30W, 15W, 7.5W
• Maximum SPL: 107 dB (peak)
• Enclosure Material: High-impact ABS plastic, black finish
• Grille: Powder-coated aluminum, black
• Mounting Hardware: Includes steel suspension cables and safety tether
• Dimensions: 9.6" (245 mm) height x 7.2" (183 mm) diameter
• Weight: 5.5 lbs (2.5 kg)
• Certifications: UL 1480A, CE, RoHS compliant
