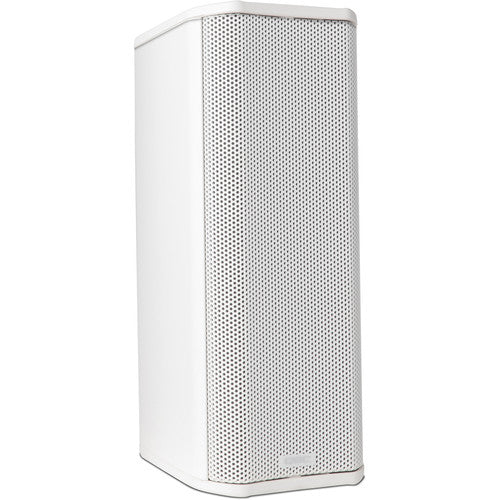

The Q-SYS AD-S402T-W is a premium 4-inch column surface-mount loudspeaker designed for high-performance audio applications. Whether used in hospitality, retail, corporate, or outdoor venues, this compact yet powerful speaker ensures clear, natural sound reproduction with broad coverage. Featuring weather-resistant construction, the AD-S402T-W is well-suited for both indoor and outdoor environments. It integrates seamlessly with Q-SYS platforms, providing superior sound quality and flexible mounting options.

The Key Features of the Q-SYS AD-S402T-W:

• High-Performance Audio – Four 2.5-inch (64 mm) LF transducers deliver exceptional clarity and speech intelligibility.
• Wide Coverage – 140° horizontal dispersion ensures even sound distribution in large spaces.
• Weather-Resistant Design – IP54-rated enclosure for durability in outdoor applications.
• Transformer Taps & Low Impedance – Supports both 70V/100V distributed systems and 8Ω direct operation.
• Easy Installation – Includes mounting hardware for flexible positioning.
• Seamless Q-SYS Integration – Optimized for use with Q-SYS audio ecosystems.

The Detailed Specifications for the Q-SYS AD-S402T-W:

Speaker Type: 4-inch column surface-mount loudspeaker

Transducers: (4) 2.5-inch (64 mm) low-frequency drivers

Frequency Response: 110 Hz – 18 kHz (-10 dB)

Nominal Impedance: 8Ω

Transformer Taps:

• 70V: 30W, 15W, 7.5W, 3.75W
• 100V: 30W, 15W, 7.5W

Sensitivity: 91 dB SPL at 1W/1m

Max SPL: 109 dB (peak)

Coverage Angle: 140° horizontal x 20° vertical

Enclosure Material: ABS plastic with aluminum grille

IP Rating: IP54 (weather-resistant)

Dimensions: 15.8” (H) × 3.9” (W) × 4.9” (D)

Weight: 5.7 lbs (2.6 kg)

Color Options: White (AD-S402T-W), Black (AD-S402T-B)

Mounting Options: Includes surface-mount bracket
