Q-SYS CX-Q-2K4 four-channel network amplifier, designed for high-performance audio distribution with Q-SYS Ecosystem integration.

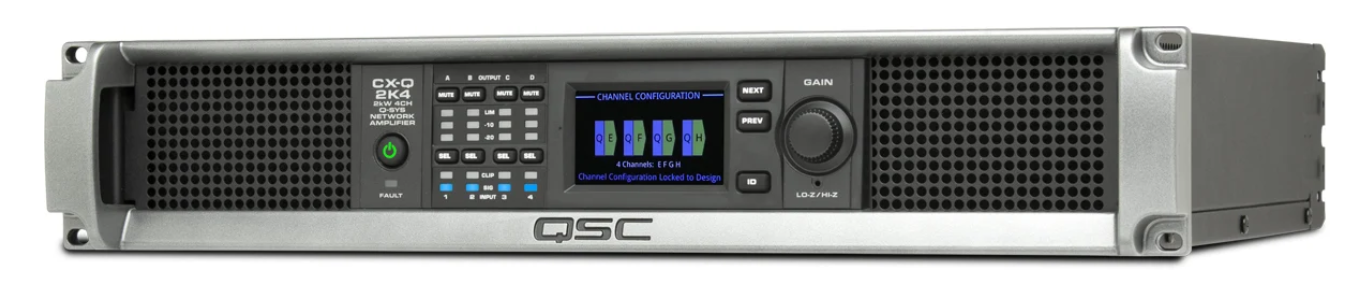

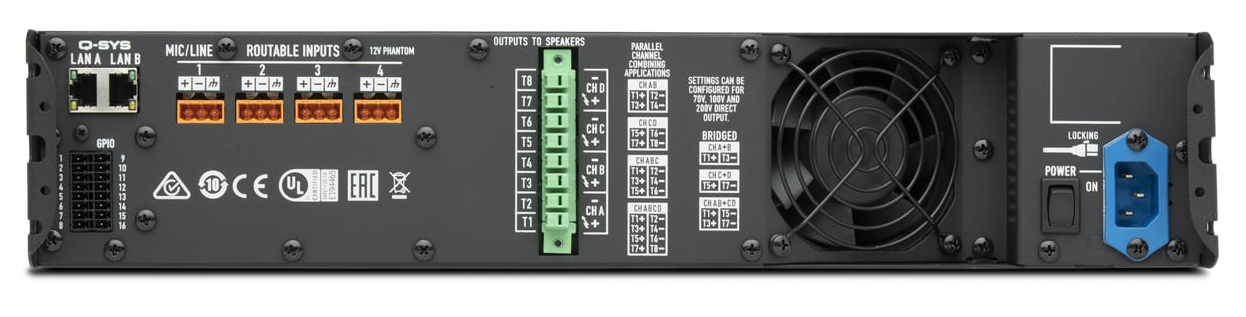

Q-SYS CX-Q-2K4 Four-Channel Network Amplifier

by Q-SYS
Availability:
In stock 3-5 days
$4,477.61 - $4,477.61
$4,477.61
$4,477.61 - $4,477.61
$4,477.61

SKU: CX-Q-2K4

The Q-SYS CX-Q-2K4 is a powerful, high-efficiency four-channel network amplifier designed for seamless integration within the Q-SYS Ecosystem. Ideal for commercial audio installations, this amplifier leverages QSC’s patented Class-D technology, providing reliable and scalable audio amplification. With flexible output options, network-based control, and advanced energy management, the CX-Q-2K4 delivers pristine audio performance for a variety of applications, including conference rooms, auditoriums, retail spaces, and houses of worship.

The Key Features of the Q-SYS CX-Q-2K4:

  • Four-channel network amplifier delivering up to 2000 watts
  • Seamless integration with Q-SYS Ecosystem for unified control and monitoring
  • Class-D power amplification for superior efficiency and low heat dissipation
  • FlexAmp™ technology enables flexible power distribution across channels
  • Network-based control and monitoring via Q-SYS Designer Software
  • Comprehensive DSP and loudspeaker management for optimized audio performance
  • Energy-efficient design with automatic standby mode to reduce power consumption
  • Robust connectivity with Dante, AES67, and analog input compatibility

The Detailed Specifications for the Q-SYS CX-Q-2K4:

General Specifications

  • Model: CX-Q-2K4
  • Amplifier Type: Class-D
  • Number of Channels: 4
  • Total Power Output: 2000W
  • Impedance Compatibility: 2Ω, 4Ω, 8Ω, and 70V/100V configurations
  • Cooling System: Variable speed fan, front-to-back airflow

Connectivity & Control

  • Network Audio Support: Dante, AES67, Q-SYS
  • Control Interface: Q-SYS Designer Software, Web UI, API
  • Inputs: 4x Analog Inputs, 4x Digital Network Inputs
  • Outputs: 4x Speaker Outputs (Euroblock)

DSP & Audio Processing

  • Integrated DSP: Yes, with loudspeaker management
  • Adjustable Crossover, EQ, and Limiting
  • FlexAmp™ Technology: Dynamically distributes power between channels
  • Signal-to-Noise Ratio (SNR): >100 dB

Physical & Environmental

  • Rack Mountable: Yes, 2U height
  • Dimensions (W x H x D): 19” x 3.5” x 15” (approx.)
  • Weight: 24 lbs (approx.)
  • Power Supply: Universal power supply with EnergyStar compliance

Certifications & Compliance

  • EnergyStar Certified
  • RoHS & CE Compliant
  • UL Listed
