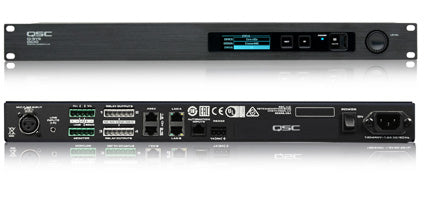

The Q-SYS DCIO-H 1U Digital Cinema I/O Processor is a high-performance audio interface designed to seamlessly integrate with Q-SYS Ecosystem solutions. It serves as a bridge between digital cinema servers, amplifiers, and loudspeakers, delivering robust signal processing and network-based audio distribution. With HDMI audio de-embedding, AES67 and analog connectivity, and Q-LAN integration, the DCIO-H is ideal for modern digital cinema installations requiring flexibility, reliability, and superior sound quality.

The Key Features of the Q-SYS DCIO-H 1U Digital Cinema I/O Processor:

• 1U Rackmount Design – Compact, space-saving form factor for easy integration into cinema audio racks.
• HDMI Audio De-embedding – Extracts audio from HDMI signals for seamless processing.
• AES67 and Analog Audio Support – Ensures compatibility with various digital and analog audio systems.
• Network-Based Q-LAN Integration – Enables easy configuration, monitoring, and control via Q-SYS Core processors.
• 8-Channel Digital and Analog Outputs – Supports multiple speaker configurations for immersive sound.
• Flexible I/O Options – Includes balanced analog outputs, AES digital inputs, and networked audio for maximum versatility.
• Seamless Q-SYS Ecosystem Compatibility – Works with Q-SYS Cores, amplifiers, and peripherals for an optimized cinema experience.
• Reliable and Low-Latency Performance – Designed for high-quality, synchronized audio output in professional cinema environments.

The Detailed Specifications for the Q-SYS DCIO-H 1U Digital Cinema I/O Processor:

Physical & Design

• Form Factor: 1U rackmount
• Dimensions: Standard 19-inch width, optimized for cinema racks
• Weight: Approx. 6 lbs (2.7 kg)

Audio Connectivity

Input Options:

• HDMI audio de-embedding (multi-channel support)
• AES67 network audio
• AES/EBU digital inputs
• Balanced analog inputs

Output Options:

• 8-channel balanced analog outputs
• 8-channel AES digital outputs
• AES67 networked audio output

Network & Control

• Protocol Support: Q-LAN, AES67
• Network Ports: 1 x RJ-45 for Q-LAN and AES67 audio networking
• Control Interface: Managed through Q-SYS Designer software

Performance & Processing

• Latency: Ultra-low latency for real-time cinema audio applications
• Sample Rate Support: 48 kHz / 96 kHz
• Audio Resolution: 24-bit digital processing

Power & Environmental

• Power Supply: Universal AC power input
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Cooling: Passive cooling design for silent operation
