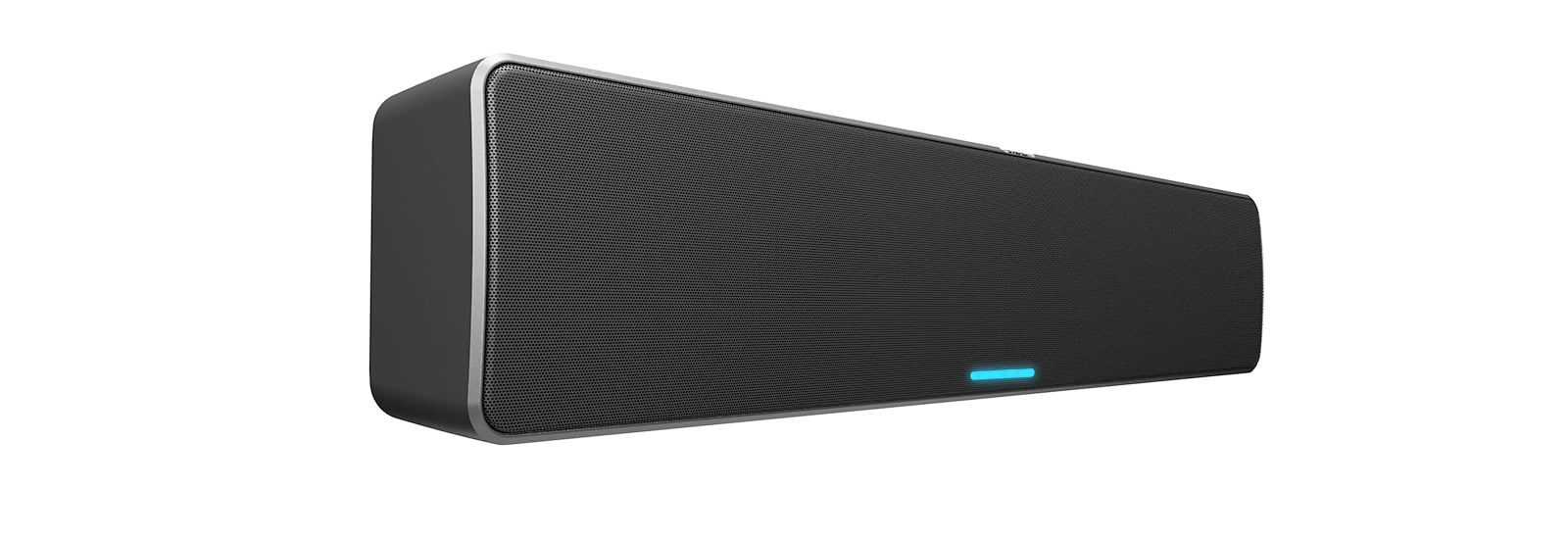

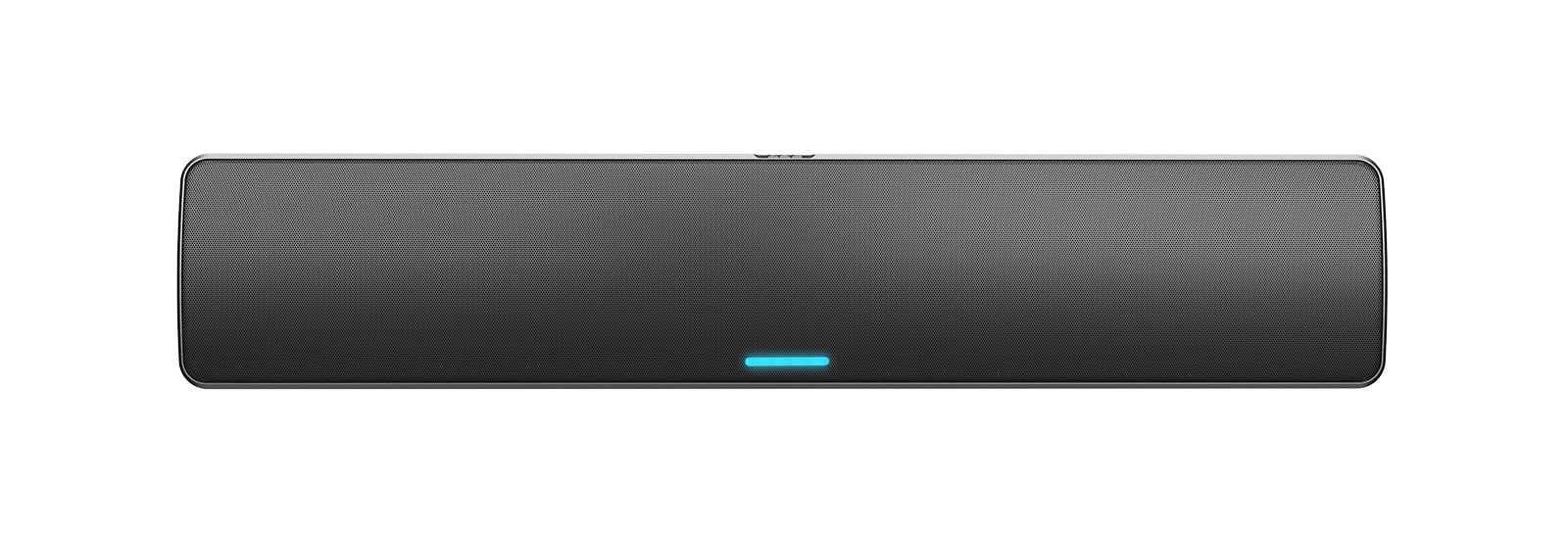

The Q-SYS NL-SB42 is a network-powered over Ethernet (PoE) soundbar designed to seamlessly integrate with the Q-SYS Ecosystem. It features a two-way design with a 3.5-inch paper cone woofer and a 0.75-inch silk dome tweeter, providing a wide off-axis response optimized for both speech and music reproduction. Its versatile mounting options support both horizontal and vertical orientations, making it suitable for various high-value spaces. With a single Ethernet cable handling power, data, and control, the NL-SB42 simplifies installation and reduces hardware requirements. As a native Q-SYS product, it offers drag-and-drop integration and comprehensive management through Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager.

The Key Features of the Q-SYS NL-SB42:

• Two-Way Design: Incorporates a 3.5-inch woofer and a 0.75-inch tweeter for enhanced audio clarity.
• Wide Off-Axis Response: Ensures consistent audio coverage across the listening area.
• Power over Ethernet (PoE): Simplifies installation with a single cable for power, data, and control.
• Flexible Mounting Options: Supports both horizontal and vertical installations to suit various room configurations.
• Programmable RGB Light Bar: Provides visual status indicators customizable via Q-SYS Designer Software.
• Consistent Tonal Characteristics: Matches the NL Series family, allowing for mixed form factor installations without audio disparity.
• Intrinsic Correction™: Q-SYS integrates loudspeaker voicings to simplify the tuning process.
• Comprehensive Management: Full control and monitoring through Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager.

The Detailed Specifications for the Q-SYS NL-SB42:

Loudspeaker Type: Network PoE soundbar for Q-SYS

Low-Frequency Transducer: 3.5-inch (88.9 mm) paper cone woofer

High-Frequency Transducer: 0.75-inch (19.05 mm) silk dome tweeter

Effective Frequency Range: 110 Hz – 20 kHz

Rated Noise Power: 12 W (PoE), 24 W (PoE+)

Rated Coverage: 150° horizontal, 160° vertical (1 kHz – 10 kHz)

Directivity Factor (Q): 2.7

Directivity Index (DI): 4.2 dB

Maximum Continuous SPL: 90 dB (PoE), 93 dB (PoE+)

Maximum Peak SPL: 106 dB (PoE), 107 dB (PoE+)

Mounting Options: Supports horizontal and vertical orientations; includes quick-install wall bracket with 3 cm of fine adjustment

Dimensions:

• Product Dimensions: 20.4 inches (width) x 3.97 inches (height) x 2.87 inches (depth)
• Shipping Dimensions: 23.8 inches (width) x 7.4 inches (height) x 7.36 inches (depth)

Weight:

• Net Weight: 3.86 pounds (1.75 kilograms)
• Shipping Weight: 7.86 pounds (3.57 kilograms)
