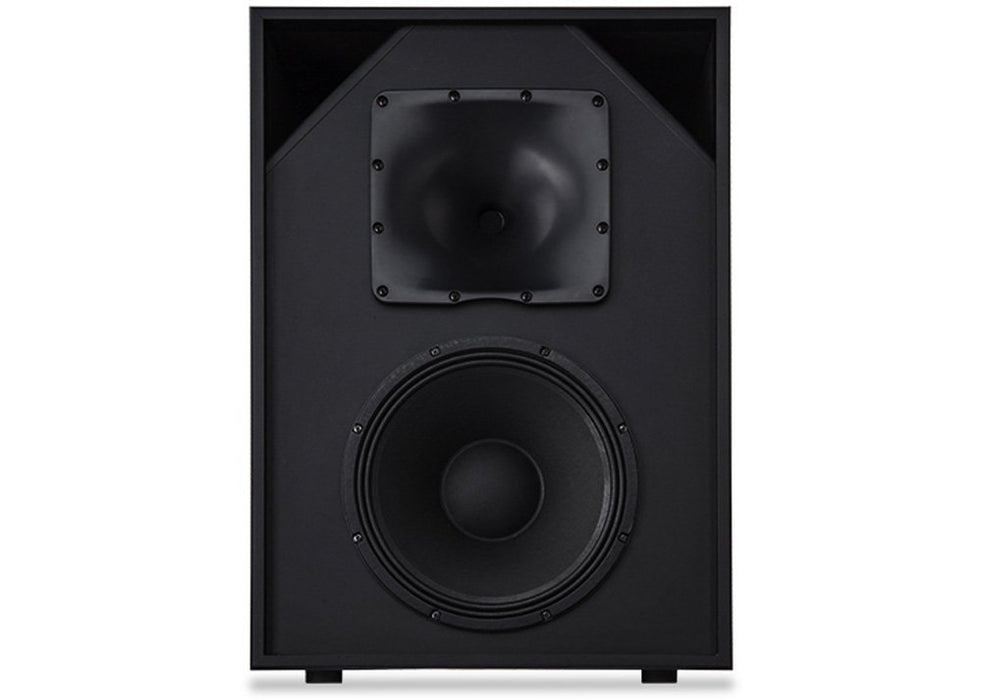

The Q-SYS SC-1120 is a high-quality, cost-effective screen channel loudspeaker designed specifically for small cinema rooms. As part of the DCS Digital Cinema Series, it delivers exceptional audio performance for cinemas with a maximum screen-to-last-row distance of 35 feet (11 meters). Its compact, single-enclosure design requires less than 12 inches (305 mm) of space behind the screen, making it ideal for installations where space is limited.

The Key Features of the Q-SYS SC-1120:

• Optimized for Smaller Cinemas: Designed for rooms up to 35 feet (11 meters) in length, ensuring clear and powerful sound throughout the space.
• Compact Single-Enclosure Design: Combines both low and high-frequency drivers in one enclosure, simplifying installation and reducing space requirements behind the screen.
• Passive Crossover Network: Requires only one amplifier channel, offering a cost-effective solution without compromising audio quality.
• 90° Axisymmetric Horn: Provides uniform coverage, ensuring consistent sound quality across the entire audience area.
• High-Quality Transducers: Equipped with a 12-inch (305 mm) woofer featuring a 2.5-inch (63 mm) voice coil and a 1.75-inch (44 mm) voice coil high-frequency compression driver for exceptional audio reproduction.

The Detailed Specifications for the Q-SYS SC-1120:

Frequency Range (-10 dB): 48 Hz to 19 kHz

Rated Noise Power: 300 W

Sensitivity (2.83 V at 1 m): 95.5 dB

Maximum Continuous SPL: 120 dB

Maximum Peak SPL: 126 dB

Impedance: 8Ω

Maximum Recommended Amplifier Power: 600 W

Transducers:

• Low Frequency (LF): 12-inch (305 mm) woofer with 2.5-inch (63 mm) voice coil
• High Frequency (HF): Compression driver with 1.75-inch (44 mm) voice coil

Enclosure Material: MDF with non-reflective vinyl wrap

Dimensions (H x W x D): 27.2 x 19.5 x 11.7 inches (690 x 497 x 297 mm)

Net Weight: 51 lb (23.2 kg)
