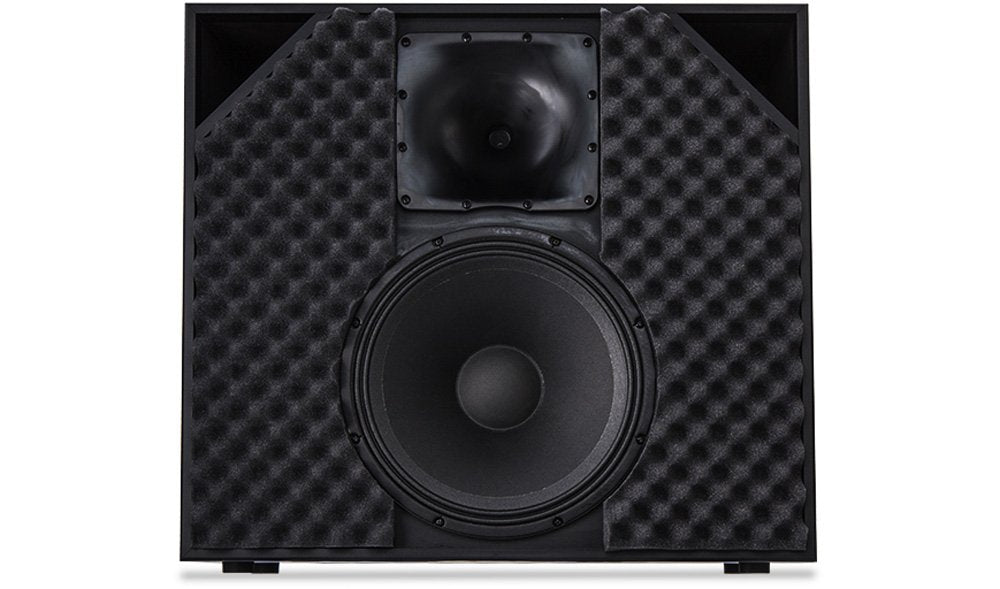

The Q-SYS SC-1150 is a high-quality, two-way screen channel loudspeaker specifically designed for small cinema environments. As part of the DCS Digital Cinema Series, it delivers exceptional audio performance for theaters with a distance of up to 45 feet (14 meters) from the screen to the last row of seating. Its compact, single-enclosure design simplifies installation and requires less than 12 inches (305 mm) of space behind the screen, making it an ideal solution for venues with limited space.

The Key Features of the Q-SYS SC-1150:

• Optimized for Small Cinemas: Designed for auditoriums up to 45 feet (14 meters) in length, ensuring optimal sound coverage.
• Compact Single-Enclosure Design: Combines both low and high-frequency drivers in one enclosure, simplifying installation and reducing space requirements.
• Passive Crossover Network: Requires only one amplifier channel, streamlining system setup and reducing equipment costs.
• 90° Axisymmetric Horn: Provides uniform sound coverage across the seating area, enhancing the audience's listening experience.
• High-Performance Drivers: Equipped with a 15-inch (380 mm) woofer featuring a 3-inch (76 mm) voice coil and a 1.75-inch (44 mm) voice coil high-frequency compression driver for clear and powerful audio reproduction.

The Detailed Specifications for the Q-SYS SC-1150:

• Rated Coverage Angle (-6 dB): 90° Axisymmetric
• Frequency Range (-10 dB): 43 Hz to 19 kHz
• Rated Noise Power: 400 W
• Sensitivity (2.83 V at 1 m): 96 dB
• Maximum Continuous SPL: 122 dB
• Maximum Peak SPL: 128 dB
• Rated Impedance: 8Ω
• Maximum Recommended Amplifier Power: 600 W
• Low-Frequency Transducer: 15-inch (380 mm) woofer with 3-inch (76 mm) voice coil
• High-Frequency Transducer: Compression driver with 1.75-inch (44 mm) voice coil
• Enclosure Material: MDF with non-reflective vinyl wrap
• Dimensions (H × W × D): 27.2 × 30 × 11.7 inches (690 × 762 × 297 mm)
• Net Weight: 71 lb (32.3 kg)
