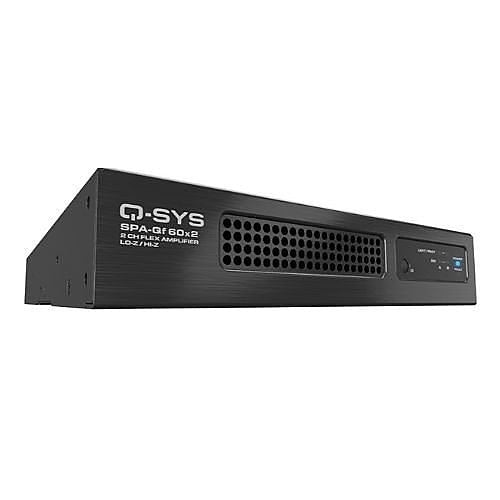

The Q-SYS SPAQF-60X2 is a high-efficiency, 2-channel amplifier designed to support both low-impedance (4/8Ω) and high-impedance (70V/100V) distributed audio systems. With 60W per channel and advanced energy-efficient Class-D amplification, this compact and lightweight unit is perfect for commercial installations such as conference rooms, retail spaces, restaurants, and educational facilities. The SPAQF-60X2 seamlessly integrates into Q-SYS ecosystems, ensuring optimal performance, monitoring, and remote control.

The Key Features of the Q-SYS SPAQF-60X2:

• Flexible Power Output: 60W per channel for low-impedance (4Ω/8Ω) or high-impedance (70V/100V) systems.
• Class-D Amplification: High-efficiency and low-heat operation for reliable performance.
• Compact & Lightweight: Space-saving half-rack design ideal for rack-mounted or surface installations.
• Q-SYS Integration: Native compatibility with Q-SYS Platform for seamless control, monitoring, and automation.
• Energy-Efficient Mode: Auto-standby feature reduces power consumption when no signal is detected.
• Versatile Connectivity: Balanced and unbalanced inputs for flexible system configurations.
• Reliable Protection Circuitry: Safeguards against overcurrent, overtemperature, and short circuits.

The Detailed Specifications for the Q-SYS SPAQF-60X2:

• Amplifier Type: 2-channel Class-D
• Power Output: 60W per channel at 4Ω, 8Ω, 70V, or 100V
• Frequency Response: 20 Hz – 20 kHz (+0/-1 dB)
• Total Harmonic Distortion (THD): < 0.1% at full rated output
• Signal-to-Noise Ratio: > 100 dB (A-weighted)
• Input Sensitivity: 1.2V (+4 dBu) for full output

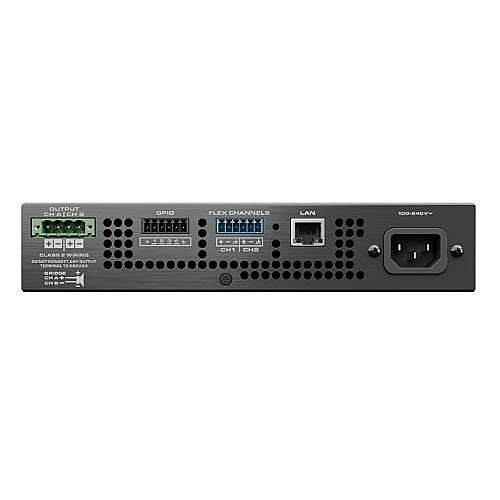

• Input Connections: Balanced Euroblock, unbalanced RCA
• Output Connections: Euroblock terminals
• Cooling: Convection-cooled, fanless operation
• Power Supply: Auto-sensing 100V–240V AC, 50/60 Hz
• Standby Power Consumption: < 1W in auto-standby mode
• Dimensions: Half-rack width, 1U height
• Weight: Approximately 2.5 kg (5.5 lbs)
• Certifications: CE, UL, FCC Class B
