Q-SYS SPAQF-60X4 compact 4-channel amplifier with 60W per channel, network integration, and energy-efficient Class-D design for commercial AV systems.

Q-SYS SPAQF-60X4 4-Channel Amplifier | 60W Per Channel

by Q-SYS
Availability:
In stock 3-5 days
$2,574.63 - $2,574.63
$2,574.63
$2,574.63 - $2,574.63
$2,574.63

SKU: SPAQF-60X4

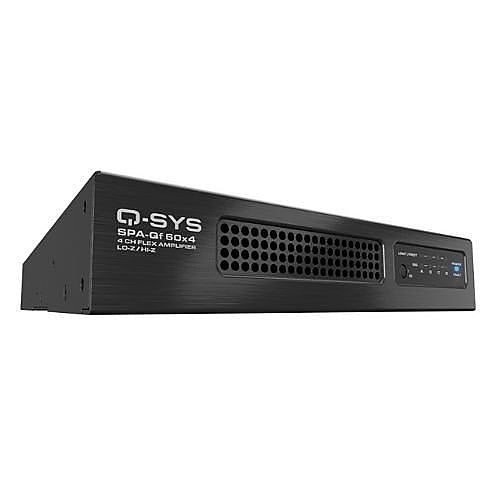

The Q-SYS SPAQF-60X4 is a high-performance, compact 4-channel amplifier designed for commercial audio applications. Featuring 60 watts per channel, this amplifier is engineered to deliver high-quality audio while maintaining energy efficiency with its Class-D power design. Integrated seamlessly into the Q-SYS Ecosystem, the SPAQF-60X4 provides advanced network-controlled DSP, flexible bridging configurations, and intelligent power management, making it an ideal solution for small to mid-sized AV installations.

The Key Features of the Q-SYS SPAQF-60X4:

  • 4-Channel Amplification – Delivers 60W per channel at 4Ω or 8Ω, supporting versatile audio setups.
  • Bridging Capability – Channels can be bridged for higher power output where needed.
  • Energy-Efficient Class-D Design – Reduces heat generation and power consumption.
  • Q-SYS Ecosystem Integration – Enables remote monitoring, control, and configuration via the Q-SYS platform.
  • Flexible Connectivity – Supports Low-Z and High-Z speaker configurations for adaptable installations.
  • Compact & Rack-Mountable – Space-saving half-rack width with an included rack-mounting kit.
  • Smart Power Management – Intelligent standby mode minimizes power usage when idle.
  • Reliable Performance – Engineered for continuous 24/7 operation in commercial environments.

The Detailed Specifications for the Q-SYS SPAQF-60X4:

General Specifications:

  • Model: SPAQF-60X4
  • Channels: 4
  • Power Output: 60W per channel (4Ω/8Ω), bridgeable
  • Amplifier Class: Class-D
  • Frequency Response: 20 Hz – 20 kHz
  • Signal-to-Noise Ratio (SNR): > 100 dB
  • Total Harmonic Distortion (THD): < 0.1%

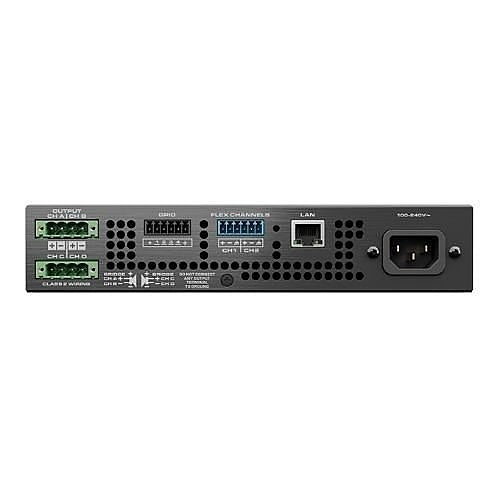

Connectivity & Control:

  • Inputs: 4 x Phoenix-style balanced audio inputs
  • Outputs: 4 x Phoenix-style speaker outputs
  • Network Control: Q-SYS platform integration via RJ-45 (Ethernet)
  • Bridging Mode: Yes (channels 1+2, 3+4)
  • Standby Mode: Automatic power-saving functionality

Physical & Environmental:

  • Dimensions: 1RU half-rack width
  • Weight: Approx. 6 lbs (2.7 kg)
  • Cooling: Passive, fanless design for silent operation
  • Mounting: Rack-mountable with included hardware
  • Power Supply: Universal 100-240V AC
