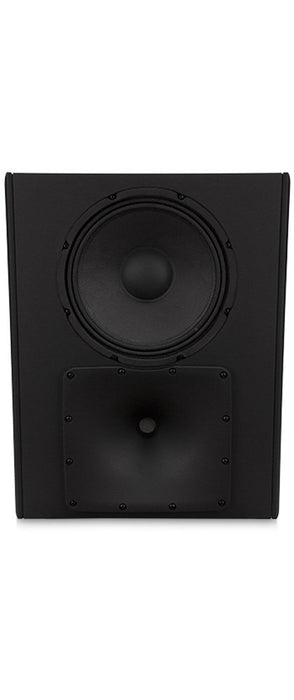

The Q-SYS SR-1020 is a high-performance 10" 2-way cinema surround loudspeaker designed to deliver exceptional audio clarity and immersive surround sound for professional cinema applications. Built for high-powered, dynamic sound reproduction, the SR-1020 ensures smooth frequency response, excellent speech intelligibility, and robust low-frequency extension. Its controlled dispersion pattern allows for optimal coverage, making it ideal for small to medium-sized theaters. The speaker’s versatile mounting options and durable construction make it an excellent choice for modern cinema installations requiring reliable and consistent audio performance.

The Key Features of the Q-SYS SR-1020:

• High-Quality Audio Performance – 10" low-frequency driver and 1" compression driver deliver clear, full-range sound.
• Controlled Dispersion Pattern – Provides uniform coverage for optimal surround sound effects.
• Durable & Reliable Build – Rugged enclosure ensures long-lasting performance in cinema environments.
• Flexible Mounting Options – Supports wall or ceiling installation with industry-standard mounting brackets.
• Optimized for Cinema Applications – Designed for theaters requiring high-performance surround sound.

The Detailed Specifications for the Q-SYS SR-1020:

• Speaker Type: 2-Way Cinema Surround Loudspeaker
• Low-Frequency Driver: 10-inch woofer
• High-Frequency Driver: 1-inch compression driver
• Frequency Response: 65 Hz – 20 kHz
• Nominal Impedance: 8 ohms
• Sensitivity: 95 dB SPL (1W @ 1m)
• Power Handling: 250W continuous / 1000W peak
• Dispersion Pattern: 100° x 100°
• Enclosure Material: Rugged MDF with a black textured finish
• Mounting Options: Multiple mounting points compatible with standard cinema brackets
• Dimensions (H x W x D): 18.5" x 11.8" x 10.2" (470mm x 300mm x 260mm)
• Weight: 25 lbs (11.3 kg)
