Q-SYS SVS4-2U Seervision server for enhanced two-camera processing, featuring AI-driven presenter tracking and integration with Q-SYS NC Series cameras

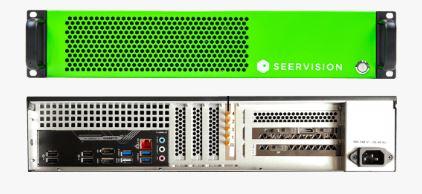

Q-SYS SVS4-2U Seervision Two-Camera Enhanced Processing Server

by Q-SYS
Availability:
In stock 3-5 days
$13,656.72 - $13,656.72
$13,656.72
$13,656.72 - $13,656.72
$13,656.72

SKU: SVS4-2U

The Q-SYS SVS4-2U is a high-performance Seervision server designed to enhance video production capabilities by integrating advanced AI-driven presenter tracking within the Q-SYS ecosystem. Supporting up to two Q-SYS NC Series network cameras, it automates camera movements to follow presenters dynamically, ensuring engaging and professional video presentations. This server is ideal for various applications, including classrooms, lecture halls, boardrooms, and divisible rooms, where seamless video tracking enhances the overall experience.

The Key Features of the Q-SYS SVS4-2U:

  • AI-Driven Presenter Tracking: Utilizes advanced computer vision to automatically track presenters, ensuring they remain in focus during presentations.
  • Integration with Q-SYS NC Series Cameras: Seamlessly integrates with Q-SYS NC-12x80, NC-20x60, and NC-110 network cameras for versatile video capture options.
  • Support for Multiple Cameras: Manages up to two cameras simultaneously, allowing for dynamic switching and comprehensive coverage.
  • In-Room Automation: Leverages the Q-SYS Control engine to automate in-room devices and events based on presenter movements, enhancing the overall AV experience.
  • Robust Hardware Configuration: Equipped with high-performance components, including an Intel i7-12700 CPU and Nvidia RTX 3080 GPU, ensuring smooth and efficient operation.

The Detailed Specifications for the Q-SYS SVS4-2U:

Supported Cameras: Q-SYS NC-12x80 & NC-20x60 (presenter tracking or static shots), NC-110 (wide-angle or static shots)

Maximum Number of Cameras: 2 (1 dedicated presenter tracking camera + 1 conductor camera)

Processor (CPU): Intel i7-12700 (12th generation)

Graphics Processing Unit (GPU): Nvidia RTX 3080

Memory (RAM): 32GB DDR4

Storage: 500GB SSD

Power Supply: 600W

Video Capture Card: Blackmagic DeckLink Duo 2 Mini

Dimensions (W x D x H): 17.72 in x 16.93 in x 3.54 in (45 cm x 43 cm x 9 cm)

Operating Temperature Range: 0°C to 25°C (32°F to 77°F)

Operating Humidity Range: 5% to 90% RH non-condensing

Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)

Storage Humidity Range: 5% to 90% RH non-condensing

Power Consumption:

  • On Standby: 140W (478 BTU/hr)
  • 1x Camera Tracking: 385W (1314 BTU/hr)
  • 2x Camera Tracking: 430W (1467 BTU/hr)

Fan Noise (dB SPL):

  • Ambient: 16.3 dB
  • System Idle: 32.0 dB
  • 1x Camera Tracking: 36.3 dB
  • 2x Camera Tracking: 38.3 dB
