Q-SYS SYNAPSE-D16MIO-TB: 16-Channel Dante™/AES67 Networked Audio Interface
SKU: SYNAPSE-D16MIO-TB
The Q-SYS SYNAPSE-D16MIO-TB is a high-performance, rack-mountable networked audio interface designed to seamlessly integrate into modern audio-visual systems. Supporting both Dante™ and AES67 protocols, this interface ensures compatibility across various networked audio environments. Equipped with 16 channels of studio-grade microphone preamplifiers, each offering up to 51 dB of digitally controlled gain, the D16MIO-TB delivers exceptional audio quality for both live and studio applications. The device also features balanced line-level outputs with precise digital attenuation control, making it a versatile solution for professionals seeking reliable and flexible audio interfacing.
The Key Features of the Q-SYS SYNAPSE-D16MIO-TB:
- 16 Studio-Grade Mic Preamps: Provides high-quality amplification with up to 51 dB of digitally controlled gain in 3 dB steps.
- Dante™/AES67 Interoperability: Ensures seamless integration into diverse networked audio systems.

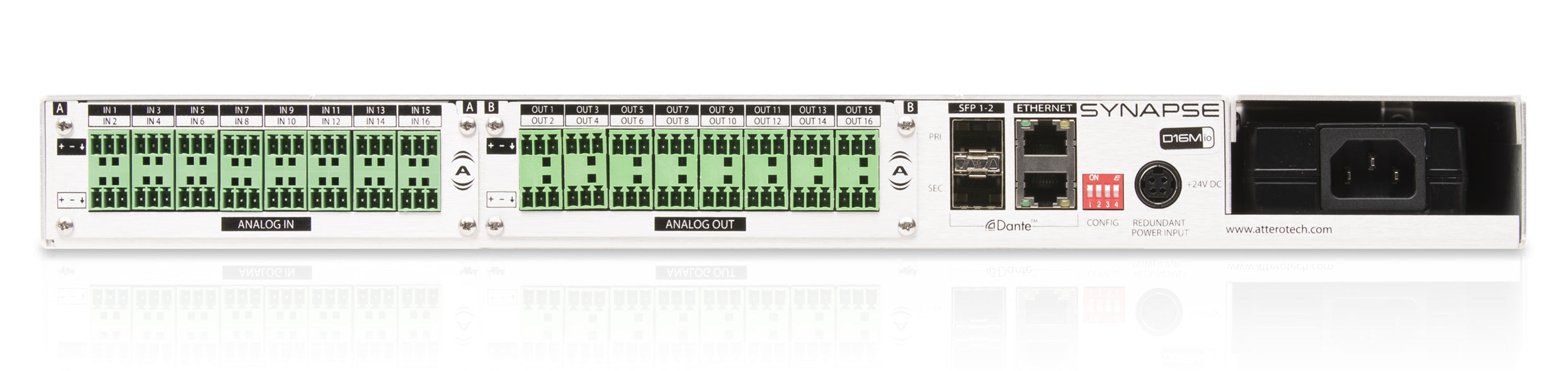

- Flexible Connectivity: Offers 16 balanced mic/line level inputs and 16 balanced line-level outputs, utilizing 3-pin depluggable terminal blocks for ease of installation.

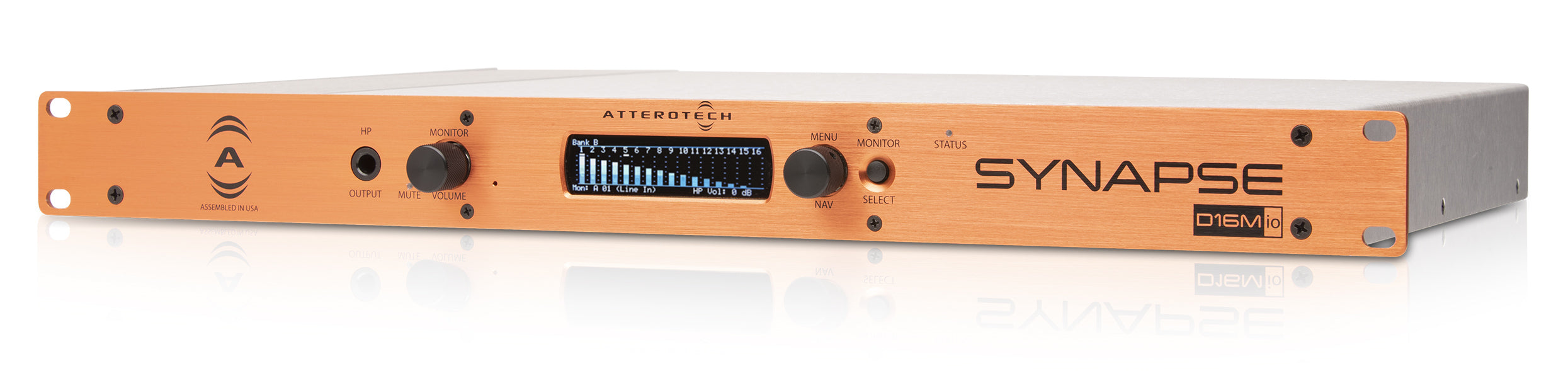

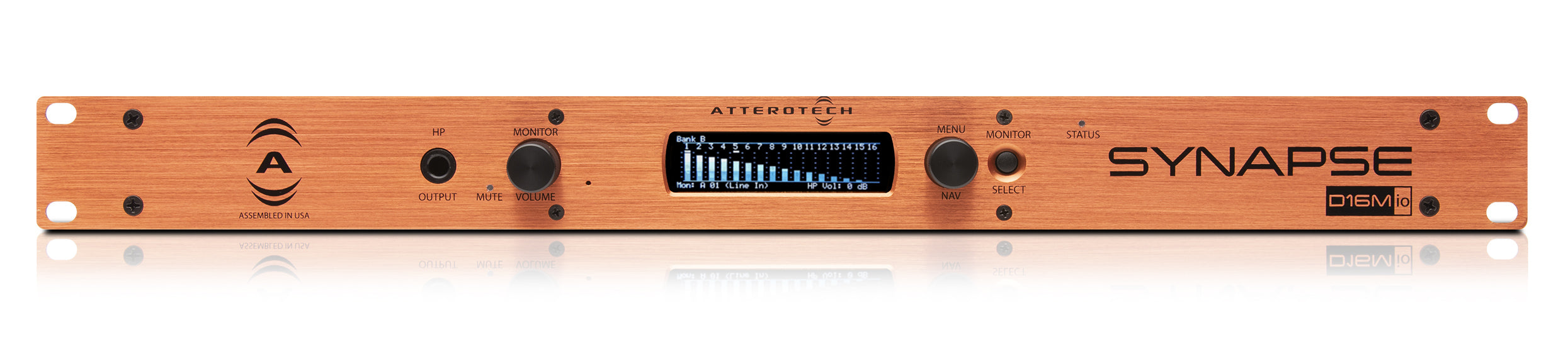

- Front Panel Control: Features an OLED display and controls for quick adjustments of mic preamp gain, phantom power, and input sensitivity.
- Redundant Networking: Includes dual Gigabit Ethernet ports (RJ-45) and SFP slots, supporting both copper and fiber connections for network redundancy.
- Headphone Monitoring: Integrated headphone output with volume control and source selection for real-time audio monitoring.
- Q-SYS Integration: Compatible with Q-SYS Reflect monitoring and management solutions, facilitating streamlined system integration.
The Detailed Specifications for the Q-SYS SYNAPSE-D16MIO-TB:
Mic/Line Inputs (16 Channels):
- Maximum Input Level: -43 dBu (max mic gain); +24 dBu (pad active – line mode)
- Input Impedance: 2 kΩ minimum (mic mode); 10 kΩ (line mode)
- Equivalent Input Noise (EIN): 125 dB @ max gain
- Dynamic Range: ≥105 dB (pad on)
- Total Harmonic Distortion + Noise (THD+N): ≤0.005%
- Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
- Input Type: 3-pin depluggable terminal block
Analog Outputs (16 Channels):
- Maximum Output Level: +24 dBu
- Output Impedance: 200 Ω
- Dynamic Range: ≥110 dB
- THD+N: ≤0.05%
- Output Type: 3.8 mm terminal blocks
Headphone Output:
- Connector: 1/4-inch TRS jack
- Minimum Load: 32 Ω
- Controls: Mute and volume encoder
Audio Networking:
- Protocol Support: Dante™ with AES67 support
- Channel Count: 16 Dante RX, 16 Dante TX
- Ports: 2 Gigabit Ethernet on RJ-45; 2 Gigabit SFP slots
- Sample Rates: 16/24-bit, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
General:
- Dimensions (H x W x D): 1.75 x 19 x 12.5 inches (1 RU form factor)
- Weight: 6 lbs (2.72 kg)
- Operating Temperature: 0 to 40°C
- Regulatory Compliance: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55032 Class A and EN55024 Class A)
