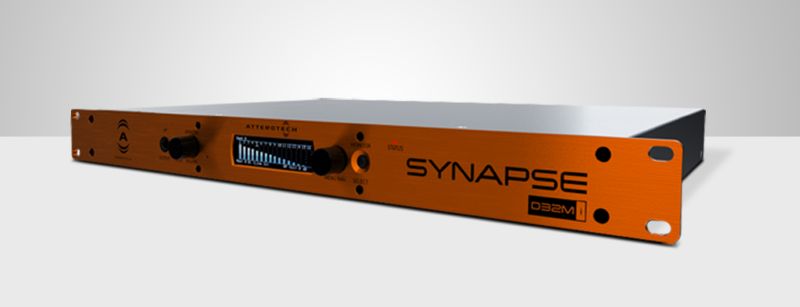

The Q-SYS SYNAPSE-D32MI-TB is a high-performance, high-channel density networked audio interface designed to meet the demands of various commercial audio connectivity applications. Supporting both Dante™ and AES67 interoperability, it features 32 studio-grade mic/line preamps, providing exceptional audio quality and flexibility. The front panel offers quick access to gain, mute, and phantom power controls, along with a headphone jack for local input monitoring and Dante™ confidence checks.

The Key Features of the Q-SYS SYNAPSE-D32MI-TB:

• 32 Studio-Grade Mic/Line Preamps: Each preamp offers line-level capabilities, ensuring high-quality audio input for various applications.
• Front Panel Network Audio Level Control: Allows for immediate adjustments to gain, mute, and phantom power settings, enhancing user Control and convenience.
• High-Performance Analog-to-Digital Conversion: Utilizes terminal block connectors to maintain signal integrity during conversion.
• Software-Selectable Pad: Configurable for professional (+4 dBu) or consumer (-10 dBV) input levels for each 16-channel input bank, offering adaptability to different audio sources.
• Q-SYS Control Plugin: Provides seamless integration into Q-SYS designs without the need for additional programming, streamlining system setup.

The Detailed Specifications for the Q-SYS SYNAPSE-D32MI-TB:

Mic/Line Inputs:

• Maximum Input Level: +24 dBu (pad active - Line mode)
• Input Impedance: 2k Ω (mic) | 10k Ω (line)

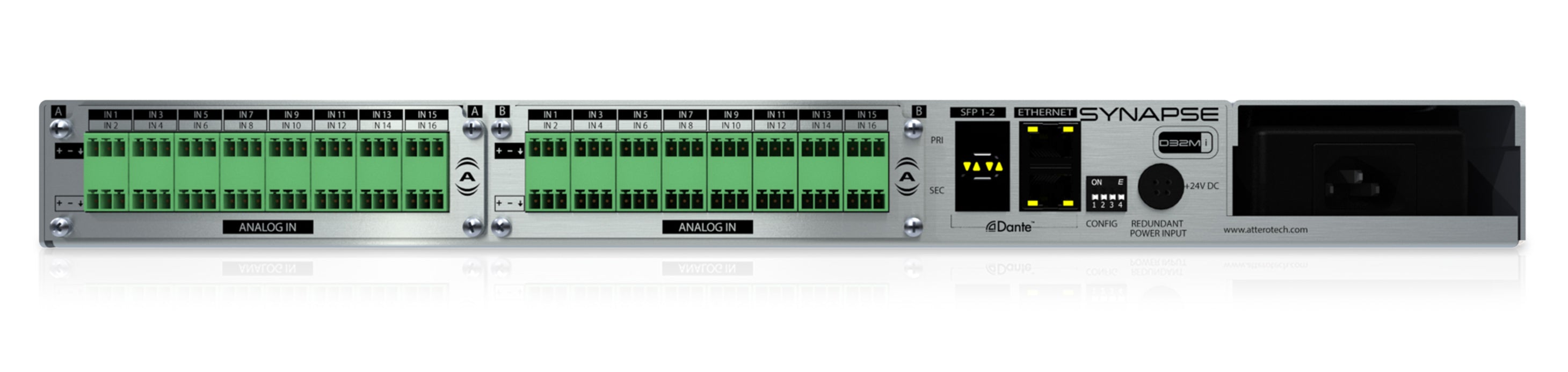

• Input Type: 3-pin depluggable terminal block

Analog Outputs:

• Maximum Output Level: +24 dBu
• Output Impedance: 200 Ω

Headphone Output:

• Connector: 1/4 in TRS jack
• Controls: Mute / volume encoder
• Load: 32 Ω minimum

Audio Networking:

• Protocol Support: Dante™ with AES67 support
• Channel Count: 32 Dante RX, 2 Dante TX
• Modes: Switched or Redundant mode
• Ports: 2 - Gb copper on RJ-45, 2 - Gb SFP

General:

• Dimensions (H x W x D): 1.75 x 19 x 12.5 in (44.5 x 482.6 x 317.5 mm)
• Weight: 6 lb (2.72 kg)
